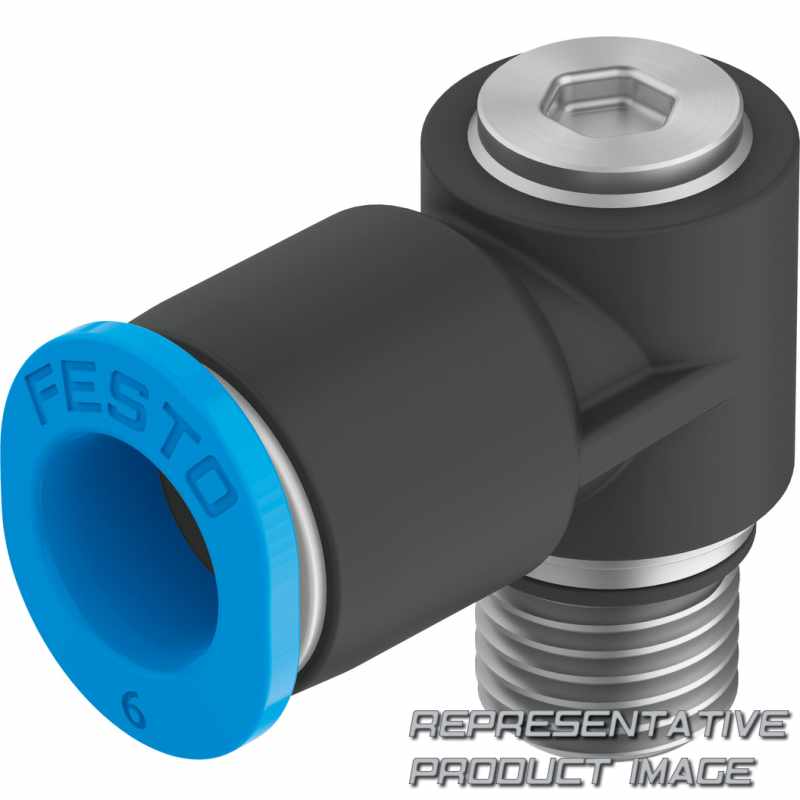

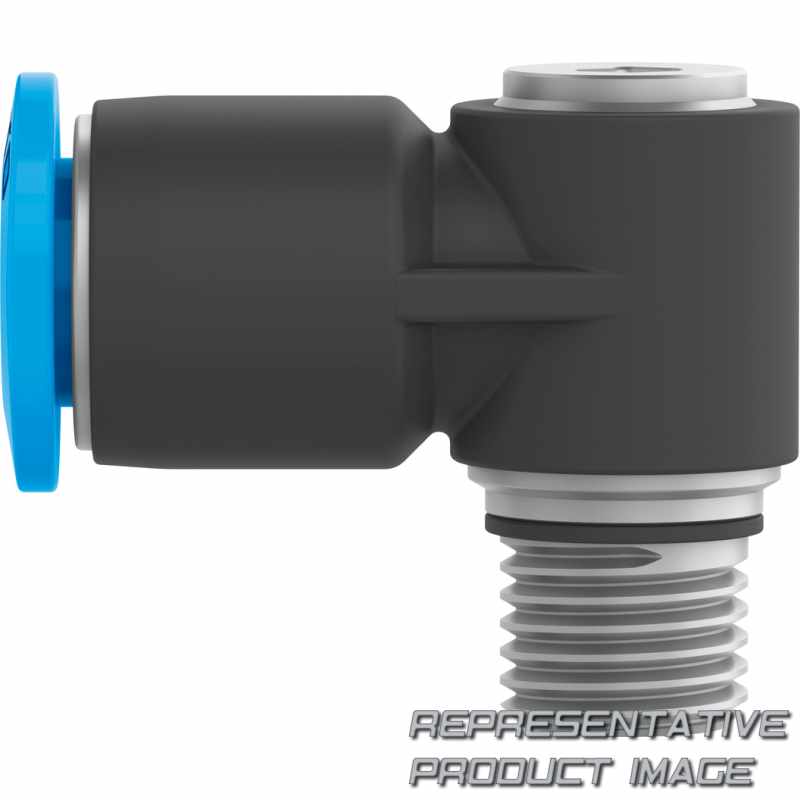

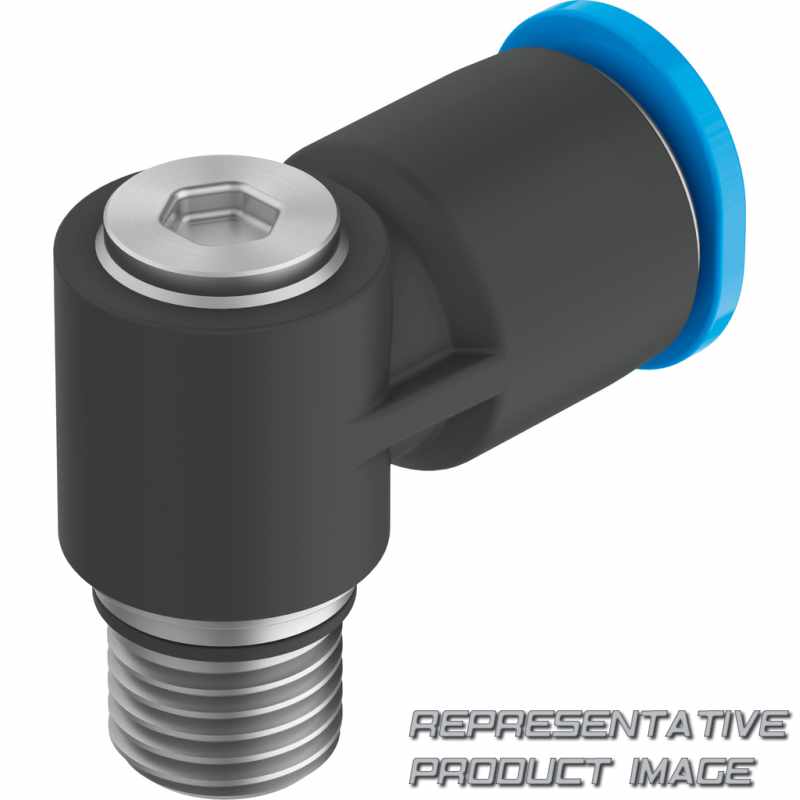

FESTO 130833 push-in l-fitting

Name: 130833 FESTO
Brand: FESTO
SKU: 700767-en-gbp
Price: 4.72 GBP
Availability: InStock

QSMLV-M7-6-I

£4.72 ~~£5.31~~ -11%

11 pcs. with 1 to 3 days delivery to United States

Specifications

Material tubing clamp component		High-alloy stainless steel
Material release ring		POM
Material housing		PBT
Colour of release ring		Blue
Pneumatic connection, port 1		Male thread M7
Tolerance for nominal tightening torque		± 20%
Ambient temperature		-10 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible
Maritime classification		See certificate
Operating pressure complete temperature range		-0,95 bar ... 6 bar
Size of pack		10
Type of seal on screw-in stud		Sealing ring
Size		Mini

Material tubing seal		NBR
Material hollow bolt		Nickel-plated brass
Note on materials		RoHS-compliant
Pneumatic connection, port 2		For tubing outside diameter of 6 mm
Product weight		6,2 g
Nominal torque		3,35 Nm
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Temperature-dependent operating pressure		-0,95 bar ... 14 bar
Design		Push-pull principle
Mounting position		optional
Nominal size		1,8 mm
