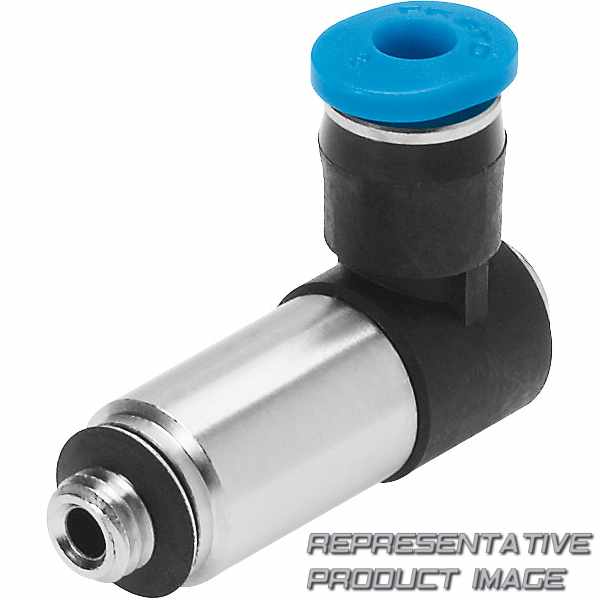

FESTO 130836 push-in l-fitting, long

Name: 130836 FESTO
Brand: FESTO
SKU: 701521-en-gbp
Price: 5.83 GBP
Availability: InStock

QSMLLV-M7-4-I

£5.83 ~~£6.54~~ -10%

50+ pcs. with 1 to 3 days delivery to United States

Specifications

Material tubing clamp component		High-alloy stainless steel
Material release ring		POM
Material housing		PBT
Colour of release ring		Blue
Pneumatic connection, port 1		Male thread M7
Tolerance for nominal tightening torque		± 20%
Ambient temperature		-10 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible
Maritime classification		See certificate
Operating pressure complete temperature range		-0,95 bar ... 6 bar
Size of pack		10
Type of seal on screw-in stud		Sealing ring
Size		Mini

Material tubing seal		NBR
Material hollow bolt		Nickel-plated brass
Note on materials		RoHS-compliant
Pneumatic connection, port 2		For tubing outside diameter of 4 mm
Product weight		14 g
Nominal torque		3,35 Nm
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Temperature-dependent operating pressure		-0,95 bar ... 14 bar
Design		Push-pull principle
Mounting position		optional
Nominal size		1,9 mm
