| Material housing | Wrought aluminium alloy | ||
| Material piston slide | Wrought aluminium alloy | ||
| Product weight | 5.900 g | ||
| Suitable for use with food | See supplementary material information | ||
| CE mark (see declaration of conformity) | In accordance with EU Pressure Equipment Directive | ||
| Media temperature | 5 °C ... 50 °C | ||
| Note on materials | RoHS-compliant | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Operating pressure | 0 bar ... 50 bar | ||
| Symbol | 00991670 | ||
| Type of reset | Forced | ||
| Exhaust-air function | Without flow control option | ||
| Type of actuation | Manual | ||
| Nominal size DN | 54 |
| Material seals | NBR PE | ||
| Pneumatic connection, port 3 | G1/2 | ||
| Mounting position | optional | ||
| CE marking (see declaration of conformity) | to UK Pressure Equipment Regulations | ||
| Ambient temperature | 5 °C ... 50 °C | ||
| LABS (PWIS) conformity | VDMA24364 zone III | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases | ||
| Valve function | 3/2 double solenoid | ||
| Type of piloting | Direct | ||
| Actuator lock | Rotary knob with detent can be closed with accessories | ||
| Sealing principle | Soft | ||

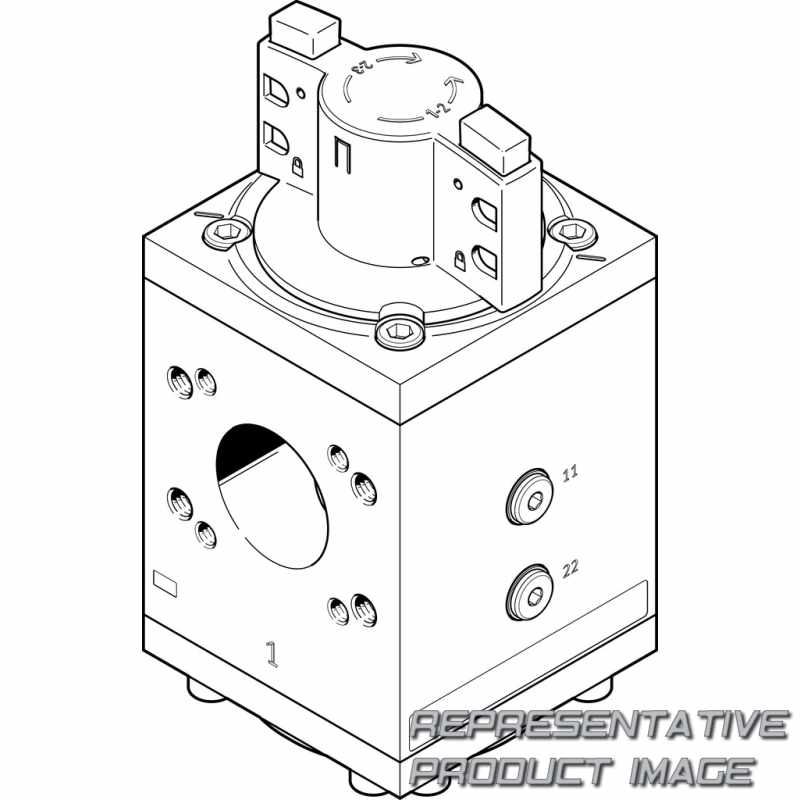

| Design | Piston gate valve | ||
| Series | L |
