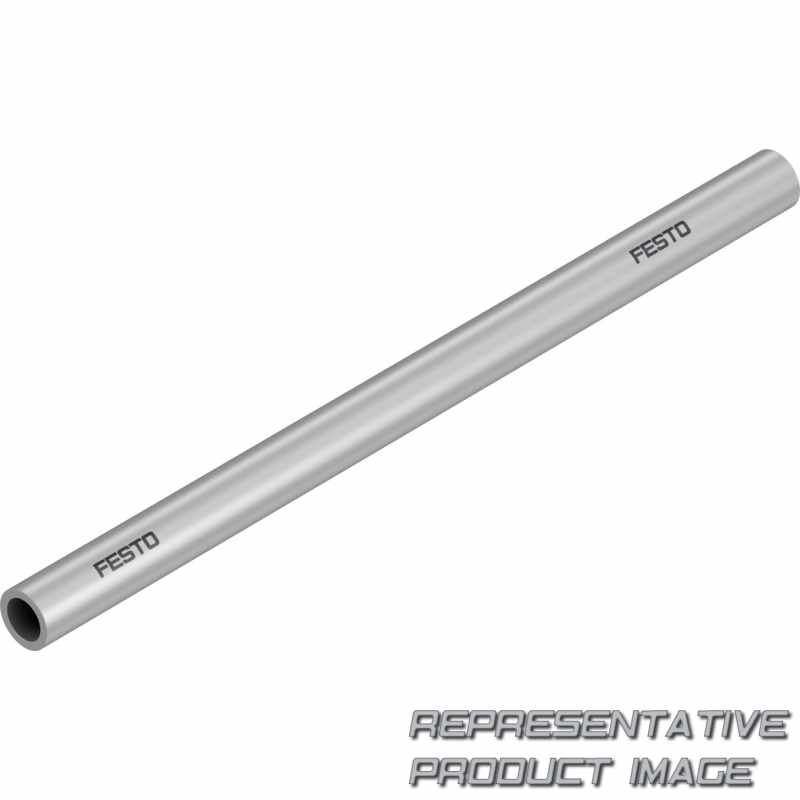

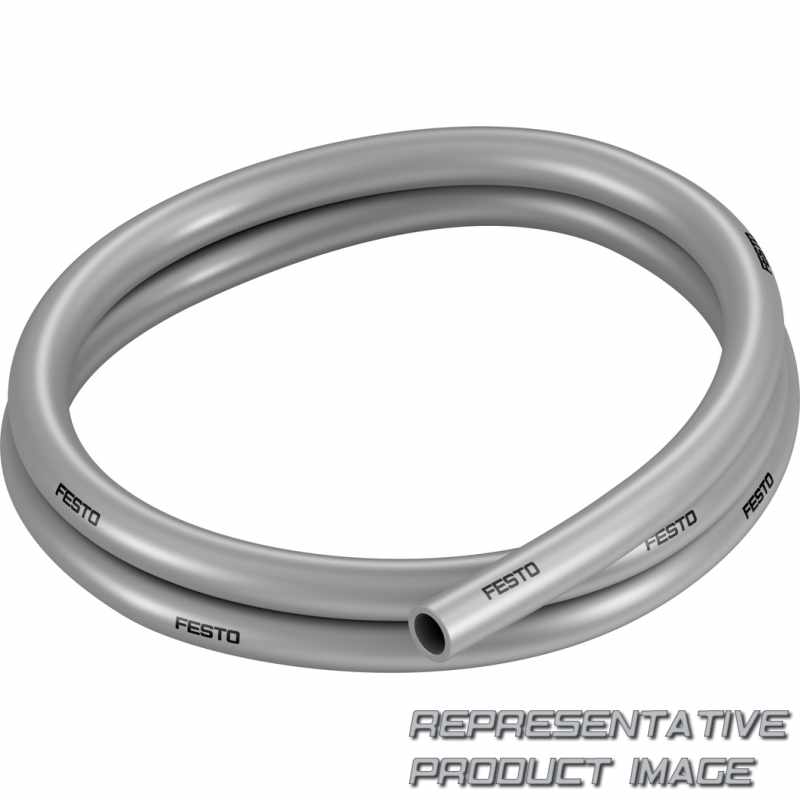

FESTO 570389 plastic tubing

Name: 570389 FESTO
Brand: FESTO
SKU: 691292-en-gbp
Price: 5.43 GBP
Availability: InStock

PUN-14X2-SI

£5.43 /m ~~£6.89~~ /m -21%

1,000 mm with 1 to 3 days delivery to United States

Specifications

Series (PUN)	Plastic tubing, polyurethane
Pipe/tubing O.D. x wall thickness (14x2)	14x2 mm
Tubing type	Standard

Colour (SI)	Silver
Packaging unit [m]	Standard

Material tubing		TPE-U(PU)
Shore hardness		D 52 +/-3
Pneumatic connection		For push-in connector outer diameter of 14 mm
Ambient temperature		-35 °C ... 60 °C
Fire test material		UL94 HB
Certificate issuing authority		B 013277 0506 00
Temperature-dependent operating pressure		-13,775 psi ... 145 psi
Min. bending radius		45 mm
Flow-relevant bending radius		84 mm

Note on materials		RoHS-compliant
Colour		Silver
Product weight according to length		0,095 kg/m
LABS (PWIS) conformity		VDMA24364-B2-L
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Approval		German Technical Control Board (TÜV)
Tubing characteristics		Suitable for energy chains
Inside diameter		9,8 mm
Outside diameter		14 mm
