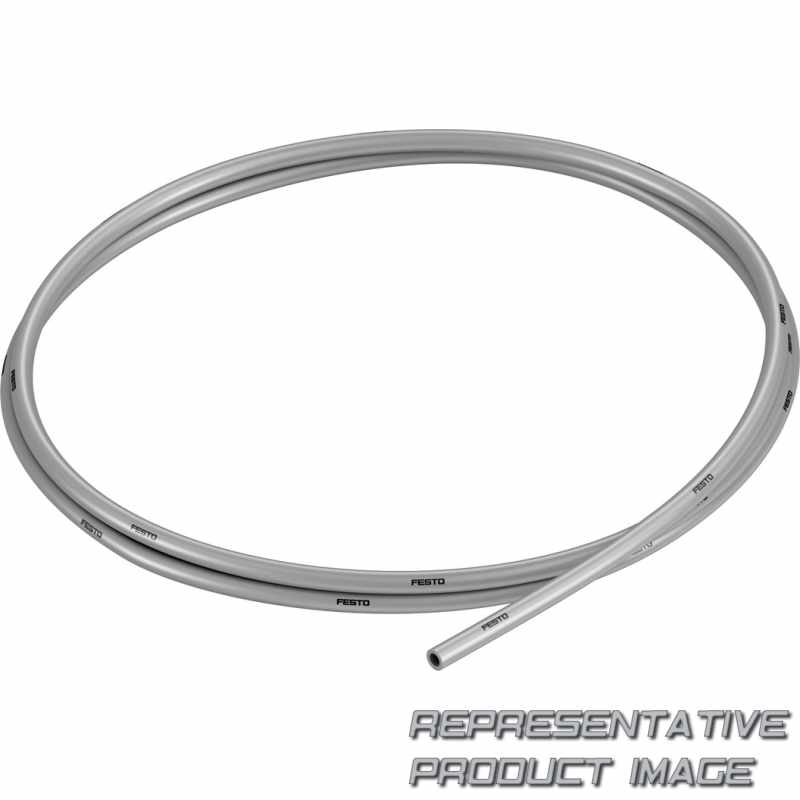

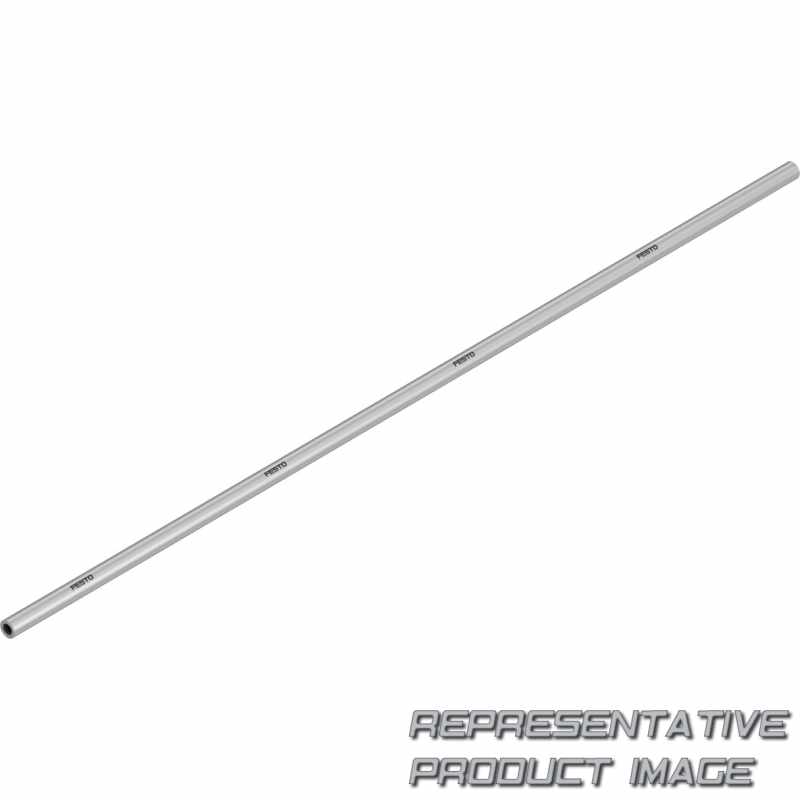

FESTO 558278 plastic tubing

Name: 558278 FESTO
Brand: FESTO
SKU: 667563-en-gbp
Price: 0.57 GBP
Availability: InStock

PUN-H-4X0,75-SI

£0.57 /m ~~£0.73~~ /m -21%

50 m with 1 to 3 days delivery to United States

Specifications

Series (PUN)	Plastic tubing, polyurethane
Alternative material characteristic (H)	Hydrolysis-resistant
Pipe/tubing O.D. x wall thickness (4x0.75)	4x0.75 mm

Material tubing		TPE-U(PU)
Shore hardness		D 52 +/-3
Pneumatic connection		For push-in connector O.D. 4 mm For barbed fitting I.D. 3 mm with union nut
Ambient temperature		-35 °C ... 60 °C
Cleanroom class		Element installed statically, no meaningful evaluation possible according to ISO 14644-1
LABS (PWIS) conformity		VDMA24364-B2-L
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Approval		German Technical Control Board (TÜV)
Tubing characteristics		Suitable for energy chains
Inside diameter		2,6 mm
Outside diameter		4 mm

Note on materials		RoHS-compliant
Colour		Silver
Product weight according to length		0,009 kg/m
Suitable for use with food		See supplementary material information
Suitability for the production of Li-ion batteries		Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Fire test material		UL94 HB
Certificate issuing authority		B 013277 0506 00
Temperature-dependent operating pressure		-13,775 psi ... 145 psi
Min. bending radius		8 mm
Flow-relevant bending radius		16 mm
