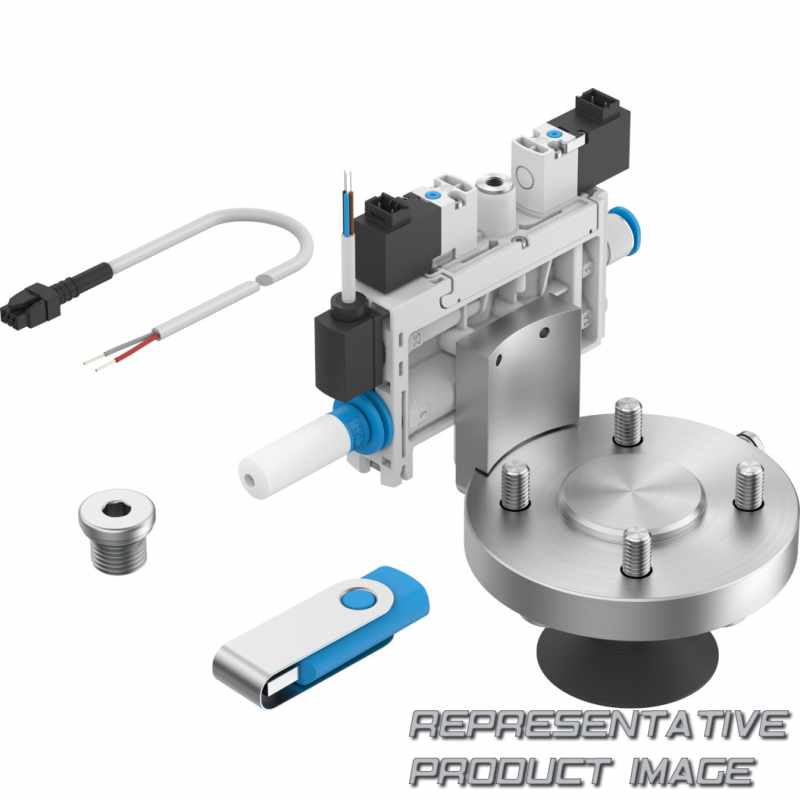

FESTO 8121043 robot kit suction gripper

Name: 8121043 FESTO
Brand: FESTO
SKU: 710534-en-gbp
Price: 734.98 GBP
Availability: SoldOut

OVEL-10-H-15-PQ-VM7-UA-C-A-V1V-H3-RA1

£734.98 ~~£1,224.96~~ -39%

Limited stock only available on quotation

Specifications

Operating Pressure	2 bar ... 7 bar
Pneumatic connection	For tubing outside diameter of 6 mm

Weight	300g

Nominal size, Laval nozzle		0,95 mm
Integrated function		Electric ejector pulse Flow control Pressure transmitter Electric on-off valve Filter Open silencer
Switching element function		N/O contact
Valve function		Closed
Operating pressure		2 bar ... 7 bar
Analogue output		0 - 10 V
Characteristic coil data		24 V DC: 1.0 W
Note on operating and pilot medium		Lubricated operation not possible
Ambient temperature		0 °C ... 50 °C
Material seals		HNBR NBR
Note on materials		RoHS-compliant
Vacuum connection		G1/4
Robot connection		Universal robots UR3/5/10 (PolyScope CB 3.8.0 or higher) UR UR3e/5e/10e/16e (SW5.0.0 and higher
Electrical connection output, cable length		2,5 m
Electrical connection output, connector system		Open end
Electrical connection output, function		Sensor
Electrical connection input, number of connections/cores		2
Electrical connection input, connection type		Cable
Pressure measuring range		-1 bar ... 0 bar
Product weight		300 g

Ejector characteristic		High vacuum
Accessories included		1x adapter plate 1x distance piece 1x Velcro® roll 1x USB memory stick with URCap 1x vacuum generator 1x suction cup with connection 2x connecting cables 5x blanking plugs 6x socket head screws
Switching function		Threshold value comparator Threshold value with fixed hysteresis
Measurement method		Piezoresistive pressure sensor
Max. vacuum		92 %
Operational voltage range DC		21,6 V ... 26,4 V
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		2 - Moderate corrosion stress
Material screws		Steel
Material sub-base		Wrought aluminium alloy
Note on vacuum connection		Optional: 4x G1/8
Pneumatic connection, port 1		For tubing outside diameter of 6 mm
Type of mounting		Via through-hole for M6 screw
Electrical connection output, number of connections/cores		3
Electrical connection output, connection type		Cable
Electrical connection input, cable length		5 m
Electrical connection input, connector system		Open end
Electrical connection input, function		Ejector pulse Vacuum generation
Operating voltage range, DC sensor		18 V ... 30 V
