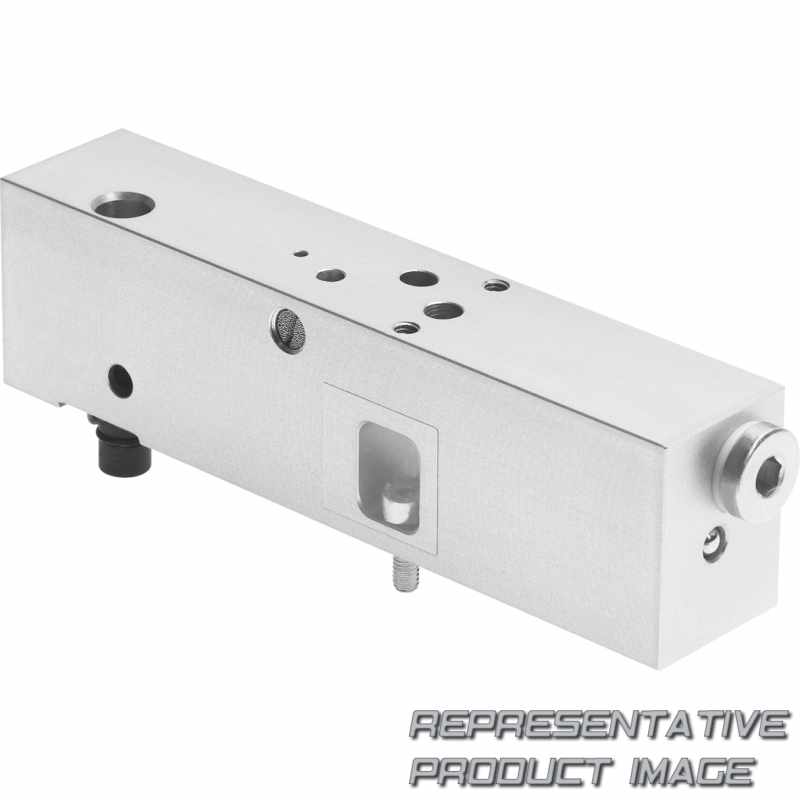

FESTO 570851 intermediate plate

Name: 570851 FESTO
Brand: FESTO
SKU: 671893-en-gbp
Price: 162.94 GBP
Availability: InStock

VABF-S4-1-S

£162.94 ~~£201.14~~ -18%

1 pcs. with 1 to 3 days delivery to United States

Specifications

Width	26 mm
Weight	295g

Material plate		Wrought aluminium alloy
Pneumatic connection, port 5		Sub-base size 26 mm to ISO 15407-2
Pneumatic connection, port 1		Sub-base size 26 mm to ISO 15407-2
Mounting with vertical stacking		On manifold sub-base On individual sub-base
Ambient temperature		-5 °C ... 50 °C
Corrosion resistance class CRC		0 - No corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Operating pressure		3 bar ... 10 bar
Mounting position		optional
Construction width		26 mm

Note on materials		RoHS-compliant
Pneumatic connection, port 4		Sub-base size 26 mm to ISO 15407-2
Pilot air port 14		Sub-base size 26 mm to ISO 15407-2
Product weight		295 g
Degree of protection		IP65 NEMA 4
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
CE mark (see declaration of conformity)		To EU Low Voltage Directive
Symbol		00992864
Based on standard		ISO 15407-2
