SKF NRT 80

Limited stock only available on quotation

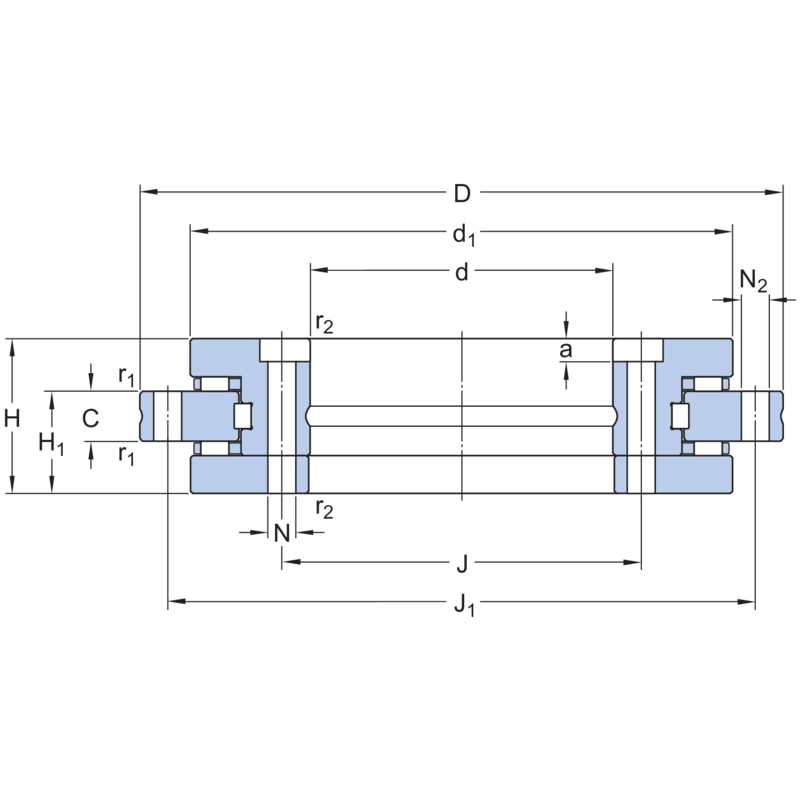

Specifications

Inner Diameter	80mm
Outer Diameter	146mm

Weight	2.30Kg

chamfer dimension	r_min	min.0.3
Inner ring (shaft washer) sinkhole depth	a	4	mm

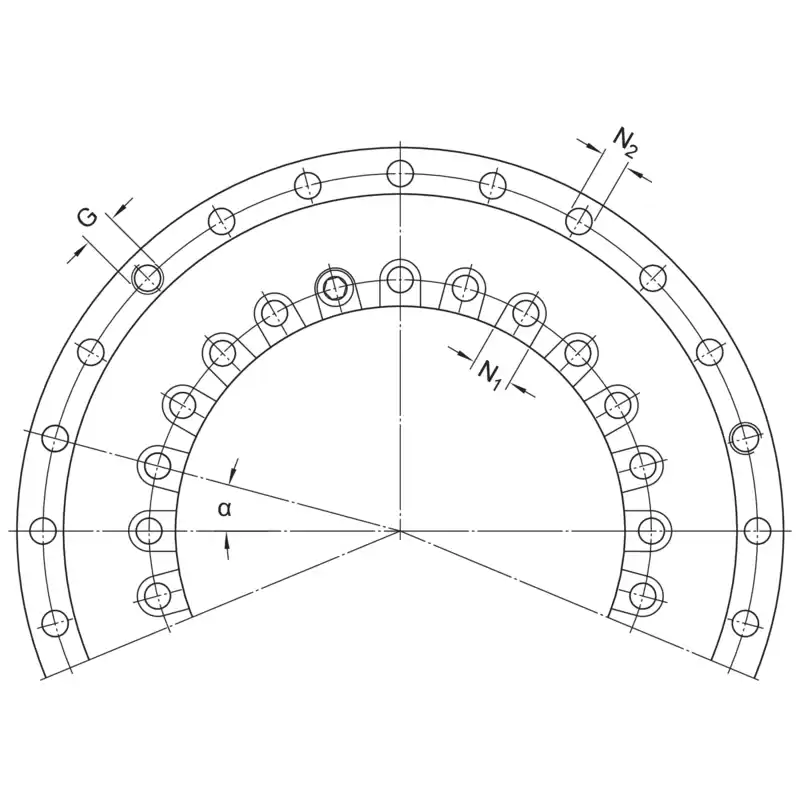

Inner ring (shaft washer) sinkhole	N₁	10	mm
Outer ring (housing washer) hole pitch circle diameter	J₁	138	mm
Distance	a_{L max}	23.35	mm
Shoulder diameter inner ring - large shoulder	d₁	130	mm
Outside diameter	d₂	146	mm

Outer ring (housing washer) chamfer dimension	r₁	min.0.3
Outer ring (housing washer) through hole	N₂	4.60	mm
Inner ring (shaft/locating washer) through hole	N	5.60	mm
Inner ring (shaft/locating washer) hole pitch circle diameter	J	92	mm
Outer ring (housing washer) width	C	12	mm
Height	H	35	mm
Bore diameter	d	80	mm
