| Material insulating sheath | PVC | ||
| Material seals | NBR | ||
| Housing colour | Black | ||
| Cable sheath colour | grey | ||
| Corrosion resistance class CRC | 1 - Low corrosion stress | ||
| Note on materials | RoHS-compliant | ||
| CE marking (see declaration of conformity) | To UK RoHS instructions | ||
| Storage temperature | -30 °C ... 80 °C | ||
| Note on degree of protection | IP40 for M12 socket In assembled state | ||
| Nominal cross section conductor | 0,5 mm² | ||
| Cable design 1 | 3 x 0.25 mm² | ||
| Cable diameter 2 | 1,75 mm | ||
| Cable diameter 1 | 3,8 mm | ||
| Bending radius 1, fixed cable installation | ≥ 11,7 mm | ||
| Cable length 2 | 1 m | ||
| Cable length | 1 m | ||
| Protective conductor connection | Not available | ||
| Current rating at 40°C | 4 A | ||
| Operational voltage range DC | 0 V ... 30 V | ||
| Electrical connection 3, number of connections/cores | 2 | ||
| Electrical connection 3, connection type | 2x single wires | ||
| Electrical connection 2, connection pattern | 00995573 | ||
| Electrical connection 2, used connections/cores | 3 | ||
| Electrical connection 2, connector system | M12x1, A-coded to EN 61076-2-101 | ||
| Electrical connection 2, connection type | Plugs | ||
| Electrical connection 2, function | IO-Link® Communication | ||
| Electrical connection 1, type of mounting | Screw-type lock with 18 mm hexagon and longitudinal knurl | ||
| Electrical connection 1, number of connections/cores | 5 | ||
| Electrical connection 1, cable outlet | Straight | ||
| Electrical connection 1, design | Round | ||
| Product weight | 72,5 g | ||
| Cable designation | Without inscription label holder | ||
| Distrubution | 1 to 2 | ||
| Based on standard | EN 61076-2-101 |
| Material electrical contact | Nickel-plated and gold-plated bronze Gold-plated brass | ||
| Material screw-type lock | Nickel-plated brass Die-cast zinc, nickel-plated | ||
| Material housing | PA TPE-U(PUR) | ||
| Material cable sheath | TPE-U(PUR) | ||
| Pollution degree | 3 | ||
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| CE mark (see declaration of conformity) | In accordance with EU RoHS Directive | ||
| Ambient temperature | -30 °C ... 80 °C | ||
| Degree of protection | IP65 IP68 IP69K | ||
| Cable design 2 | 2 x 0.5 mm² | ||
| Tolerance for cable diameter 2 | ± 0.05 mm | ||
| Tolerance for cable diameter 1 | ± 0.1 mm | ||
| Bending radius 2, fixed cable installation | ≥ 6 mm | ||
| Cable characteristic | For static applications | ||
| Cable length 1 | 1 m | ||
| Shielding | no | ||
| Immunity to surge | 0,8 kV | ||
| Nominal operating voltage DC | 24 V | ||
| Electrical connection 3, used connections/cores | 2 | ||
| Electrical connection 3, connector system | Open end | ||
| Electrical connection 3, function | Additional supply | ||
| electrical connection 2, type of mounting | Screw-type lock with 13 mm hexagon and longitudinal knurl | ||
| Electrical connection 2, number of connections/cores | 3 | ||
| Electrical connection 2, cable outlet | Straight | ||
| Electrical connection 2, design | Round | ||
| Electrical connection 1, connection pattern | 00995384 | ||
| Electrical connection 1, used connections/cores | 5 | ||
| Electrical connection 1, connector system | M12x1, A-coded to EN 61076-2-101 | ||
| Electrical connection 1, connection type | Socket | ||
| Electrical connection 1, function | Field device side | ||
| Frequency of connection | 100 | ||
| Additional functions | Additional supply for port B | ||

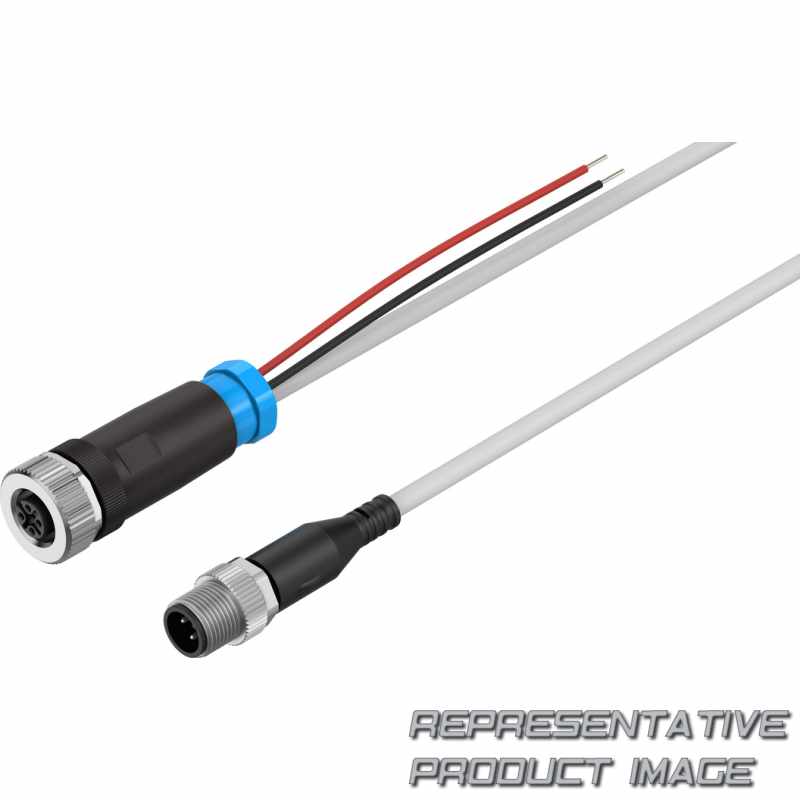

| Design | Y-distributor with cable on controller side |
