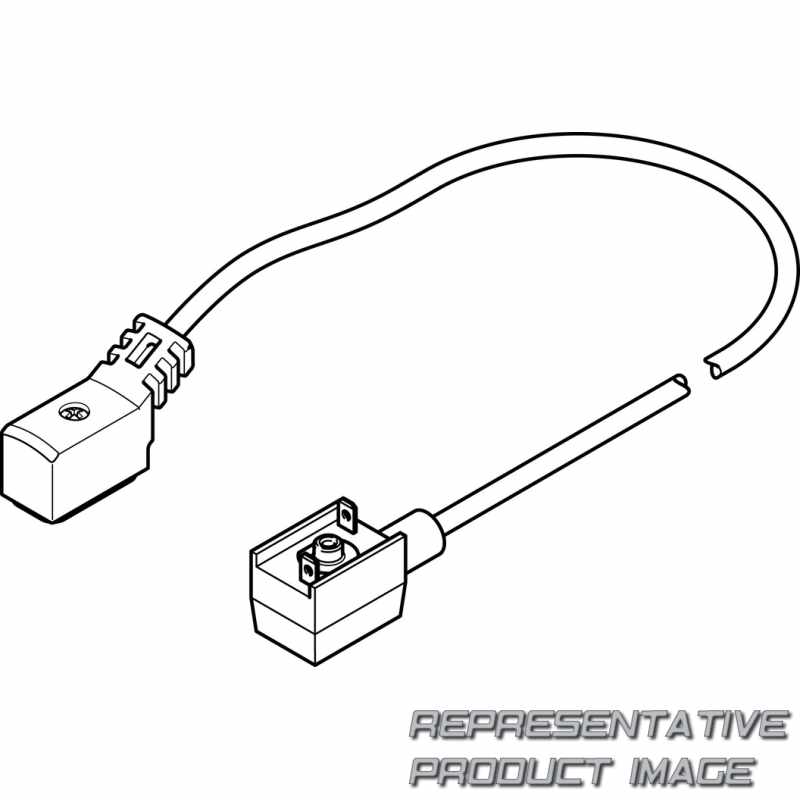

FESTO 8047681 connecting cable

Name: 8047681 FESTO
Brand: FESTO
SKU: 687036-en-gbp
Price: 25.97 GBP
Availability: InStock

NEBV-Z4WA2-E-0.2-N-Z1W2-S1

£25.97

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (NEBV)	Connecting cable for valves
Product version	Standard
Connection technology left, field device side (Z4)	Socket connection pattern ZC, metric screw
Cable outlet left (WA)	Angled 45°
Number of pins/wires on the left (2)	2
Display	None
Additional socket functions	None
Circuitry	None
Cable characteristic (E)	Suitable for energy chains

Cable design	Standard
Cable length [m] (0.2)	0.20
Cable identification (N)	Without label holder
Connection technology right, control er side (Z1)	Port pattern ZB plug, self-tapping screw
Connection technology right, controller side (Z1)	Port pattern ZB plug, self-tapping screw
Plug (W)	Angled
Number of pins/wires on the right (2)	2
Degree of protection, electrical system (S1)	IP65

Material insulating sheath		PP
Material screws		Stainless steel
Material housing		TPE-U(PU)
Material cable sheath		TPE-U(PUR)
Pollution degree		3
LABS (PWIS) conformity		VDMA24364-B2-L
CE mark (see declaration of conformity)		In accordance with EU RoHS Directive
Note on degree of protection		In assembled state
Nominal cross section conductor		0,14 mm²
Cable diameter tolerance		± 0.1 mm
Bending radius, moving cable		≥ 29 mm
Cable characteristic		Suitable for energy chains
Protective conductor connection		Not available
Immunity to surge		2,4 kV
Operational voltage range DC		0 V ... 30 V
electrical connection 2, type of mounting		On solenoid valve via self-tapping screw
Electrical connection 2, number of connections/cores		2
Electrical connection 2, cable outlet		Angled
Electrical connection 2, design		Angular
Electrical connection 1, connection pattern		00995625
Electrical connection 1, used connections/cores		2
Electrical connection 1, connector system		Plug pattern ZC, metric screw
Electrical connection 1, connection type		Socket
Electrical connection 1, function		Field device side
Frequency of connection		50

Material electrical contact		Copper alloy, tin-plated
Housing colour		Black
Cable sheath colour		grey
Corrosion resistance class CRC		3 - high corrosion stress
Note on materials		RoHS-compliant
CE marking (see declaration of conformity)		To UK RoHS instructions
Ambient temperature		-10 °C ... 50 °C
Degree of protection		IP65
Cable structure		2 x 0.14 mm²
Cable diameter		2,9 mm
Test conditions cable		Test conditions on request
Cable length		0,2 m
Reverse polarity protection		Bipolar
Nominal operating voltage DC		24 V
Electrical connection 2, connection pattern		00995712
Electrical connection 2, used connections/cores		2
Electrical connection 2, connector system		Connection pattern ZB, self-tapping screw
Electrical connection 2, connection type		Plugs
Electrical connection 2, function		Controller side
Electrical connection 1, type of mounting		On solenoid valve via M2 central screw
Electrical connection 1, number of connections/cores		2
Electrical connection 1, cable outlet		Angled
Electrical connection 1, design		Angular
Product weight		18 g
Cable designation		Without inscription label holder
