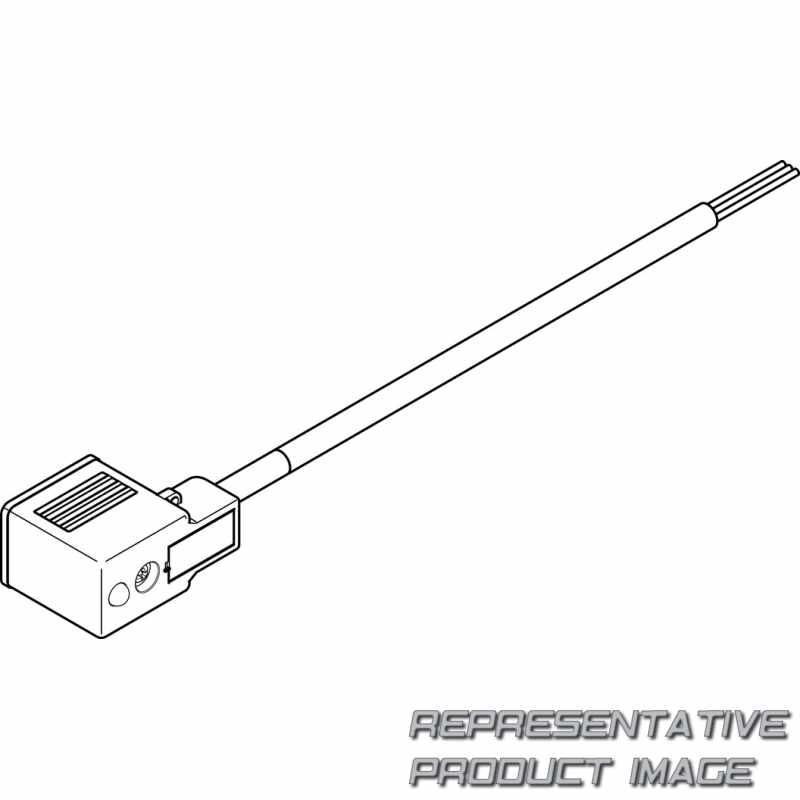

FESTO 3579468 connecting cable

Name: 3579468 FESTO
Brand: FESTO
SKU: 684253-en-gbp
Price: 12.72 GBP
Availability: InStock

NEBV-B2W3-K-0.6-N-LE3

£12.72

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (NEBV)	Connecting cable for valves
Product version	Standard
Connection technology left, field device side (B2)	Socket type B, industry standard, 11 mm
Cable outlet left (W)	Angled
Number of pins/wires on the left (3)	3
Display	None
Additional socket functions	None
Circuitry	None
Cable characteristic (K)	Standard

Cable design	Standard
Cable length [m] (0.6)	0.60
Cable identification (N)	Without label holder
Connection technology right, control er side (LE)	Open end
Connection technology right, controller side (LE)	Open end
Plug	None
Number of pins/wires on the right (3)	3
Degree of protection, electrical system	Standard

Material insulating sheath		PP
Material housing		TPE-U(PUR)
Material cable sheath		TPE-U(PUR)
Pollution degree		3
LABS (PWIS) conformity		VDMA24364 zone III
CE mark (see declaration of conformity)		To EU Low Voltage Directive In accordance with EU RoHS Directive
Ambient temperature		-25 °C ... 80 °C
Degree of protection		IP67
Cable diameter tolerance		± 0.3 mm
Test conditions cable		Test conditions on request
Cable length		0,6 m
Immunity to surge		4 kV
Nominal operating voltage AC		230 V
Nominal operating voltage DC		230 V
Electrical connection 2, used connections/cores		3
Electrical connection 2, connector system		Open end
Electrical connection 2, function		Controller side
Electrical connection 1, type of mounting		On solenoid valve via M3 central screw
Electrical connection 1, number of connections/cores		3
Electrical connection 1, cable outlet		Angled
Electrical connection 1, design		Angular
Product weight		80 g
Approval		c CSA us (OL)

Housing colour		Black
Cable sheath colour		grey
Corrosion resistance class CRC		2 - Moderate corrosion stress
Note on materials		RoHS-compliant
CE marking (see declaration of conformity)		To UK regulations for electrical equipment To UK RoHS instructions
Ambient temperature with moving cable		-25 °C ... 80 °C
Note on degree of protection		In assembled state
Cable structure		3 x 0.75 mm²
Cable diameter		5,9 mm
Cable characteristic		Standard
Protective conductor connection		Available
Current rating at 40°C		10 A
Operational voltage range AC		0 V ... 230 V
Operational voltage range DC		0 V ... 230 V
Electrical connection 2, number of connections/cores		3
Electrical connection 2, connection type		Cable
Electrical connection 1, connection pattern		00995619
Electrical connection 1, used connections/cores		3
Electrical connection 1, connector system		Plug pattern type B to industry standard, 11 mm
Electrical connection 1, connection type		Socket
Electrical connection 1, function		Field device side
Cable designation		Without inscription label holder
