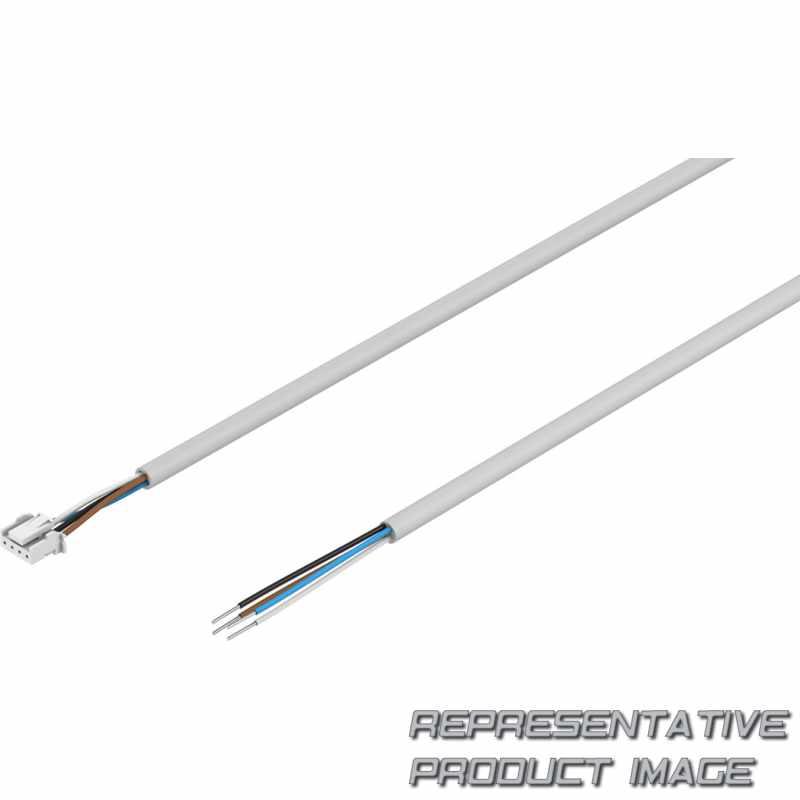

FESTO 572577 connecting cable

Name: 572577 FESTO
Brand: FESTO
SKU: 665905-en-gbp
Price: 13.91 GBP
Availability: InStock

NEBS-L1G4-K-5-LE4

£13.91

15 pcs. with 1 to 3 days delivery to United States

Specifications

Series (NEBS)	Connecting cable for sensors
Connection technology left, field device side (L1)	PCB plug connector
Cable outlet left (G)	Straight
Number of pins/wires on the left (4)	4
Cable characteristic (K)	Standard
Cable design	Standard

Cable length [m] (5)	5
Cable identification	With label holder
Connection technology right, controller side (LE)	Open end
Plug/socket	None
Number of pins/wires on the right (4)	4

Material insulating sheath		PVC
Housing colour		White
Cable sheath colour		grey
Corrosion resistance class CRC		4 - Very high corrosion stress
Note on materials		RoHS-compliant
CE marking (see declaration of conformity)		To UK RoHS instructions
Storage temperature		-20 °C ... 60 °C
Ambient temperature		-20 °C ... 60 °C
Degree of protection		IP40
Nominal cross section conductor		0,17 mm²
Cable diameter tolerance		± 0.2 mm
Bending radius, moving cable		≥ 42 mm
Test conditions cable		Test conditions on request
Cable length		5 m
Current rating at 40°C		1 A
Electrical connection 2, used connections/cores		4
Electrical connection 2, connector system		Open end
Electrical connection 2, function		Controller side
Electrical connection 1, type of mounting		Snap-in locking
Electrical connection 1, number of connections/cores		4
Electrical connection 1, cable outlet		Straight
Electrical connection 1, design		Angular
Product weight		106 g
Cable designation		With label holder

Material electrical contact		Bronze, tin-plated
Material housing		PA
Material cable sheath		PVC
Pollution degree		2
LABS (PWIS) conformity		VDMA24364 zone III
CE mark (see declaration of conformity)		In accordance with EU RoHS Directive
Ambient temperature with moving cable		-5 °C ... 60 °C
Note on degree of protection		In assembled state
Wire ends		Cut off bluntly
Cable structure		4 x 0.17 mm²
Cable diameter		4,1 mm
Bending radius, fixed cable		≥ 13 mm
Cable characteristic		Standard
Immunity to surge		0,8 kV
Operational voltage range DC		0 V ... 30 V
Electrical connection 2, number of connections/cores		4
Electrical connection 2, connection type		Cable

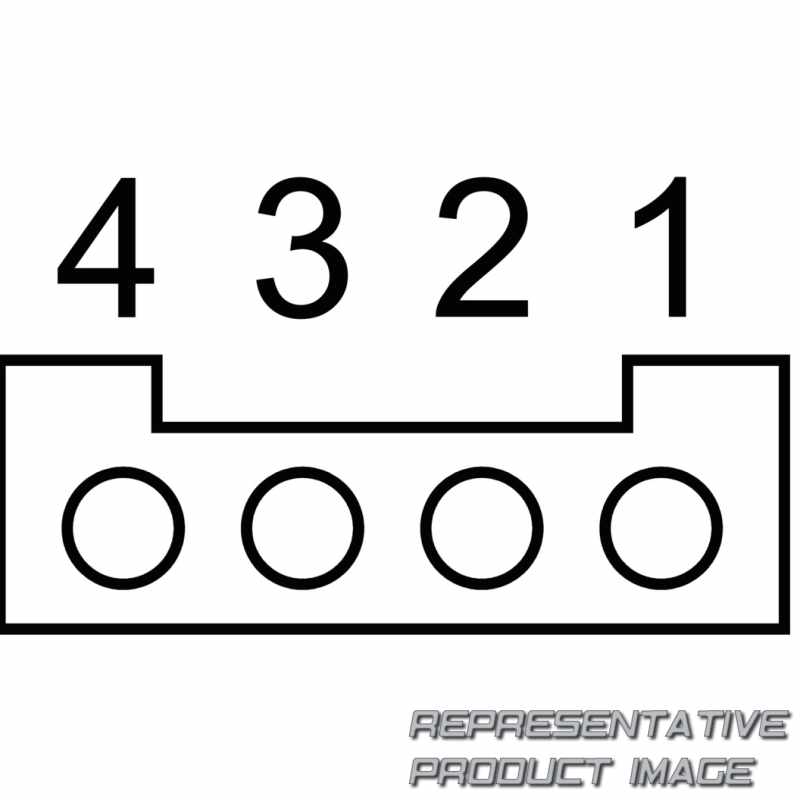

Electrical connection 1, connection pattern		00995720
Electrical connection 1, used connections/cores		4
Electrical connection 1, connector system		Connection pattern L1J
Electrical connection 1, connection type		Socket
Electrical connection 1, function		Field device side
Frequency of connection		100
