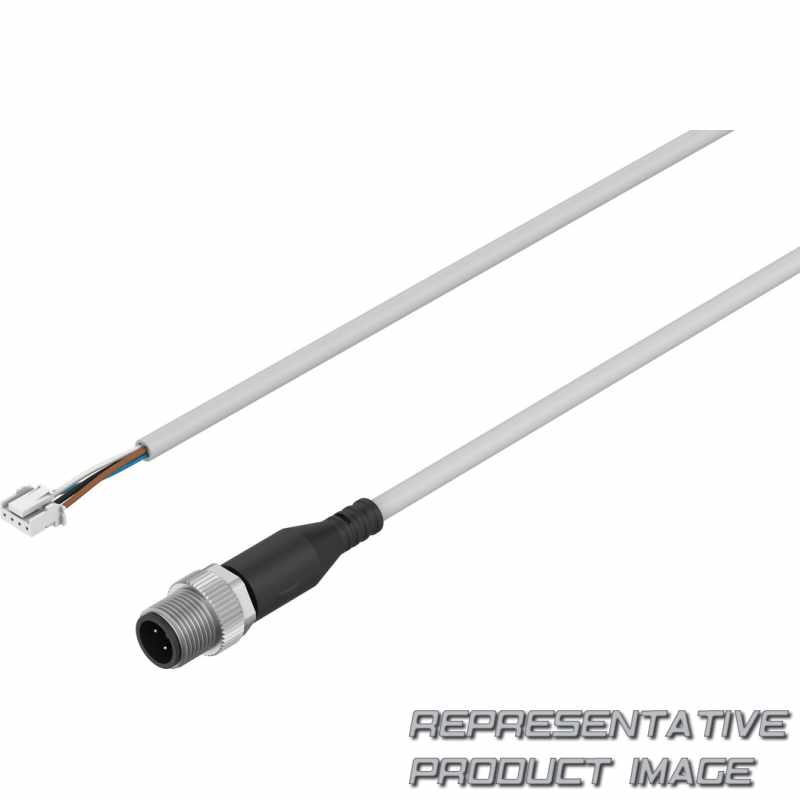

FESTO 8091514 connecting cable

Name: 8091514 FESTO
Brand: FESTO
SKU: 684057-en-gbp
Price: 17.77 GBP
Availability: InStock

NEBS-L1G4-K-1-N-M12G4

£17.77 ~~£19.83~~ -10%

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (NEBS)	Connecting cable for sensors
Connection technology left, field device side (L1)	PCB plug connector
Cable outlet left (G)	Straight
Number of pins/wires on the left (4)	4
Cable characteristic (K)	Standard
Cable design	Standard

Cable length [m] (1)	1
Cable identification (N)	Without label holder
Connection technology right, controller side (M12)	Plug M12x1 A-coded, EN 61076-2-101
Plug/socket (G)	Straight
Number of pins/wires on the right (4)	4

Material insulating sheath		PP
Material screw-type lock		Nickel-plated brass
Material housing		PA TPE-U(PUR)
Material cable sheath		TPE-U(PUR)
Pollution degree		2
LABS (PWIS) conformity		VDMA24364-B2-L
CE mark (see declaration of conformity)		In accordance with EU RoHS Directive
Ambient temperature with moving cable		-5 °C ... 60 °C
Note on degree of protection		IP40 for plug connection pattern L1J In assembled state
Nominal cross section conductor		0,25 mm²
Cable diameter tolerance		± 0.1 mm
Bending radius, moving cable		≥ 46 mm
Test conditions cable		Test conditions on request
Cable length		1 m
Current rating at 40°C		1 A
Electrical connection 2, connection pattern		00995386
Electrical connection 2, used connections/cores		4
Electrical connection 2, connector system		M12x1, A-coded to EN 61076-2-101
Electrical connection 2, connection type		Plugs
Electrical connection 2, function		Controller side
Electrical connection 1, type of mounting		Snap-in locking
Electrical connection 1, number of connections/cores		4
Electrical connection 1, cable outlet		Straight
Electrical connection 1, design		Angular
Product weight		40 g
Cable designation		Without inscription label holder

Material electrical contact		Bronze, tin-plated Gold-plated brass
Housing colour		Black White
Cable sheath colour		grey
Corrosion resistance class CRC		2 - Moderate corrosion stress
Note on materials		RoHS-compliant Free of halogen
CE marking (see declaration of conformity)		To UK RoHS instructions
Storage temperature		-20 °C ... 60 °C
Ambient temperature		-20 °C ... 60 °C
Degree of protection		IP65 IP67 IP69K
Cable structure		4 x 0.25 mm²
Cable diameter		4,5 mm
Bending radius, fixed cable		≥ 14 mm
Cable characteristic		Standard
Immunity to surge		0,8 kV
Operational voltage range DC		0 V ... 30 V
electrical connection 2, type of mounting		Screw-type lock with 13 mm hexagon and longitudinal knurl
Electrical connection 2, number of connections/cores		4
Electrical connection 2, cable outlet		Straight
Electrical connection 2, design		Round
Electrical connection 1, connection pattern		00995720
Electrical connection 1, used connections/cores		4
Electrical connection 1, connector system		Connection pattern L1J
Electrical connection 1, connection type		Socket
Electrical connection 1, function		Field device side
Frequency of connection		100
