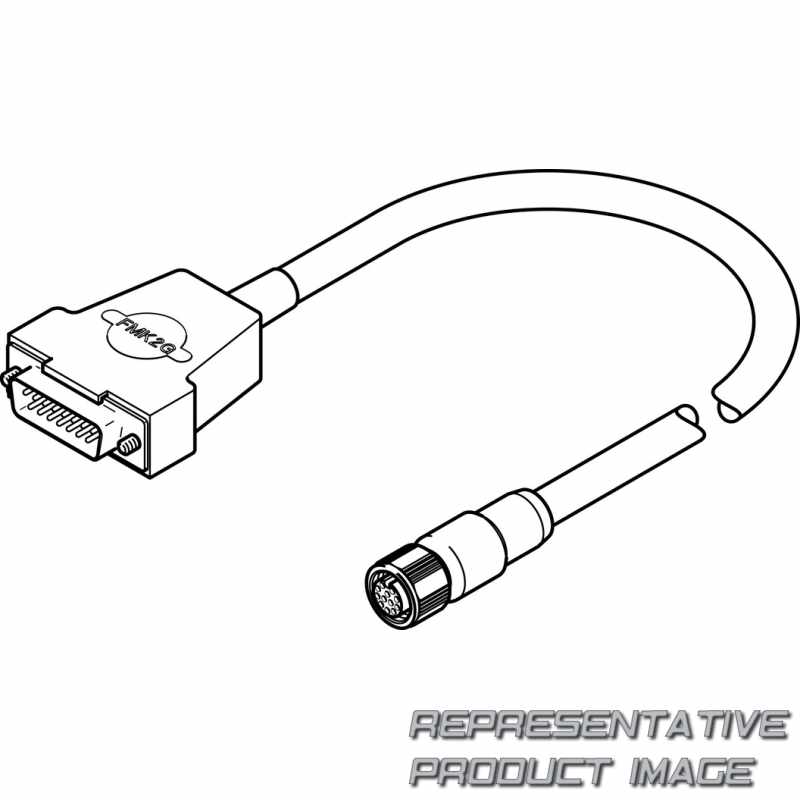

FESTO 571915 encoder cable

Name: 571915 FESTO
Brand: FESTO
SKU: 661332-en-gbp
Price: 534.69 GBP
Availability: InStock

NEBM-M12G12-RS-15-N-S1G15

£534.69

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (NEBM)	Connecting cable
Connection technology left, field device side (M12)	Socket M12x1 A-coded, EN 61076-2-101
Cable outlet left (G)	Straight
Number of pins/wires on the left (12)	12
Cable characteristic (R)	Suitable for robot applications
Cable design (S)	With shielding
Cable length (15)	15 m

Wire cross section [mm²]	Standard
Cable identification (N)	Without label holder
Connection technology right, controller side (S1)	Sub-D
Cable outlet right (G)	Straight
Number of pins/wires on the right (15)	15
Additional connector function	None
Pin allocation	Standard

Material insulating sheath		TPE-E
Material union nut		Nickel-plated die-cast zinc
Cable sheath colour		Black
Corrosion resistance class CRC		2 - Moderate corrosion stress
Note on materials		RoHS-compliant
CE marking (see declaration of conformity)		To UK RoHS instructions
Ambient temperature with moving cable		0 °C ... 40 °C
Note on degree of protection		IP50 for Sub-D plug connector In assembled state
Nominal cross section conductor		0,14 mm²
Cable diameter		7 mm
Cable characteristic		Suitable for robot applications
Current rating at 40°C		1 A
Operational voltage range AC		0 V ... 30 V
Operational voltage range DC		0 V ... 30 V
electrical connection 2, type of mounting		Screw-type lock with hex A/F18
Electrical connection 2, number of connections/cores		15
Electrical connection 2, cable outlet		Straight
Electrical connection 2, design		Angular

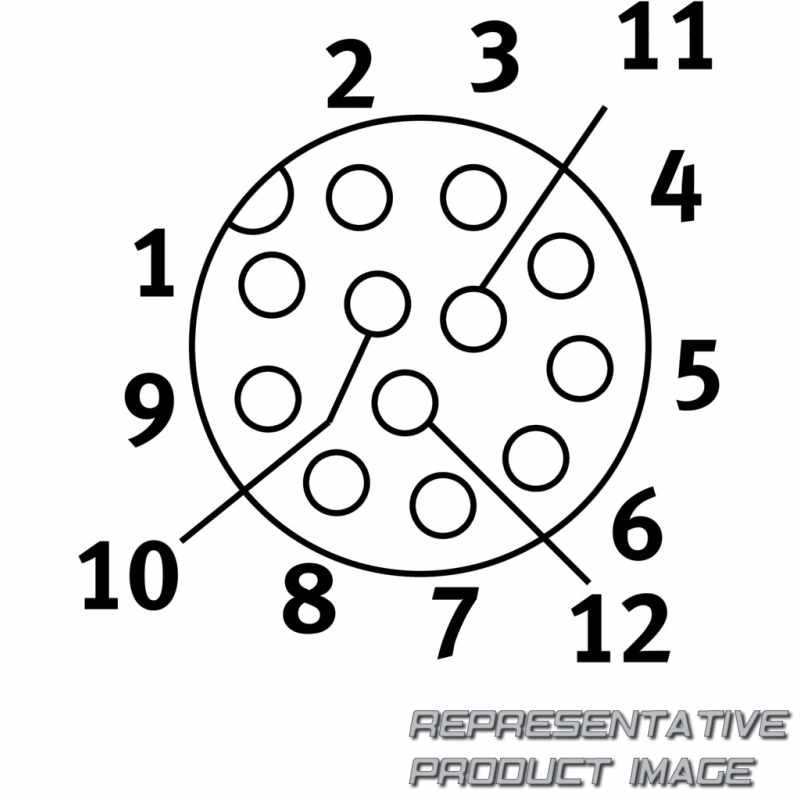

Electrical connection 1, connection pattern		00995668
Electrical connection 1, used connections/cores		11
Electrical connection 1, connector system		M12x1, A-coded to EN 61076-2-101
Electrical connection 1, connection type		Socket
Electrical connection 1, function		Field device side
Conforms to standard		DIN 47100 EN 61984

Material seals		NBR
Material housing		TPE-U(PUR)
Material cable sheath		TPE-U(PUR)
Pollution degree		3
LABS (PWIS) conformity		VDMA24364-B2-L
CE mark (see declaration of conformity)		In accordance with EU RoHS Directive
Ambient temperature		-25 °C ... 80 °C
Degree of protection		IP67
Cable structure		12 x 0.14 mm² Shielded
Bending radius, moving cable		≥ 70 mm
Cable length		15 m
Nominal operating voltage AC		24 V
Nominal operating voltage DC		24 V
Electrical connection 2, connection pattern		00995641
Electrical connection 2, used connections/cores		11
Electrical connection 2, connector system		Sub-D
Electrical connection 2, connection type		Plugs
Electrical connection 2, function		Controller side
Electrical connection 1, type of mounting		Screw-type lock, size 14 mm
Electrical connection 1, number of connections/cores		12
Electrical connection 1, cable outlet		Straight
Electrical connection 1, design		Round
Cable designation		Without inscription label holder
