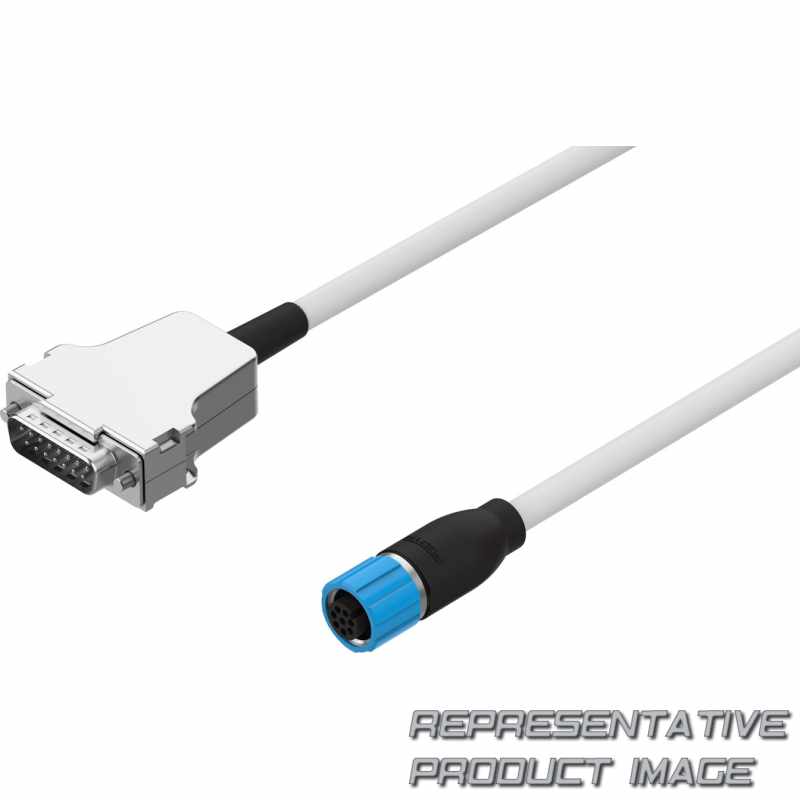

FESTO 589428 encoder cable

Name: 589428 FESTO
Brand: FESTO
SKU: 664321-en-gbp
Price: 88.49 GBP
Availability: SoldOut

NEBM-M12G8-E-3-N-S1G15

£88.49 ~~£149.69~~ -40%

Limited stock only available on quotation

Specifications

Series (NEBM)	Connecting cable
Connection technology left, field device side (M12)	Socket M12x1 A-coded, EN 61076-2-101
Cable outlet left (G)	Straight
Number of pins/wires on the left (8)	8
Cable characteristic (E)	Suitable for energy chains
Cable design	Standard
Cable length (3)	3 m

Wire cross section [mm²]	Standard
Cable identification (N)	Without label holder
Connection technology right, controller side (S1)	Sub-D
Cable outlet right (G)	Straight
Number of pins/wires on the right (15)	15
Additional connector function	None
Pin allocation	Standard

Cable sheath colour		grey
Corrosion resistance class CRC		0 - No corrosion stress
LABS (PWIS) conformity		VDMA24364-B2-L
CE mark (see declaration of conformity)		In accordance with EU RoHS Directive
Ambient temperature		-40 °C ... 80 °C
Degree of protection		IP65
Cable structure		4 x 2 x 0.14 mm² Shielded
Bending radius, moving cable		≥ 68 mm
Cable length		1 m ... 25 m
Operational voltage range AC		0 V ... 30 V
Operational voltage range DC		0 V ... 30 V
Electrical connection 2, used connections/cores		8
Electrical connection 2, connector system		Sub-D
Electrical connection 2, connection type		Plugs
Electrical connection 2, function		Controller side
Electrical connection 1, used connections/cores		8
Electrical connection 1, connector system		M12x1, A-coded to EN 61076-2-101
Electrical connection 1, connection type		Socket
Electrical connection 1, function		Field device side

Material cable sheath		TPE-U(PUR)
Note on materials		RoHS-compliant
CE marking (see declaration of conformity)		To UK RoHS instructions
Ambient temperature with moving cable		-5 °C ... 80 °C
Note on degree of protection		IP30 for Sub-D plug connector In assembled state
Nominal cross section conductor		0,14 mm²
Cable diameter		6,8 mm
Cable characteristic		Suitable for energy chains
Nominal operating voltage AC		24 V
Nominal operating voltage DC		24 V
Electrical connection 2, connection pattern		00995641
Electrical connection 2, number of connections/cores		15
Electrical connection 2, cable outlet		Straight
Electrical connection 2, design		Angular
Electrical connection 1, connection pattern		00992265
Electrical connection 1, number of connections/cores		8
Electrical connection 1, cable outlet		Straight
Electrical connection 1, design		Round
Cable designation		Without inscription label holder
