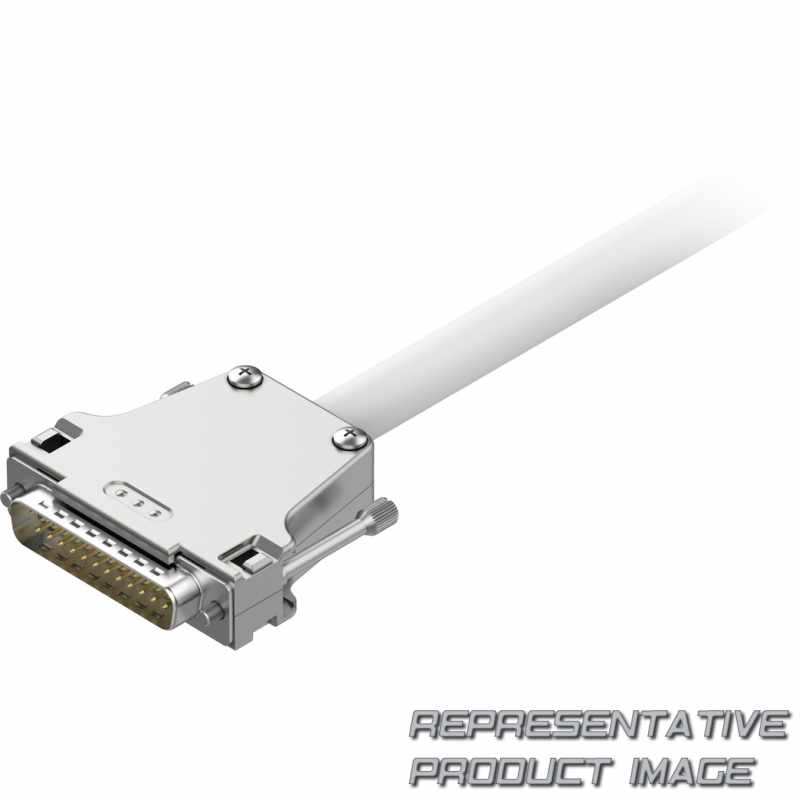

FESTO 552254 control cable

Name: 552254 FESTO
Brand: FESTO
SKU: 671128-en-gbp
Price: 130.29 GBP
Availability: InStock

NEBC-S1G25-K-2.5-N-LE26

£130.29 ~~£225.04~~ -42%

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (NEBC)	Connecting cable for control ers
Product version	Standard
Connection technology left, field device side (S1)	Sub-D socket
Cable outlet left (G)	Straight
Number of pins/wires on the left (25)	25
Additional socket functions	None
Cable characteristic (K)	Standard

Cable design	Standard
Cable length [m] (2.5)	2.50
Cable identification (N)	Without label holder
Type of connector	Standard
Connection technology right, control er side (LE)	Open end
Plug	None
Number of pins/wires on the right (26)	26

Material insulating sheath		PVC
Material housing		Die-cast zinc, nickel-plated
Material cable sheath		PVC
Note on materials		RoHS-compliant
CE mark (see declaration of conformity)		In accordance with EU RoHS Directive
Ambient temperature		-30 °C ... 80 °C
Degree of protection		IP20
Connection cross section		0,25 mm²
Cable structure		5 x (2 x 0.25 mm²) + 16 x 0.25 mm²
Cable diameter		10,8 mm
Min. cable bending radius		220 mm
Cable characteristic		Standard
Shielding		yes
Permissible current load		3,9 A
Nominal operating voltage DC		24 V
Electrical connection 2, used connections/cores		26
Electrical connection 2, connector system		Open end
Electrical connection 2, function		Controller side
Electrical connection 1, connection pattern		00995643
Electrical connection 1, used connections/cores		25
Electrical connection 1, connector system		Sub-D
Electrical connection 1, connection type		Plugs
Electrical connection 1, function		Field device side
Product weight		570 g
Cable designation		Without inscription label holder

Material electrical contact		Copper alloy, tin-plated Nickel-plated and gold-plated
Cable sheath colour		grey
Corrosion resistance class CRC		0 - No corrosion stress
LABS (PWIS) conformity		VDMA24364-B2-L
Ambient temperature with moving cable		-5 °C ... 80 °C
Note on degree of protection		In assembled state
Wire ends		Wire end sleeve Pin terminal
Nominal cross section conductor		0,25 mm²
Cable diameter tolerance		± 0.2 mm
Bending radius, fixed cable		≥ 220 mm
Test conditions cable		Bending strength: to Festo standard
Cable length		2,5 m
Immunity to surge		0,8 kV
Current rating at 40°C		3,9 A
Operational voltage range DC		0 V ... 30 V
Electrical connection 2, number of connections/cores		26
Electrical connection 2, connection type		Cable
Electrical connection 2		Open end, 26-wire
Electrical connection 1, type of mounting		2x screw 4-40 UNC
Electrical connection 1, number of connections/cores		25
Electrical connection 1, cable outlet		Straight
Electrical connection 1, design		Angular
Electrical connection 1		Straight plug connector, Sub-D, 25-pin
Mounting position		optional
