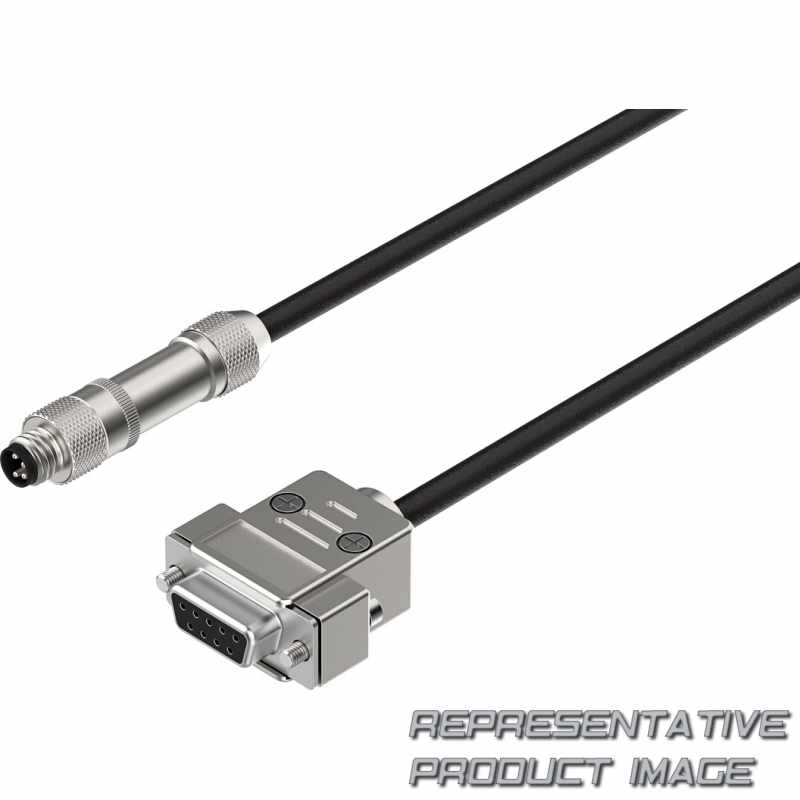

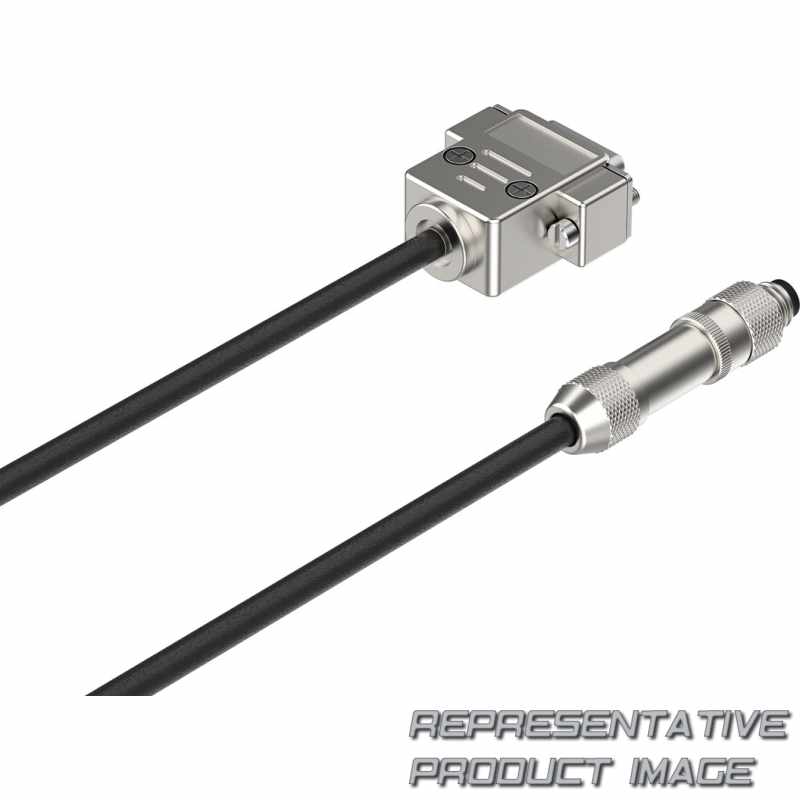

FESTO 8099218 connecting cable

Name: 8099218 FESTO
Brand: FESTO
SKU: 699666-en-gbp
Price: 154.28 GBP
Availability: InStock

NEBC-M8G4-ES-1.5-N-SB-S1G9-RS2-S7

£154.28

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (NEBC)	Connecting cable for control ers
Product version	Standard
Connection technology left, field device side (M8)	Socket M8x1 A-coded, EN 61076-2-104
Cable outlet left (G)	Straight
Number of pins/wires on the left (4)	4
Additional socket functions	None
Cable characteristic (E)	Suitable for energy chains

Cable design (S)	With shielding
Cable length [m] (1.5)	1.50
Cable identification (N)	Without label holder
Type of connector (SB)	Plug/socket
Connection technology right, control er side (S1)	Sub-D
Plug (G)	Straight
Number of pins/wires on the right (9)	9

Cable sheath colour		Black
Pollution degree		2
CE marking (see declaration of conformity)		To UK RoHS instructions
Ambient temperature with moving cable		0 °C ... 50 °C
Note on degree of protection		IP20 for Sub-D socket In assembled state
Nominal cross section conductor		0,34 mm²
Cable diameter tolerance		± 0.1 mm
Bending radius, moving cable		≥ 47 mm
Test conditions cable		Test conditions on request
Cable length		1,5 m
Immunity to surge		1,5 kV
Nominal operating voltage DC		24 V
Electrical connection 2, connection pattern		00995638
Electrical connection 2, used connections/cores		8
Electrical connection 2, connector system		Sub-D
Electrical connection 2, connection type		Socket
Electrical connection 2, function		Controller side
Electrical connection 1, type of mounting		Screw-type lock
Electrical connection 1, number of connections/cores		4
Electrical connection 1, cable outlet		Straight
Electrical connection 1, design		Round
Mounting position		optional
Protocol		RS232

Material cable sheath		TPE-U(PUR)
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
CE mark (see declaration of conformity)		In accordance with EU RoHS Directive
Ambient temperature		0 °C ... 50 °C
Degree of protection		IP67
Cable structure		3 x 0.34 mm²
Cable diameter		4,6 mm
Bending radius, fixed cable		≥ 24 mm
Cable characteristic		Suitable for energy chains
Shielding		yes
Current rating at 40°C		4 A
Operational voltage range DC		0 V ... 24 V
electrical connection 2, type of mounting		2x screw 4-40 UNC
Electrical connection 2, number of connections/cores		9
Electrical connection 2, cable outlet		Straight
Electrical connection 2, design		Angular
Electrical connection 1, connection pattern		00995708
Electrical connection 1, used connections/cores		3
Electrical connection 1, connector system		M8x1, A-coded, to EN 61076-2-104
Electrical connection 1, connection type		Plugs
Electrical connection 1, function		Field device side
Cable designation		With accessories
