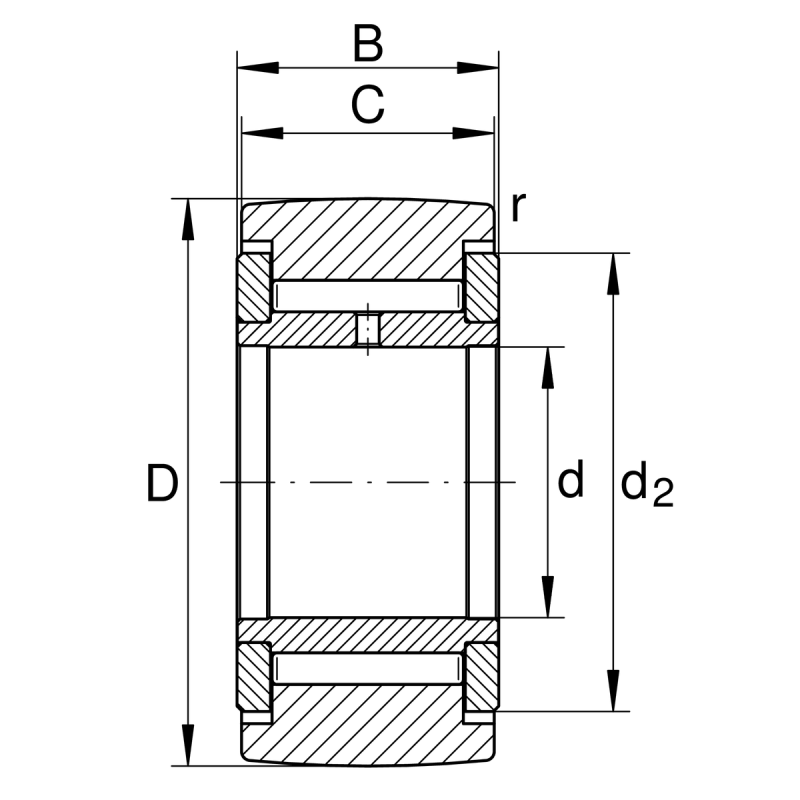

| Radius of outer ring outside profile | R | 500 | mm |
| Outside diameter of thrust washer | d2 | 23 | mm |
| Minimum chamfer dimension | rmin | 0.60 | mm |
| Width, outer ring | C | 14 | mm |
| Permissible dynamic load outer ring, radial | Fr per | 14,800 | |
| Speed on permanent grease lubrication | nD G | 2,100 | |
| Basic static load rating, radial | C0r | 15,100 | |
| Width of the bearing | B | 15 | mm |
| Bore diameter | d | 10 | mm |
| Permissible static load, radial | F0r per | 15,100 | |
| Fatigue load limit, radial | Cur | 2,080 | |
| Basic dynamic load rating, radial | Cr | 9,500 | |
| Outside diameter | D | 30 | mm |
| Manufacturer | Part Number |
|---|---|
| McGill Manufacturing | MCYR-10 |
| IKO | NART10-VR (IKO) |
| NTN | NATV10 (NTN) |
| NADELLA | FG 10 30 |
| Jalman Precision | NART10VR |
| SKF | NATV10 (SKF) |
| KOYO | CYM10RM |
| NSK | FYCR-10R |
| Torrington | FYCRLC-1030 |
| Alfatec | HTAV10 |
