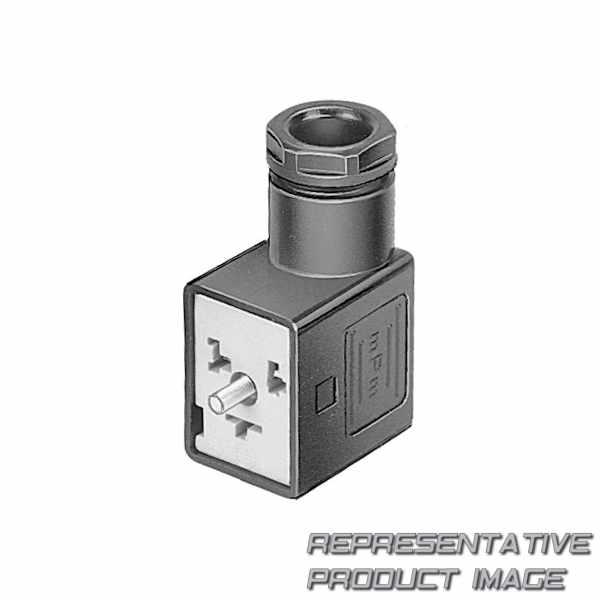

FESTO 33295 plug socket

Name: 33295 FESTO
Brand: FESTO
SKU: 679527-en-gbp
Price: 3.44 GBP
Availability: InStock

MSSD-V

£3.44 2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (MSSD)	Plug socket
Electrical connection 1, connection technology (V)	Type B to EN 175301-803
Electrical connection 1, number of pins/wires	Standard
Electrical connection 2, connection technology	Standard

Material seals		NBR
Material housing		Polymer
CE marking (see declaration of conformity)		To UK regulations for electrical equipment To UK RoHS instructions
Ambient temperature		-25 °C ... 90 °C
Degree of protection		IP65
Cable diameter		6 mm ... 8 mm
Protective conductor connection		Available
Operational voltage range AC		0 V ... 250 V
Electrical connection 2		Screw terminal
Electrical connection 1, cable outlet		Angled
Electrical connection 1, design		Angular
Product weight		18 g
Note on cable outlet		180° rotatable
Type of mounting		On solenoid valve via M3 central screw

Housing colour		Black
LABS (PWIS) conformity		VDMA24364-B2-L
CE mark (see declaration of conformity)		To EU Low Voltage Directive In accordance with EU RoHS Directive
Note on degree of protection		In assembled state
Nominal cross section conductor		≤ 1,5 mm²
Cable fitting		Pg 9
Current rating at 40°C		16 A
Operational voltage range DC		0 V ... 250 V
Electrical connection 1, number of connections/cores		3
Electrical connection 1, connection type		Socket
Electrical connection		3-pin Socket Angled socket Type B To DIN EN 175301-803 Square design MSV
Mounting position		optional
Cable outlet		Angled
