| Material bowl | PC | ||
| Pneumatic connection, port 2 | G1/4 | ||
| Type of mounting | With accessories | ||
| Ambient temperature | -10 °C ... 60 °C | ||
| Air purity class at output | Compressed air to ISO 8573-1:2010 [7:4:-] | ||
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Standard nominal flow rate | 900 l/min | ||
| Operating pressure | 1,5 bar ... 12 bar | ||
| Symbol | 00991599 | ||
| Controller function | Output pressure constant Via primary pressure compensation With secondary venting With return flow function | ||

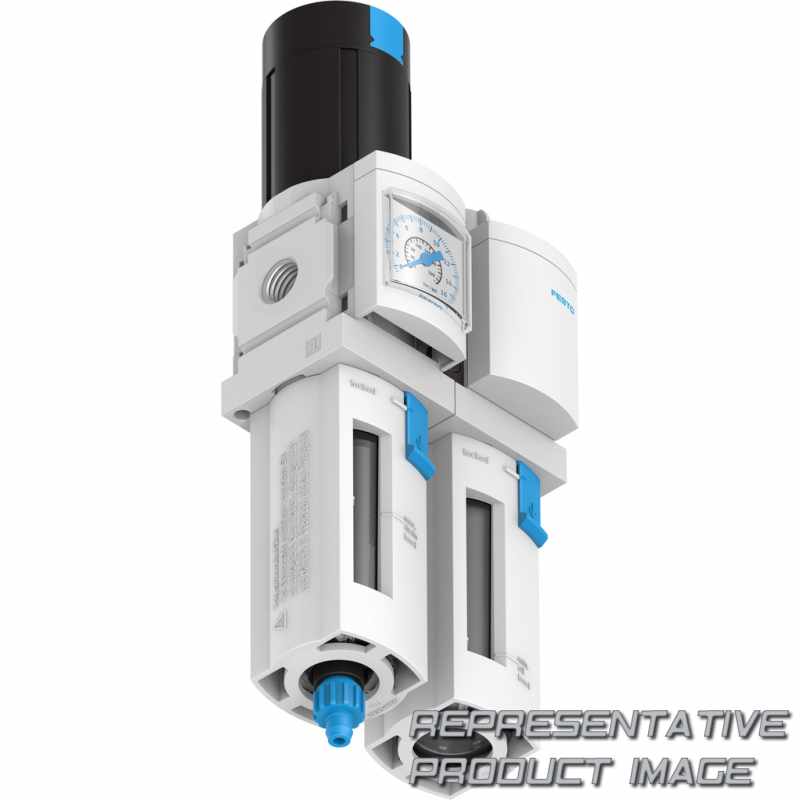

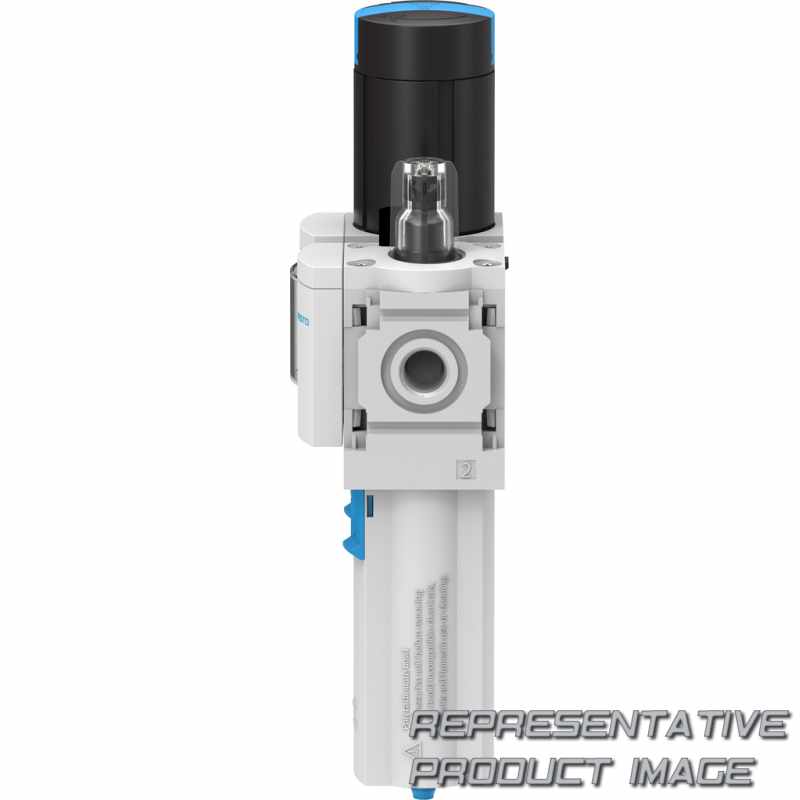

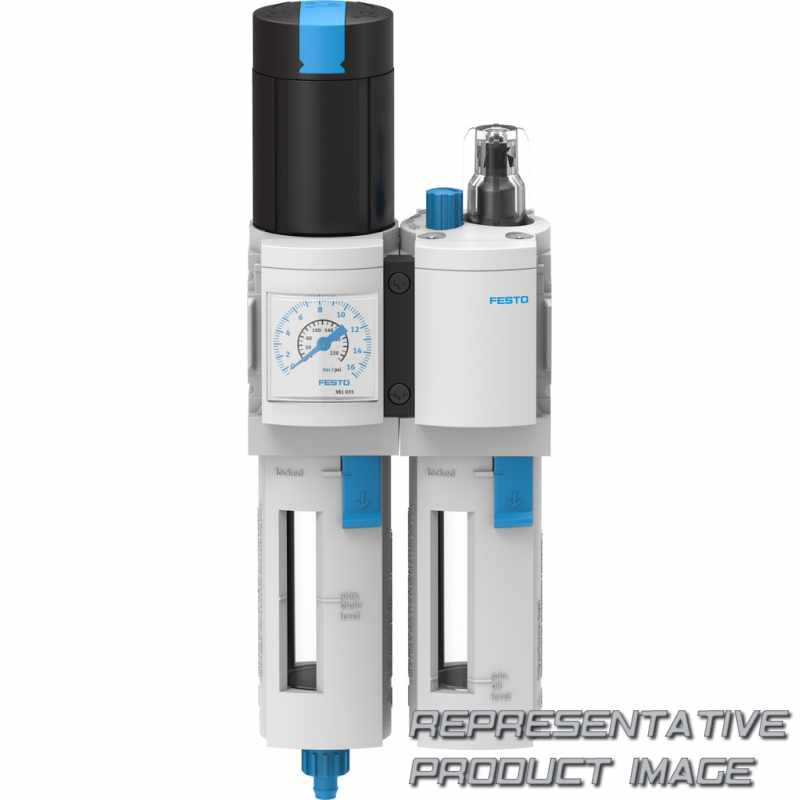

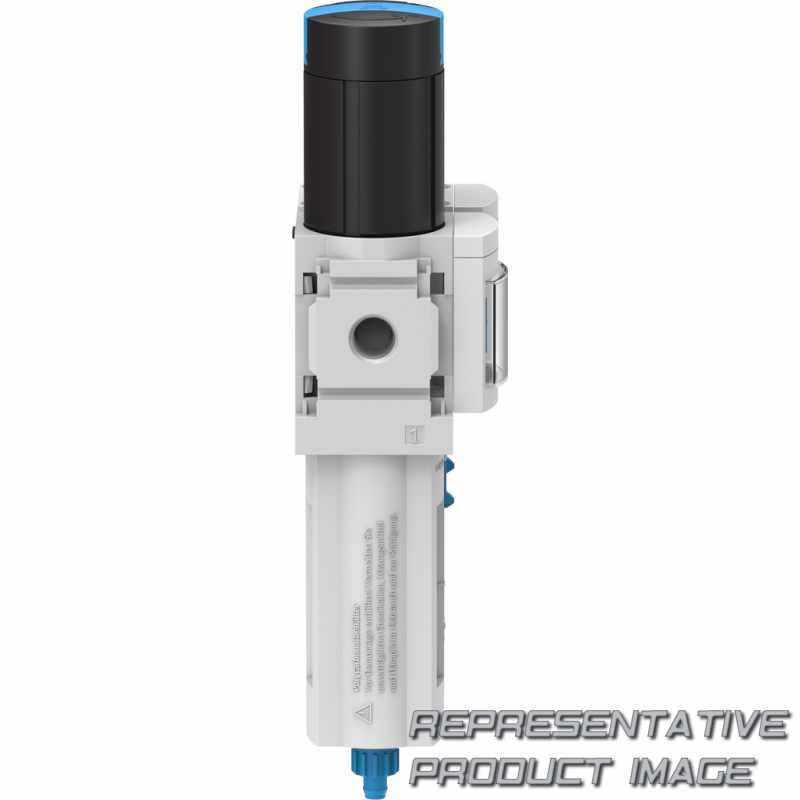

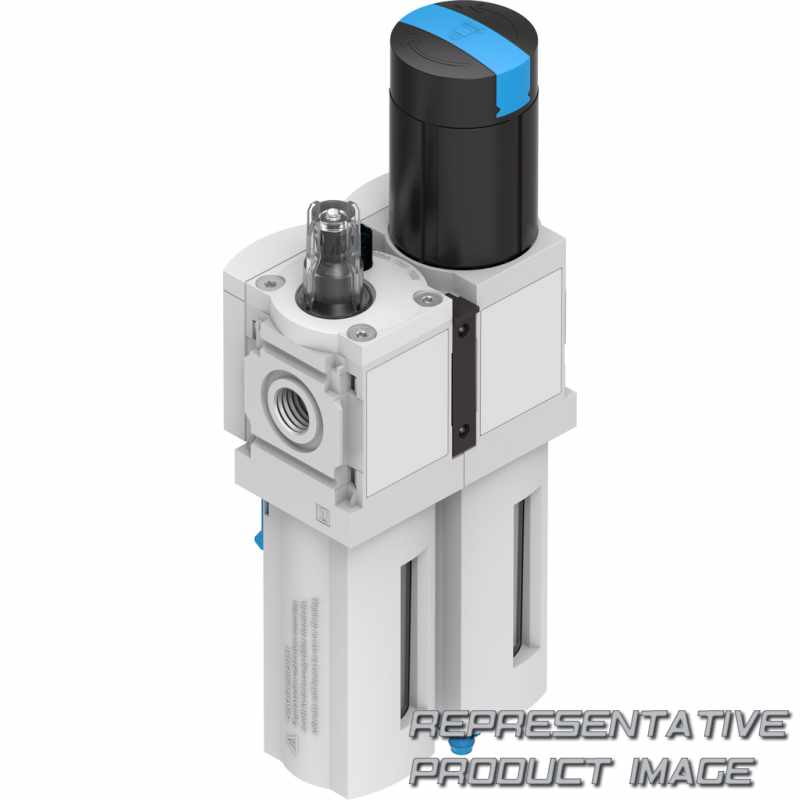

| Design | Filter regulator with pressure gauge Proportional standard mist lubricator | ||
| Mounting position | Vertical +/-5° | ||
| Series | MS |
| Material housing | Die-cast aluminium | ||
| Pneumatic connection, port 1 | G1/4 | ||
| Product weight | 500 g | ||
| Media temperature | -10 °C ... 60 °C | ||
| Storage temperature | -10 °C ... 60 °C | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:-] Inert gases | ||
| Pressure regulation range | 0,5 bar ... 12 bar | ||
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | With pressure gauge | ||
| Bowl guard | Plastic bowl guard | ||
| Grade of filtration | 40 µm | ||
| Condensate drain | Fully automatic | ||
| Actuator lock | Rotary knob with integrated lock | ||
| Size | 4 |
