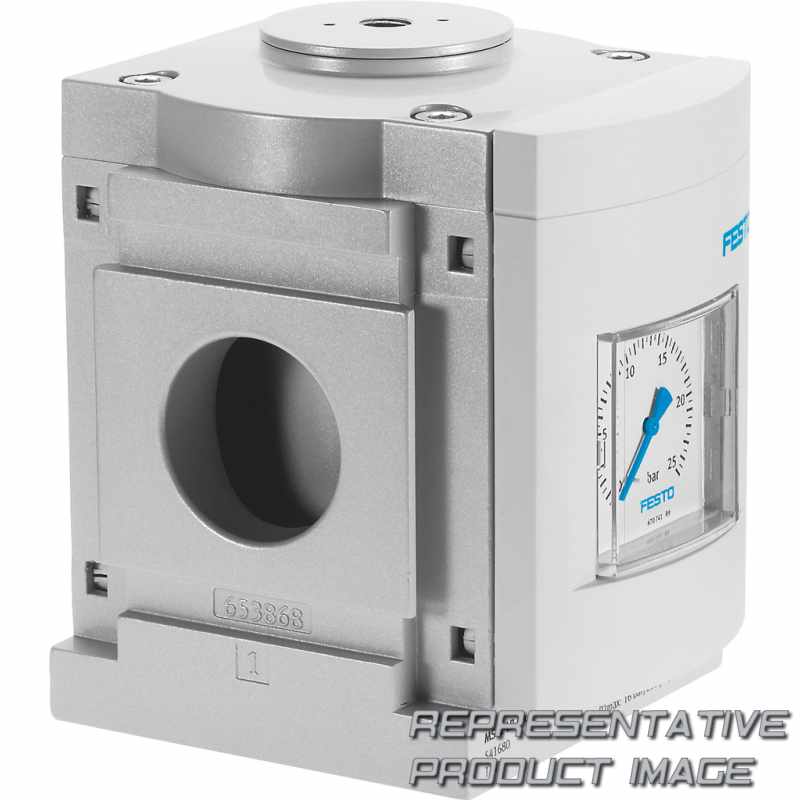

FESTO 541680 pressure regulator

Name: 541680 FESTO
Brand: FESTO
SKU: 691346-en-gbp
Price: 424.83 GBP
Availability: InStock

MS12-LR-G-PO

£424.83

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (MS)	MS series
Size (12)	Grid dimension 124 mm
Function (LR)	Pressure regulator
Pneumatic connection (G)	Module without connecting thread, without sub-base
Pressure regulation range (PO)	Max. 16 bar, pneumatically actuated (pressure range deter- mined by pilot regulator)

Pressure gauge alternatives	None
Alternative pressure gauge scale	MS pressure gauge
Rotary knob alternative	None
Type of mounting	Without mounting bracket
Flow direction	Flow direction from left to right

Material valve stem		Wrought aluminium alloy NBR High-alloy stainless steel
Material housing		Die-cast aluminium
Material seals		NBR
Note on materials		RoHS-compliant
Pneumatic connection, port 2		Sub-base
Pilot air port 12		G1/4
Product weight		4.000 g
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Standard nominal flow rate		13.000 l/min ... 22.000 l/min
Max. pressure hysteresis		0,4 bar
Operating pressure		0,8 bar ... 21 bar

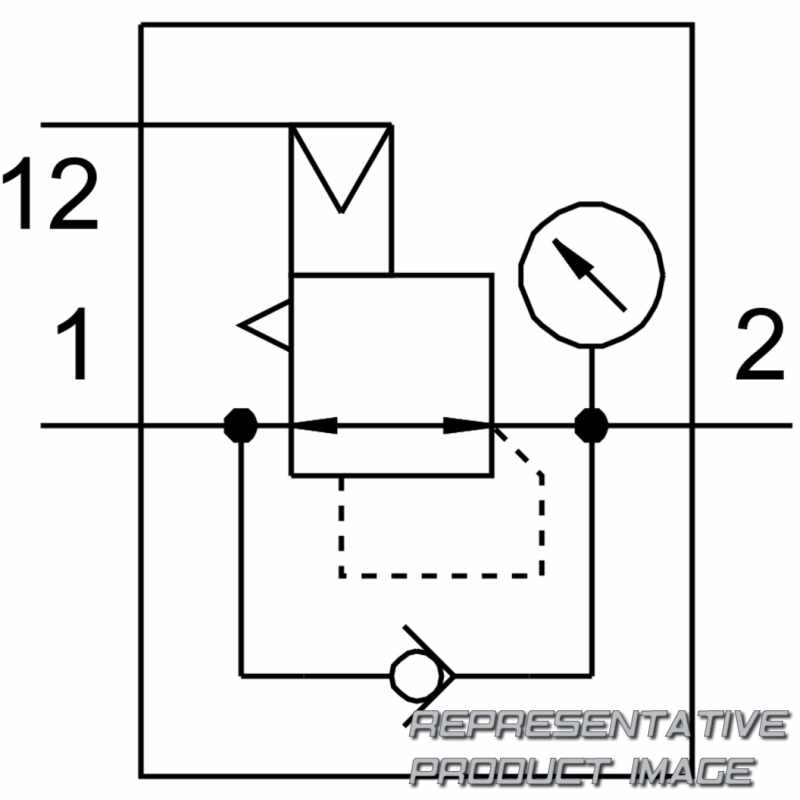

Symbol		00991900
Design		Diaphragm regulator
Series		MS

Material membrane		NBR
Material spring		Spring steel
Material underneath cover		Wrought aluminium alloy
Material covering		PA
Pneumatic connection, port 1		Sub-base
Type of mounting		In-line installation Via mounting bracket Either:
Ambient temperature		-10 °C ... 60 °C
Storage temperature		-10 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Flow rate of secondary exhaust		≤ 600 l/min
Pressure regulation range		0,5 bar ... 16 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		With pressure gauge
Controller function		Output pressure constant Via primary pressure compensation With secondary venting With return flow function
Mounting position		optional
Size		12
