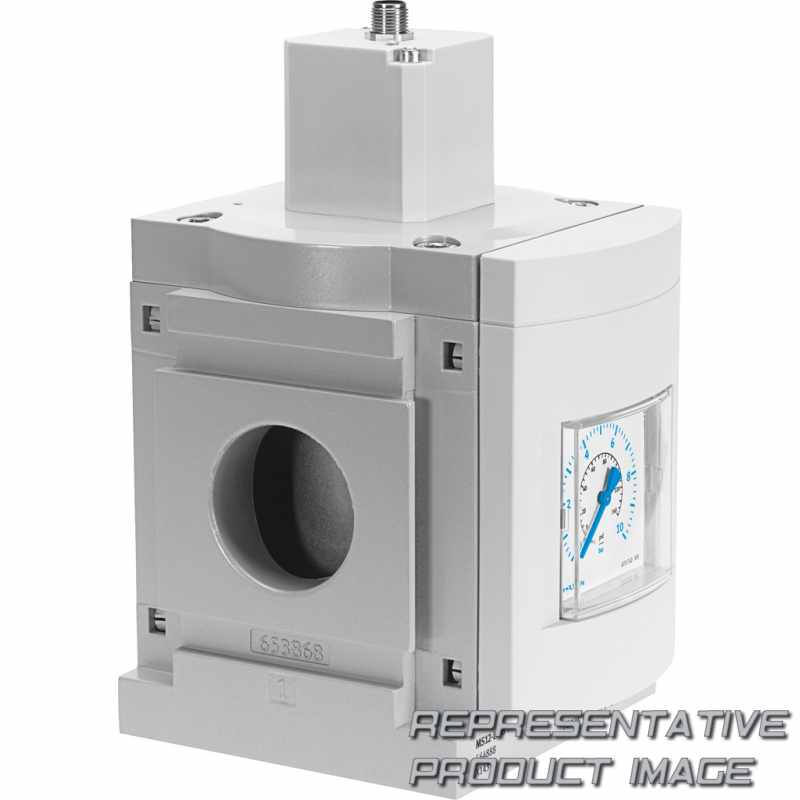

FESTO 564888 pressure regulator

Name: 564888 FESTO
Brand: FESTO
SKU: 687742-en-gbp
Price: 986.4 GBP
Availability: InStock

MS12-LR-G-PE6

£986.40

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (MS)	MS series
Size (12)	Grid dimension 124 mm
Function (LR)	Pressure regulator
Pneumatic connection (G)	Module without connecting thread, without sub-base
Pressure regulation range (PE6)	0.15 ... 6 bar, solenoid actuated (pilot control by proportion- al-pressure regulator)

Pressure gauge alternatives	None
Alternative pressure gauge scale	MS pressure gauge
Rotary knob alternative	None
Type of mounting	Without mounting bracket
Flow direction	Flow direction from left to right

Material valve stem		Wrought aluminium alloy NBR High-alloy stainless steel
Material housing		Die-cast aluminium
Material seals		NBR
Note on materials		RoHS-compliant
Pneumatic connection, port 2		Sub-base
Type of mounting		In-line installation Via mounting bracket Either:
Ambient temperature		10 °C ... 50 °C
Media temperature		10 °C ... 50 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
CE mark (see declaration of conformity)		To EU EMC Directive
Signal range analogue input		0 - 10 V
Nominal operating voltage DC		24 V
Max. electrical power consumption		3,6 W
Standard nominal flow rate		12.000 l/min ... 21.000 l/min
Max. pressure hysteresis		0,04 bar
Operating pressure		1,15 bar ... 8 bar

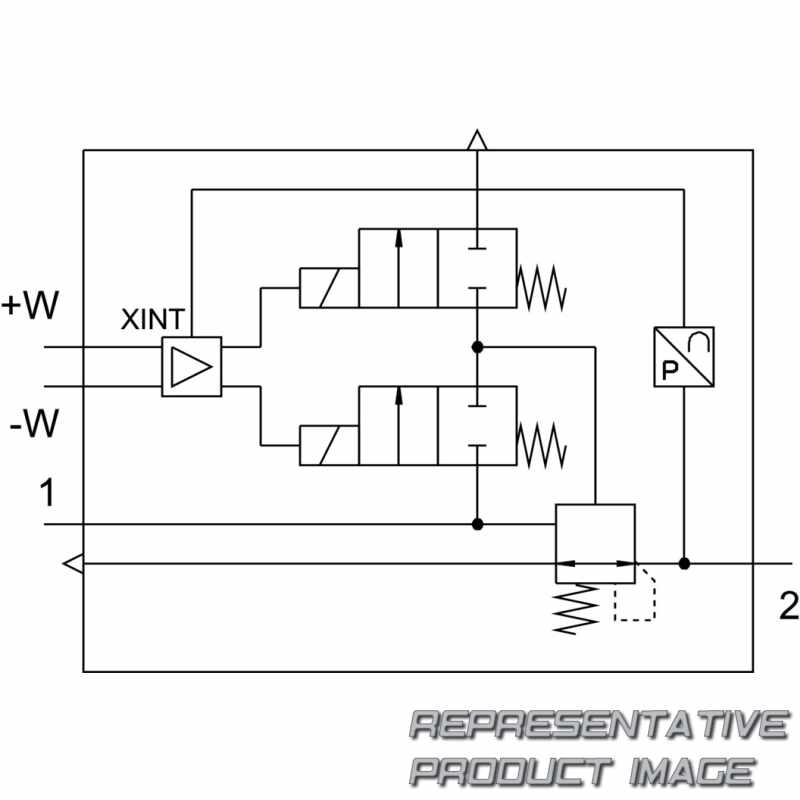

Symbol		00991856
Design		Piloted diaphragm regulator
Series		MS

Material membrane		NBR
Material spring		Spring steel
Material underneath cover		Wrought aluminium alloy
Material covering		PA
Pneumatic connection, port 1		Sub-base
Product weight		4.000 g
Degree of protection		IP65
Storage temperature		-10 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
KC mark		KC-EMV
Residual ripple		10 %
Max. current consumption		0,15 A
Operational voltage range DC		21,6 V ... 26,4 V
Flow rate of secondary exhaust		≤ 600 l/min
Pressure regulation range		0,15 bar ... 6 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		With pressure gauge
Controller function		Output pressure constant Via primary pressure compensation With secondary venting With return flow function
Mounting position		optional
Size		12
