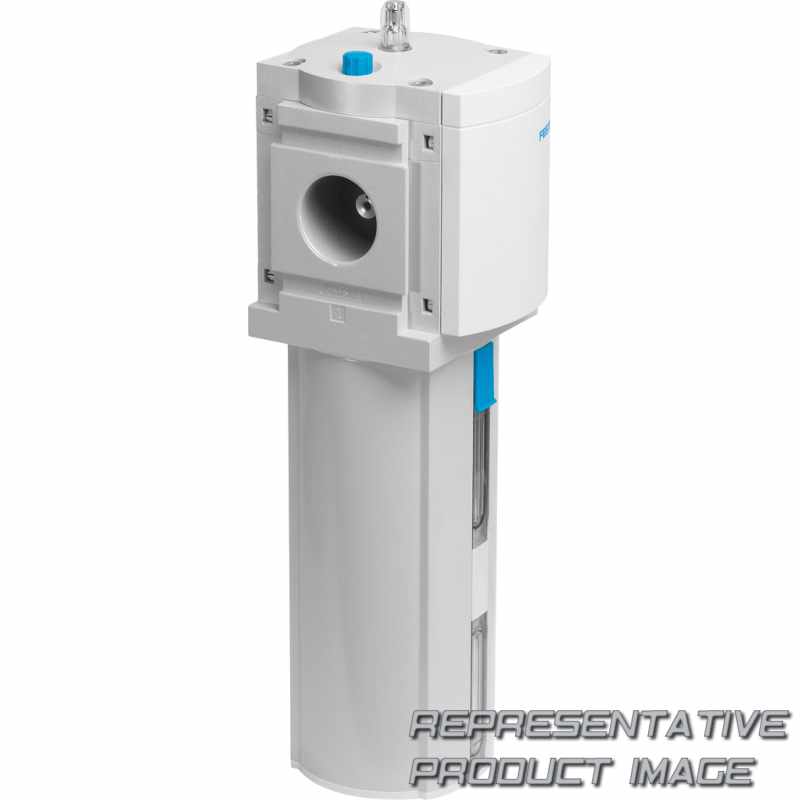

FESTO 537156 lubricator

Name: 537156 FESTO
Brand: FESTO
SKU: 674880-en-gbp
Price: 481.6 GBP
Availability: InStock

MS12-LOE-G-U

£481.60

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (MS)	MS series
Size (12)	Grid dimension 124 mm
Function (LOE)	Compressed air lubricator
Pneumatic connection (G)	Module without connecting thread, without sub-base

Bowl type (U)	Metal bowl
Type of mounting	Without mounting bracket
Flow direction	Flow direction from left to right

Material bowl		Wrought aluminium alloy
Material seals		NBR
Pneumatic connection, port 2		Internal
Type of mounting		In-line installation Via mounting bracket Either:
Ambient temperature		0 °C ... 60 °C
Media temperature		0 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Standard nominal flow rate		20.000 l/min ... 22.000 l/min
Operating pressure		1 bar ... 16 bar
Bowl guard		Integrated as metal bowl
Design		Proportional standard mist lubricator
Series		MS

Material housing		Die-cast aluminium
Material covering		PA
Pneumatic connection, port 1		Internal
Product weight		6.500 g
Oil viscosity		ISO VG 32
Storage temperature		-10 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Min. flow rate for lubricator function		400 l/min
Symbol		00991532
Max. oil capacity		1.500 cm³
Mounting position		Vertical +/-5°
Size		12
