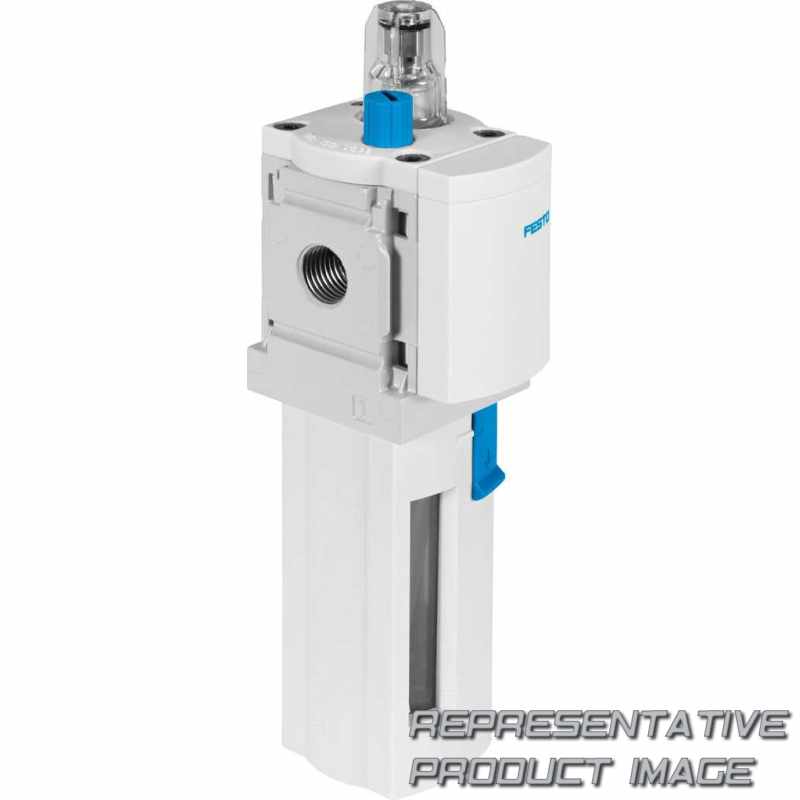

FESTO 529777 lubricator

Name: 529777 FESTO
Brand: FESTO
SKU: 667812-en-gbp
Price: 70.49 GBP
Availability: InStock

MS6-LOE-1/2-U

£70.49

2 pcs. with 1 to 3 days delivery to United States

Specifications

Type of mounting	Without mounting bracket
EU certification	None
UL certification	None
Flow direction	Flow direction from left to right

Material bowl		Wrought aluminium alloy
Note on materials		RoHS-compliant
Pneumatic connection, port 1		G1/2
Product weight		810 g
Oil viscosity		ISO VG 32
Suitable for use with food		See supplementary material information
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Note on operating and pilot medium		Lubricated operation possible
Standard nominal flow rate		7.200 l/min
Operating pressure		1 bar ... 16 bar
Bowl guard		Integrated as metal bowl
Design		Proportional standard mist lubricator
Series		MS

Material housing		Die-cast aluminium
Pneumatic connection, port 2		G1/2
Type of mounting		In-line installation With accessories Either:
Ambient temperature		-10 °C ... 60 °C
Media temperature		-10 °C ... 60 °C
Storage temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Min. flow rate for lubricator function		50 l/min
Symbol		00991532
Max. oil capacity		80 cm³
Mounting position		Vertical +/-5°
Size		6
