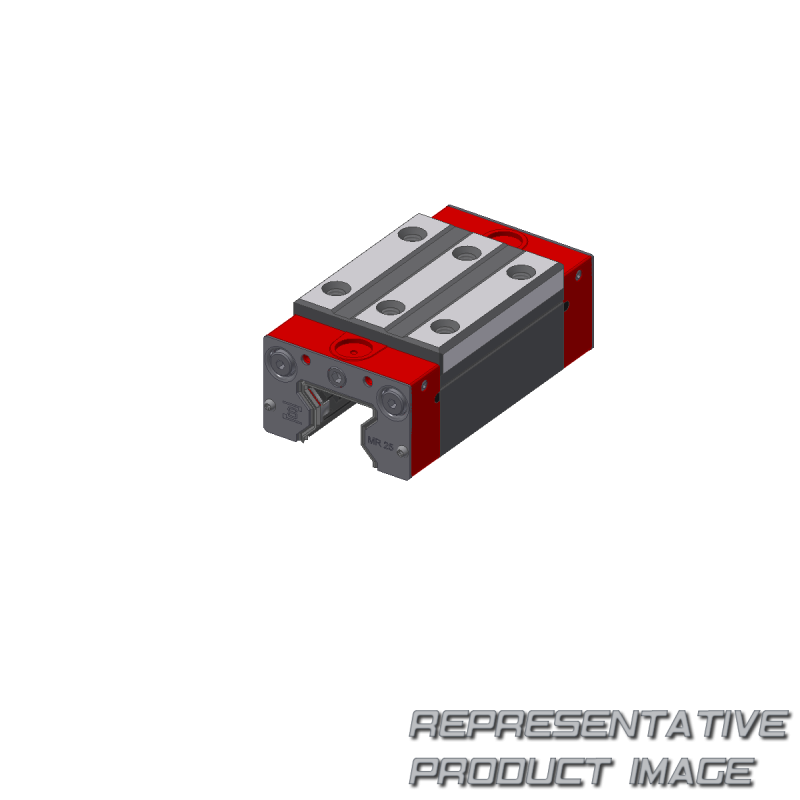

SCHNEEBERGER MRW25-C-G1-V2-R1-CN-S00-LN

Name: MRW25-C-G1-V2-R1-CN-S00-LN SCHNEEBERGER
Brand: SCHNEEBERGER
SKU: 817872-en-gbp
Availability: SoldOut

580 103 262

Limited stock only available on quotation

Specifications

Accuracy class	g1
Weight	600g

weight rail (kg)		0.60
mq - dyn. cross moment capacity (nm)		408
m0q - static cross moment capacity (nm)		733
c0 - static load capacitiy (n)		49,800
n - lateral fixing hole spacing		35
l1 - exterior fixing hole spacing		35
j - carriage height		33.50
c4 - position of lateral lube hole		18
c1 - position of center front lube hole		9.50
b - carriage width in mm		48
coating		cn
Accuracy class		g1
carriage build form		c

ml - dyn. longitud. moment capacity (nm)		265
m0l - static longitud. moment capacity (nm		476
c100 - dynamic load capacity (n)		27,700
o - reference face height		7.50
l6 - steel body length		57
l - carriage length		88
c7 - position of lateral lube hole		17
c3 - position of lateral lube hole		7.50
b2 - distance between locating faces		12.50
a - system height in mm		40
Preload class		v2
buildsize		25
type (monorail carriage)		mr
