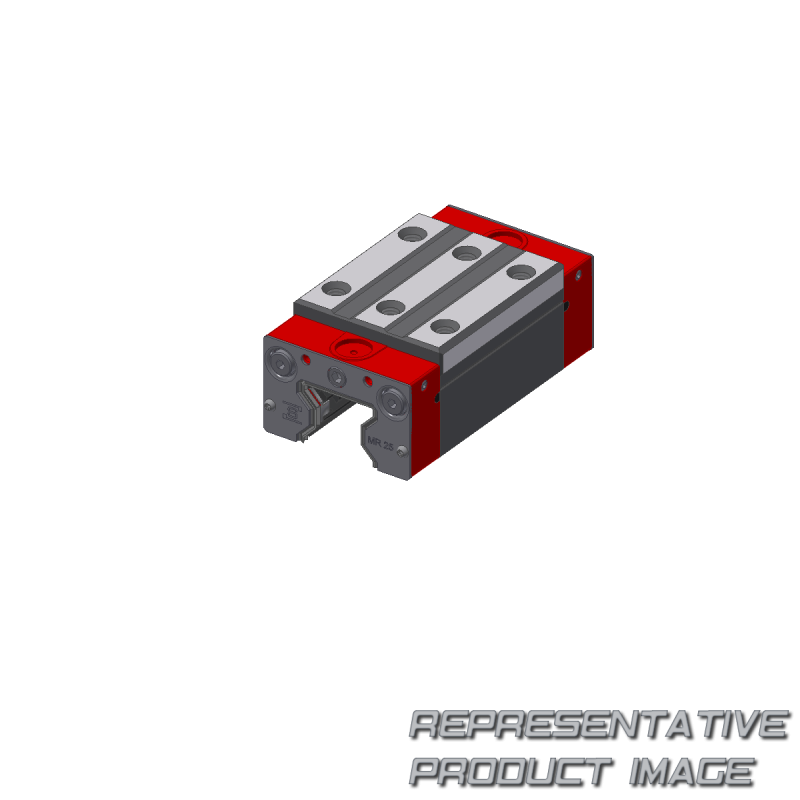

| type (monorail carriage) | mr | ||
| buildsize | 25 | ||
| Preload class | v3 | ||
| a - system height in mm | 40 | ||
| b2 - distance between locating faces | 12.50 | ||

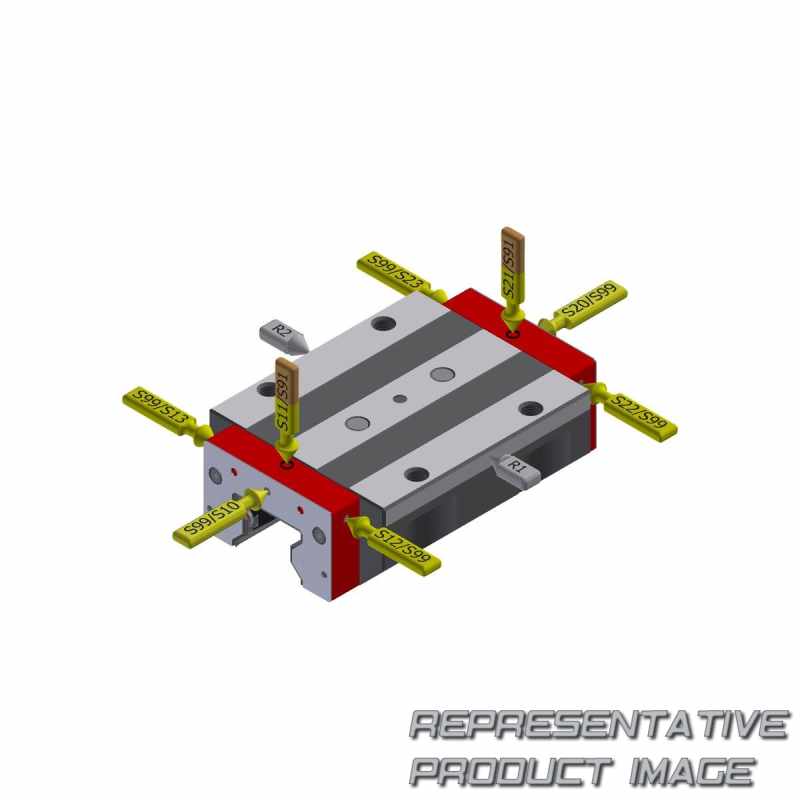

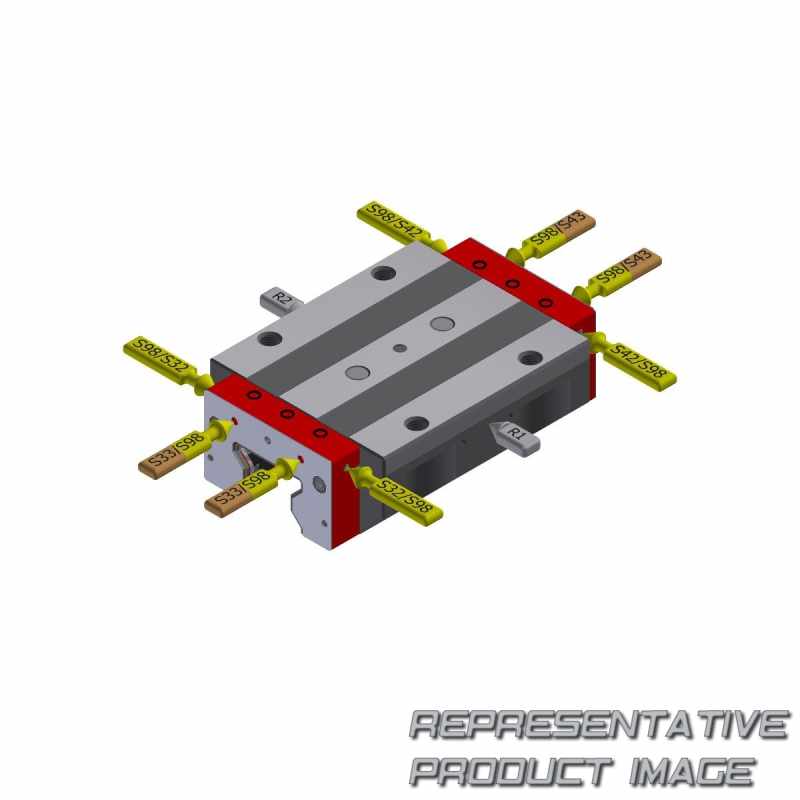

| c3 - position of lateral lube hole | 7.50 | ||
| c7 - position of lateral lube hole | 17 | ||
| l - carriage length | 88 | ||
| l6 - steel body length | 57 | ||
| o - reference face height | 7.50 | ||
| c100 - dynamic load capacity (n) | 27,700 | ||
| m0l - static longitud. moment capacity (nm | 476 | ||
| ml - dyn. longitud. moment capacity (nm) | 265 |
| carriage build form | c | ||
| Accuracy class | g3 | ||
| coating | cn | ||
| b - carriage width in mm | 48 | ||
| c1 - position of center front lube hole | 9.50 | ||
| c4 - position of lateral lube hole | 18 | ||
| j - carriage height | 33.50 | ||
| l1 - exterior fixing hole spacing | 35 | ||
| n - lateral fixing hole spacing | 35 | ||
| c0 - static load capacitiy (n) | 49,800 | ||
| m0q - static cross moment capacity (nm) | 733 | ||
| mq - dyn. cross moment capacity (nm) | 408 | ||
| weight rail (kg) | 0.60 |
