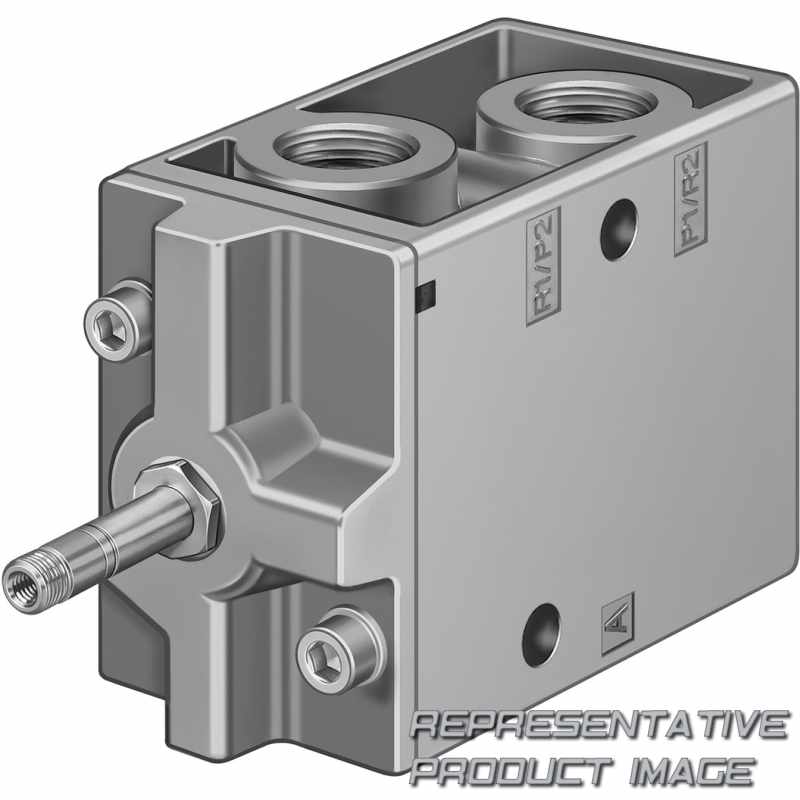

FESTO 7884 solenoid valve

Name: 7884 FESTO
Brand: FESTO
SKU: 686590-en-gbp
Price: 199.52 GBP
Availability: InStock

MOFH-3-1/2

£199.52

3 pcs. with 1 to 3 days delivery to United States

Specifications

Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 3		G1/2
Pneumatic connection, port 11		G1/2
Pilot exhaust port 82		M5
Electrical connection		Via F coil, to be ordered separately
Ambient temperature		-5 °C ... 40 °C
Storage temperature		-20 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Characteristic coil data		See solenoid coil, to be ordered separately
Max. positive test pulse with 0 signal		2.200 µs
Switching time off		90 ms
lap		Underlap
Flow direction		Non-reversible
Manual override		Detenting
Sealing principle		Soft
Grid dimension		69 mm
Degree of protection		IP65
Type of reset		Mechanical spring
Operating pressure		1,5 bar ... 8 bar
pneumatic working port		G1/2
Construction width		52 mm
Valve function		3/2 open, single solenoid

Material seals		NBR
Pneumatic port 33		G1/2
Pneumatic connection, port 2		G1/2
Pneumatic connection, port 1		G1/2
Type of mounting		On manifold rail With through-hole Either:
Product weight		1.100 g
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Max. negative test pulse with 1 signal		3.700 µs
Switching time on		18 ms
b value		0,3

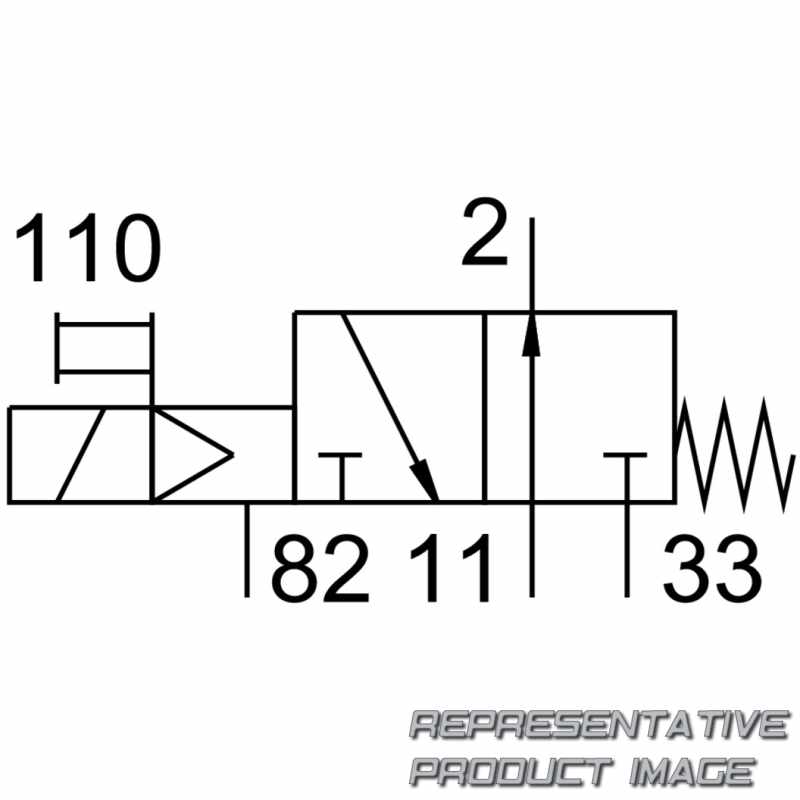

Symbol		00995429
Type of piloting		Pilot actuated
Mounting position		optional
Exhaust-air function		With flow control option
Nominal size		14 mm
Approval		c UL us - Recognized (OL)
Design		Poppet seat
Operating voltage		Via solenoid coil, must be ordered separately
Standard nominal flow rate		3.700 l/min
Type of actuation		Electric
