FESTO 184508 solenoid valve

Name: 184508 FESTO
Brand: FESTO
SKU: 660736-en-gbp
Price: 208.52 GBP
Availability: InStock

MEBH-5/2-D-3-ZSR-FR-C

£208.52 ~~£318.70~~ -34%

2 pcs. with 1 to 3 days delivery to United Kingdom

Specifications

Material housing		Die-cast aluminium
Pneumatic connection, port 5		Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 3		Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 1		Sub-base size 3 to ISO 5599-1
Type of mounting		With through-hole
Product weight		1.000 g
Media temperature		-10 °C ... 50 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Characteristic coil data		24 V DC: 2.5 W
Switching time off		109 ms
Flow direction		Non-reversible
Type of piloting		Pilot actuated
Manual override		Non-detenting
Mounting position		optional
Exhaust-air function		With flow control option
Nominal size		14,5 mm
Type of reset		Mechanical spring
Operating pressure		3 bar ... 10 bar
pneumatic working port		Sub-base size 3 to ISO 5599-1 G1/2
Construction width		65 mm

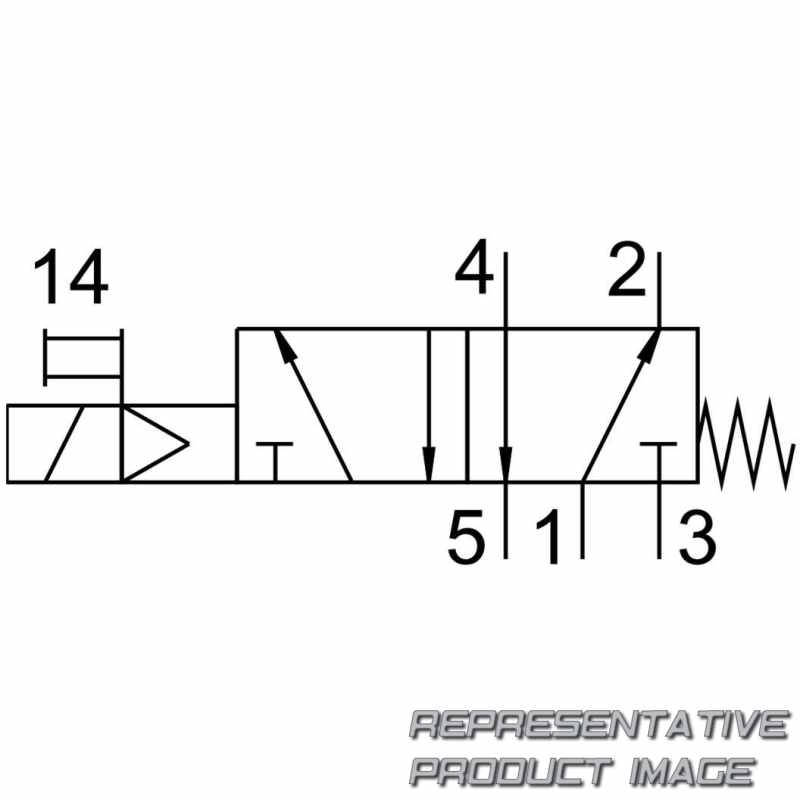

Valve function		5/2-way, monostable

Material seals		NBR
Pneumatic connection, port 4		Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 2		Sub-base size 3 to ISO 5599-1
Pilot exhaust port 84		Not ducted
Electrical connection		M12x1 Central plug Round design
Ambient temperature		-10 °C ... 50 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Switching time on		28 ms
Symbol		00991003
Pilot air supply		Internal
ISO code		351
Conforms to standard		ISO 5599-1
Sealing principle		Soft
Grid dimension		71 mm
Degree of protection		IP65
Design		Piston gate valve
Operating voltage		24V DC
Standard nominal flow rate		4.500 l/min
Type of actuation		Electric
