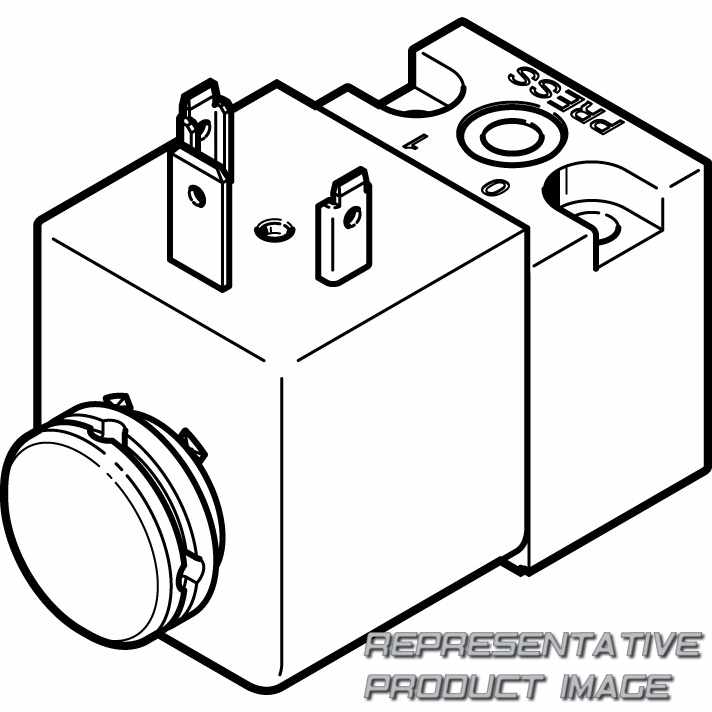

FESTO 119600 pilot valve

Name: 119600 FESTO
Brand: FESTO
SKU: 679956-en-gbp
Price: 63.29 GBP
Availability: InStock

MDH-3/2-24DC

£63.29 ~~£102.08~~ -38%

1 pcs. with 1 to 3 days delivery to United States

Specifications

Material seals		FPM
Pneumatic connection, port 3		Not ducted
Pneumatic connection, port 1		Sub-base
Electrical connection		Type A To DIN EN 175301-803
Ambient temperature		-15 °C ... 50 °C
LABS (PWIS) conformity		VDMA24364-B2-L
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		+/- 10 %
Duty cycle		100%
Switching time off		9 ms
Symbol		00991308
Type of piloting		Direct
Conforms to standard		ISO 15218
Sealing principle		Soft
Exhaust-air function		Without flow control option
Nominal size		1,3 mm
Type of reset		Mechanical spring
Operating pressure		14,5 psi ... 232 psi
pneumatic working port		Sub-base size 30 mm to ISO 15218
Construction width		30 mm
Valve function		3/2-way, closed, monostable

Note on materials		RoHS-compliant
Pneumatic connection, port 2		Sub-base
Type of mounting		On sub-base With through-hole
Product weight		140 g
Media temperature		-15 °C ... 80 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		24 V DC: 6.8 W 48 V AC: 50 Hz, pick-up power 14.5 VA, holding power 9.9 VA 53 V AC: 60 Hz, pick-up power 15.0 VA, holding power 9.3 VA
Switching time on		11 ms
lap		Underlap
Flow direction		Non-reversible
Manual override		Non-detenting
Mounting position		optional
Based on standard		ISO 15218
Grid dimension		42 mm
Degree of protection		IP65
Design		Poppet seat
Operating voltage		24V DC 48V AC
Standard nominal flow rate		50 l/min
Type of actuation		Electric
