| mass - g | 2,220 | ||
| basic load rating - dynamic rating c - n | 4,710 | ||
| eccentricity(max) - µm | 20 | ||

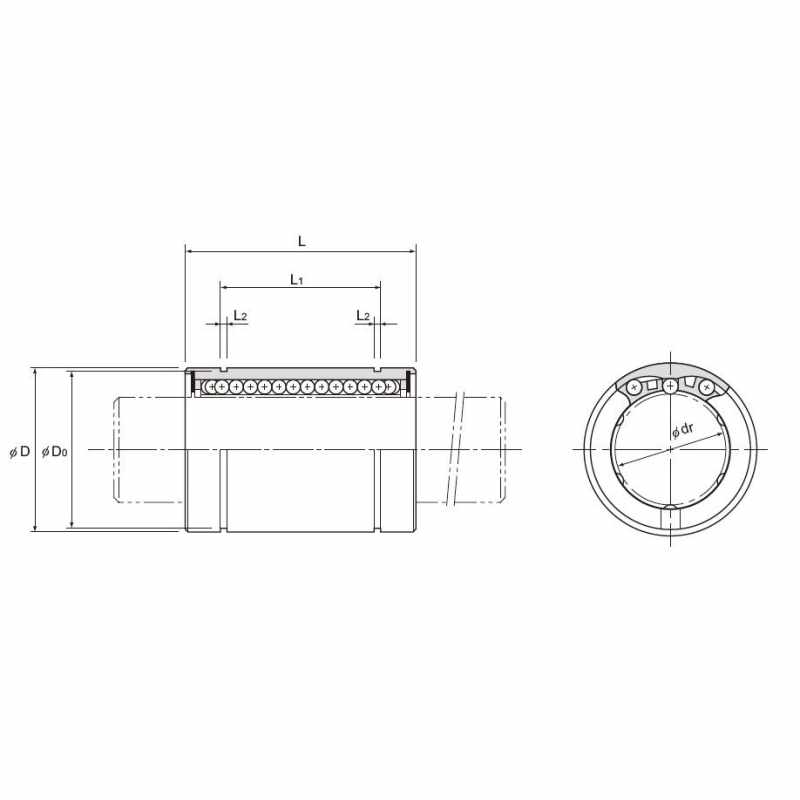

| l2 - mm | 3.15 | ||
| l1 - mm | 101.70 | ||
| length - l - mm | 125 | ||
| outer diameter - d - mm | 90 | ||
| inscribed bore diameter - dr - mm | 60 | ||
| dust protection seal | with seal |
| basic load rating - static rating c0 - n | 10,000 | ||
| radialclearancetolerance - µm | -16 | ||
| d0 - mm | 86.50 | ||
| tolerance - mm | 0-0.4 | ||
| length - tolerance - mm | 0-0.4 | ||
| outer diameter - tolerance - mm | 0-0.015 | ||
| inscribed bore diameter - tolerance - mm | +0.013-0.002 | ||
| ball rows | 6 | ||
| for shaft o.d. (mm) | 60 |
