FESTO 192448 service unit combination

Name: 192448 FESTO
Brand: FESTO
SKU: 670736-en-gbp
Price: 532.93 GBP
Availability: SoldOut

LFR-3/4-D-DI-MAXI-KB

£532.93

Limited stock only available on quotation

Specifications

Series (LFR)	Filter regulator
Pneumatic connection (3/4)	Female thread G3/4
Version (D)	D series, metal
Function (DI)	Directly actuated pressure regulator with integrated return ﬂ ow function (only MAXI)
Pressure regulation range	0.5 ... 12 bar (0.05 ... 1.2 MPa)
Grade of filtration [μm]	40 μm
Pressure gauge	With pressure gauge

Function Directly actuated pressure regulator (MICRO, MINI, MIDI), pilot actuated pressure regulator (only MAXI)	Undefined
Size (MAXI)	Grid dimension 66 mm (without connecting plates)
Service unit combination (KB)	Filter regulator, branching module, on/off valve manually oper- ated
Condensate drain	Manually rotating
Temperature range	None
Display unit	Bar/psi/without
EU certification	None

Pneumatic connection, port 2		G3/4
Type of mounting		In-line installation With accessories Either:
Ambient temperature		-10 °C ... 60 °C
Air purity class at output		Compressed air to ISO 8573-1:2010 [6:8:4] Inert gases
Operating medium		Compressed air to ISO 8573-1:2010 [-:-:-] Inert gases
Pressure regulation range		0,5 bar ... 12 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		With pressure gauge
Bowl guard		Metal bowl guard
Design		Branching module On/off valve Filter regulator with pressure gauge
Grade of filtration		40 µm
Actuator lock		Rotary knob with detent
Size		Maxi
Material housing		Die-cast zinc

Pneumatic connection, port 1		G3/4
Product weight		3.500 g
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Standard nominal flow rate		7.000 l/min
Operating pressure		1 bar ... 16 bar

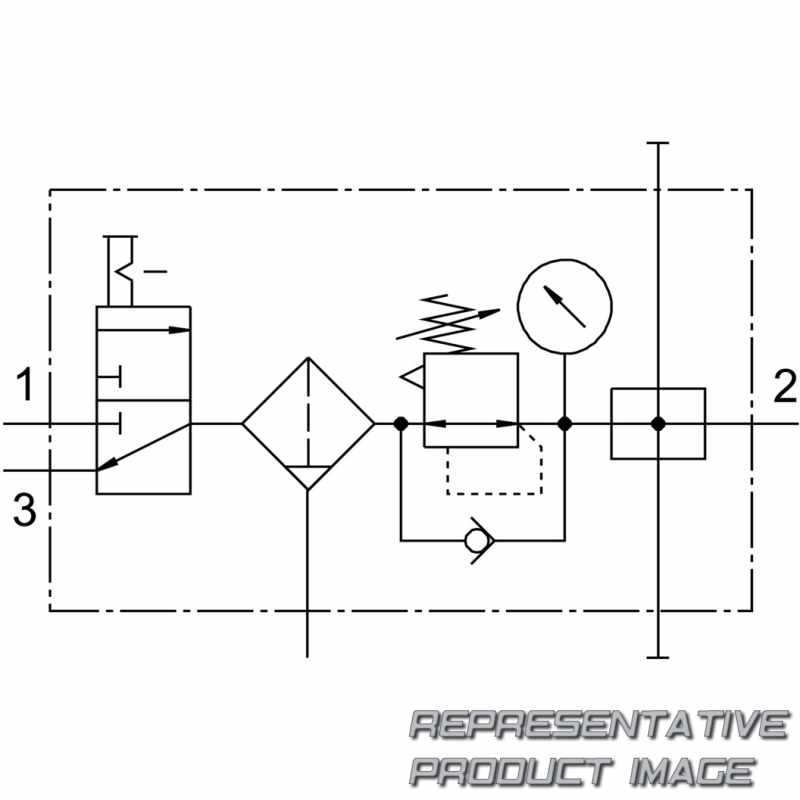

Symbol		00991771
Max. condensate volume		43 ml
Condensate drain		Manually rotating
Mounting position		Vertical +/-5°
Series		D
Material bowl		PC
