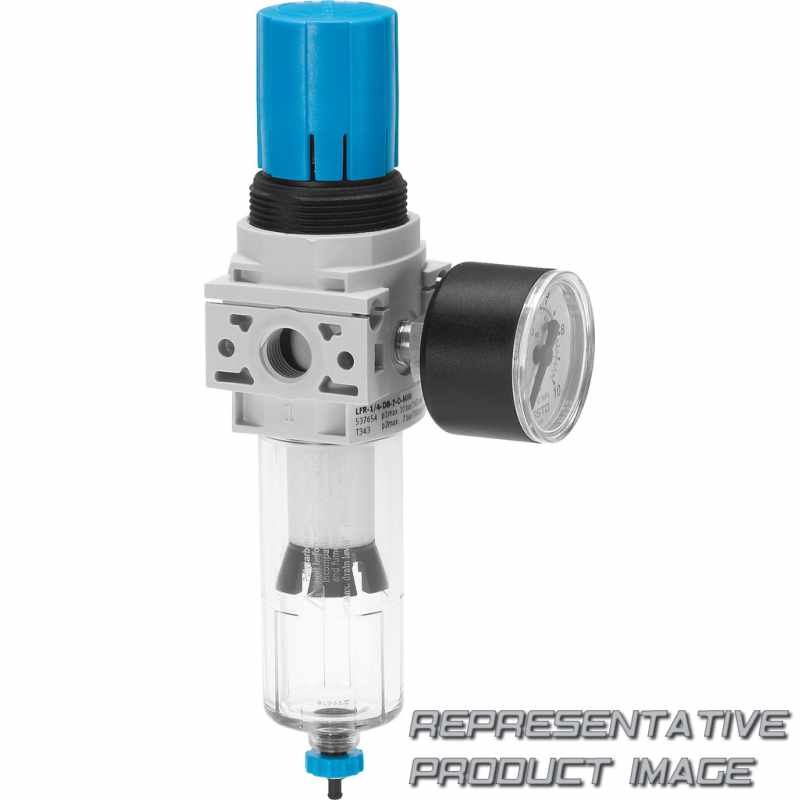

FESTO 539685 filter regulator

Name: 539685 FESTO
Brand: FESTO
SKU: 679768-en-gbp
Price: 73.13 GBP
Availability: InStock

LFR-1/4-DB-7-MINI

£73.13

33 pcs. with 2 to 5 days delivery to United States

Specifications

Series (LFR)	Filter regulator
Pneumatic connection (1/4)	Female thread G1/4
Version (DB)	D series, polymer
Function	Directly actuated pressure regulator (MICRO, MINI, MIDI), pilot actuated pressure regulator (only MAXI)
Pressure regulation range (7)	0.5 ... 7 bar (0.05 ... 0.7 MPa)
Grade of filtration [μm]	40 μm
Pressure gauge	With pressure gauge

Function Directly actuated pressure regulator (MICRO, MINI, MIDI), pilot actuated pressure regulator (only MAXI)	Undefined
Size (MINI)	Grid dimension 40 mm (without connecting plates)
Service unit combination	None
Condensate drain	Manually rotating
Temperature range	None
Display unit	Bar/psi/without
EU certification	None

Material bowl		PC
Material filter		PE
Material seals		NBR
Pneumatic connection, port 2		G1/4
Pressure gauge connection		G1/8
Product weight		200 g
Media temperature		-5 °C ... 50 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Standard nominal flow rate		≥ 1.200 l/min
Pressure regulation range		0,5 bar ... 7 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		With pressure gauge
Controller function		With secondary venting With return flow function
Condensate drain		Manually rotating
Mounting position		Vertical +/-5°
Series		DB
Size		Mini

Material housing		PA-reinforced
Material rotary knob		POM
Note on materials		RoHS-compliant
Pneumatic connection, port 1		G1/4
Type of mounting		In-line installation With through-hole Via mounting bracket Either:
Ambient temperature		-5 °C ... 50 °C
Air purity class at output		Compressed air to ISO 8573-1:2010 [7:8:4] Inert gases
Operating medium		Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases
Max. pressure hysteresis		0,5 bar
Operating pressure		1,5 bar ... 10 bar
Symbol		00991589
Design		Filter regulator with pressure gauge
Grade of filtration		40 µm
Actuator lock		Rotary knob with detent
Width		44 mm
