| BSF - Characteristic rolling element frequency | 8,498 Hz | ||
| BPFI - Characteristic inner ring frequency | 15,067 Hz | ||
| Tmax - Max operating temperature | 100 °C | ||
| Nlim - Grease lubrication limit speed | 6500 tr/min | ||
| C0r - Static load rating | 20,3 kN | ||
| Radial clearance class | CN | ||
| Maximum tightening torque | 20 N-m | ||

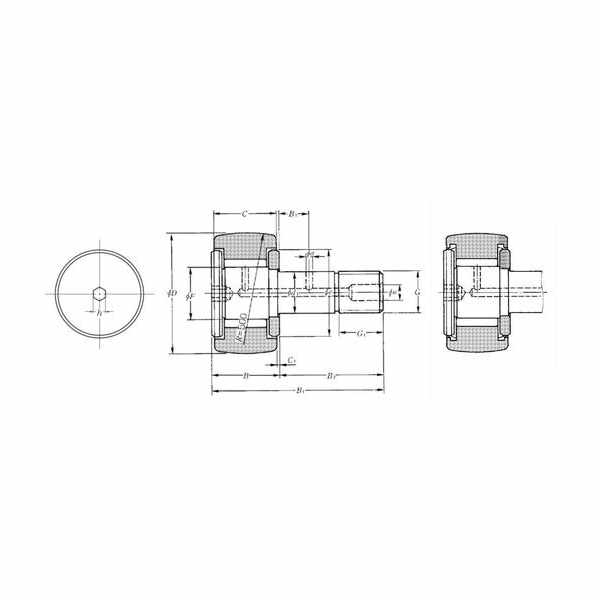

| h - Hexagonal hole | 6 mm | ||
| a - Radial lubrication hole diameter | 3 mm | ||
| C1 - Distance between roller face and washer face | 0,6 mm | ||
| G1 - Thread length of the stud | 13 mm | ||
| B2 - Stud rod length | 25 mm | ||
| B - Bearing/Inner ring width | 15 mm | ||
| d1 - Stud diameter | 12 mm |
| FTF - Characteristic cage frequency | 0,442 Hz | ||
| BPFO - Characteristic outer ring frequency | 11,933 Hz | ||
| Tmin - Min operating temperature | -20 °C | ||
| Track load capacity spherical outer ring | 2,86 kN | ||
| Cr - Dynamic load rating | 12 kN | ||
| Bearing with/without cage | Without | ||
| R - Track roller radius | 500 mm | ||
| e - Inlet diameter of roller or washer | 23 mm | ||
| n - Axial lubrication hole diameter | 6 mm | ||
| B3 - Distance between washer face and radial lub hole | 6 mm | ||
| G - Stud thread designation | M12X1.5 | ||
| B1 - Total stud length | 40 mm | ||
| F - Under roller diameter | 15 mm | ||
| Brand | NTN |
