| BSF - Characteristic rolling element frequency | 9,9 Hz | ||
| BPFI - Characteristic inner ring frequency | 11 Hz | ||
| Tmax - Max operating temperature | 100 °C | ||
| Nlim - Grease lubrication limit speed | 8000 tr/min | ||
| C0r - Static load rating | 17,9 kN | ||
| Radial clearance class | CN | ||
| Maximum tightening torque | 52 N-m | ||

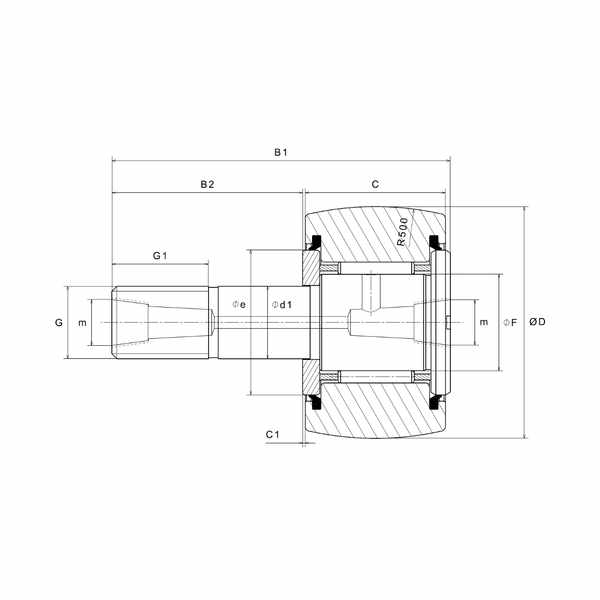

| e - Inlet diameter of roller or washer | 27 mm | ||
| C1 - Distance between roller face and washer face | 0,8 mm | ||
| G - Stud thread designation | M16X1.5 | ||
| B1 - Total stud length | 52 mm | ||
| F - Under roller diameter | 18 mm | ||
| Brand | NTN |
| FTF - Characteristic cage frequency | 0,45 Hz | ||
| BPFO - Characteristic outer ring frequency | 9 Hz | ||
| Tmin - Min operating temperature | -20 °C | ||
| Track load capacity spherical outer ring | 3,2 kN | ||
| Cr - Dynamic load rating | 12,2 kN | ||
| Bearing with/without cage | With | ||
| R - Track roller radius | 500 mm | ||
| m - Designation of the threaded lubrication hole | PT 1/8 | ||
| G1 - Thread length of the stud | 17 mm | ||
| B2 - Stud rod length | 32,5 mm | ||
| B - Bearing/Inner ring width | 19 mm | ||
| d1 - Stud diameter | 16 mm |
