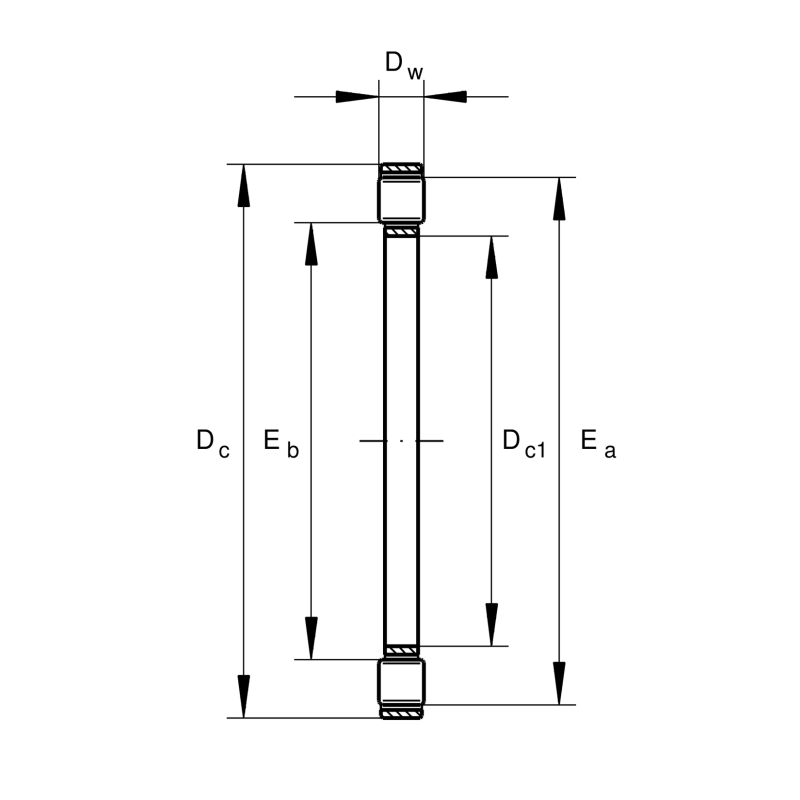

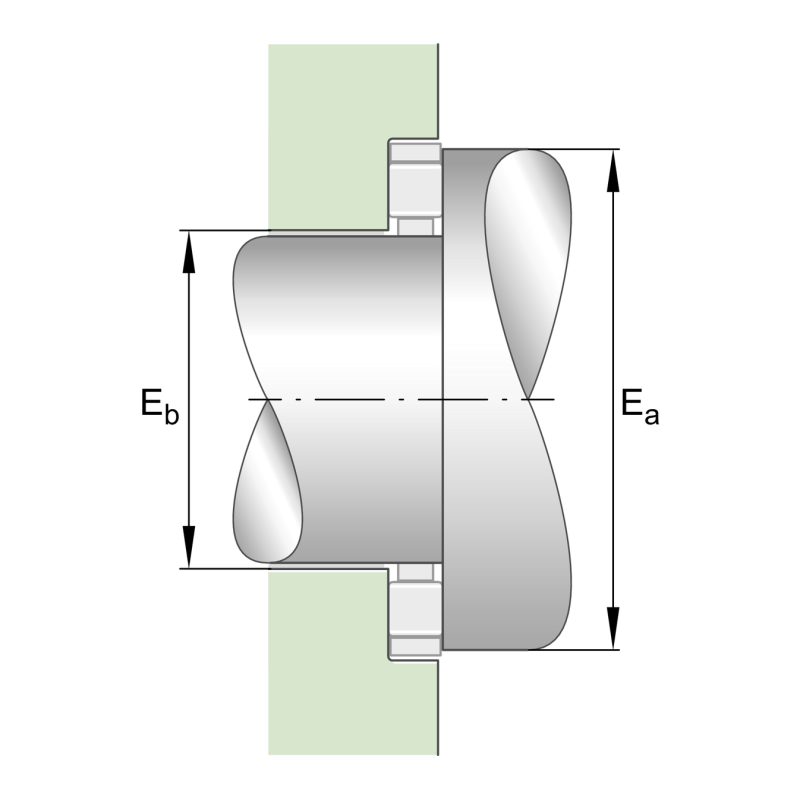

| Raceway dimension | Ea | 77 | mm |
| Maximum diameter of housing shoulder | Da max | 56 | mm |
| Maximum recess radius | ra max | 0.60 | mm |
| Minimum diameter shaft shoulder | da min | 77 | mm |
| Reference speed | nϑr | 1,330 | |
| Fatigue load limit, axial | Cua | 31,500 | |
| Basic dynamic load rating, axial | Ca | 90,000 | |

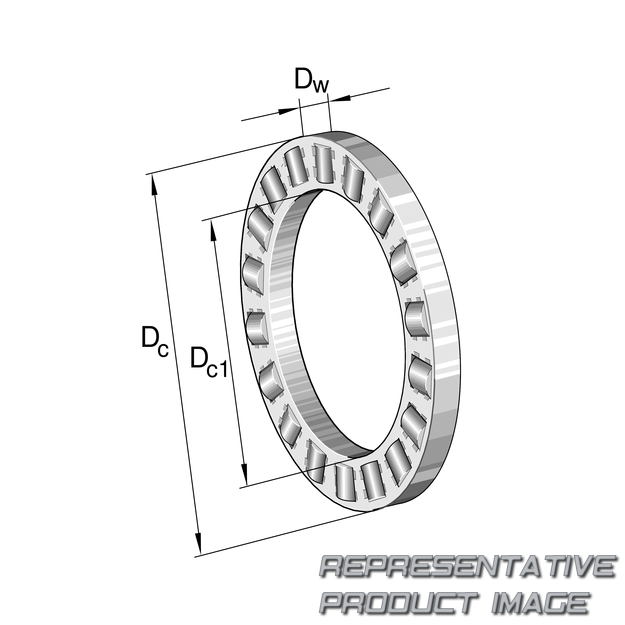

| Cage outer diameter | Dc | 78 | mm |
| Limiting speed | nG | 4,350 | |
| Basic static load rating, axial | C0a | 300,000 | |
| Rolling element diameter | Dw | 6 | mm |
| Bore diameter cage | Dc1 | 55 | mm |
| Minimum chamfer dimension | rmin | 0.60 | mm |
