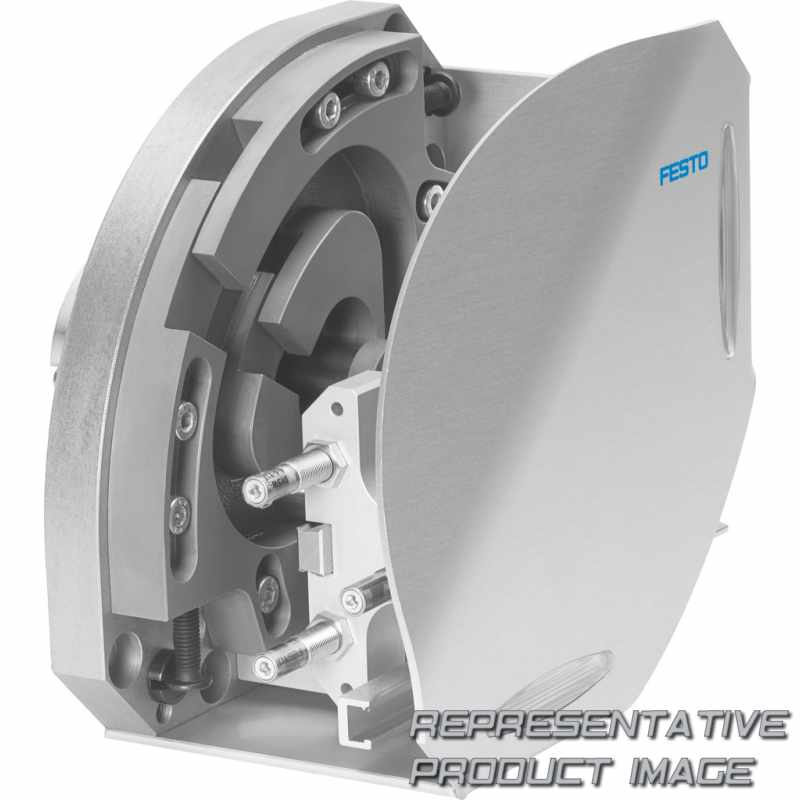

FESTO 562563 handling module

Name: 562563 FESTO
Brand: FESTO
SKU: 675811-en-gbp
Price: 3561.33 GBP
Availability: SoldOut

HSW-12-AP-SD-AW

£3,561.33

Limited stock only available on quotation

Specifications

Protective devices (SD)	Protective cover
Waiting position (AW)	With

Material setting screw		High-alloy steel
Material sensor rail		Wrought aluminium alloy Anodised
Material swivel lever		Case-hardened steel Burnished
Material retaining bracket		Wrought aluminium alloy Anodised
Material spring pressure piece		High-alloy steel
Material stops		High-alloy steel
Pneumatic connection waiting position		M5
Product weight		3.260 g
Max. process force in Y direction		35 N
Max. moment Mz		1,5 Nm
Max. moment Mx		1,5 Nm
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Repetition accuracy end positions		+/-0.02 mm
Operating pressure		4 bar ... 8 bar
Design		Linear guide plus ball bearing Semi-rotary drive Force pilot operated motion sequence
Cushioning		Shock absorber at both ends Soft characteristic curve
Max. Z stroke waiting position		15 mm
Size		12

Material bar		Wrought aluminium alloy Anodised
Material slotted guide plate		Case-hardened steel Hardened
Material cross-guide		Tempered steel
Material base plate		Wrought aluminium alloy Anodised
Material cover		Wrought aluminium alloy Anodised
Pneumatic connection		M5
Type of mounting		Via through-hole and centring sleeve
Theoretical force at 0.6 MPa (6 bar, 87 psi)		35 N
Max. effective load		1 kg
Max. moment My		1,5 Nm
Ambient temperature		0 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Min. cycle time		0,8 s
Position detection		Via proximity switch
Mounting position		optional
Z stroke		80 mm ... 100 mm
Max. linear stroke with 90° swivel angle		142/142 mm
Working stroke		15 mm ... 25 mm
