FESTO 151178 one-way flow control valve

Name: 151178 FESTO
Brand: FESTO
SKU: 689314-en-gbp
Price: 46.1 GBP
Availability: InStock

GRLA-3/8-B

£46.10

50+ pcs. with 1 to 3 days delivery to United States

Specifications

Series (GRLA)	One-way flow control valve
Pneumatic connection (3/8)	Male thread G3/8
Pneumatic connection 1	Connection size as for port 1 or 2

Material swivel fitting		Die-cast zinc
Material adjusting screw		Brass
Material seals		NBR
Product weight		97 g
Media temperature		-10 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)		2.300 l/min

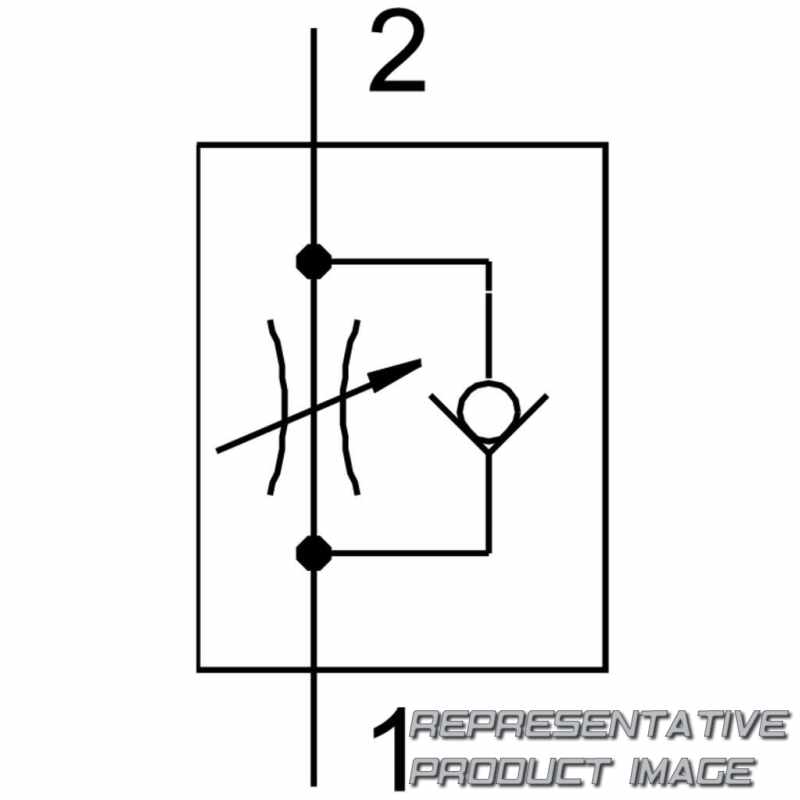

Symbol		00991452
Explosion protection		The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Ambient temperature		-10 °C ... 60 °C
Standard nominal flow rate in flow control direction		1.450 l/min
Adjustment component		Slotted head screw
Pneumatic connection, port 1		G3/8

Material nut		Wrought aluminium alloy
Material hollow bolt		Wrought aluminium alloy
Note on materials		RoHS-compliant
Max. tightening torque		20 Nm
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)		1.540 l/min ... 2.540 l/min
Operating pressure complete temperature range		0,3 bar ... 10 bar
Mounting position		optional
Maritime classification		See certificate
Standard nominal flow rate in blocked direction		970 l/min ... 1.600 l/min
Type of mounting		Screw-in
Pneumatic connection, port 2		G3/8
Valve function		Exhaust air one-way flow control function
