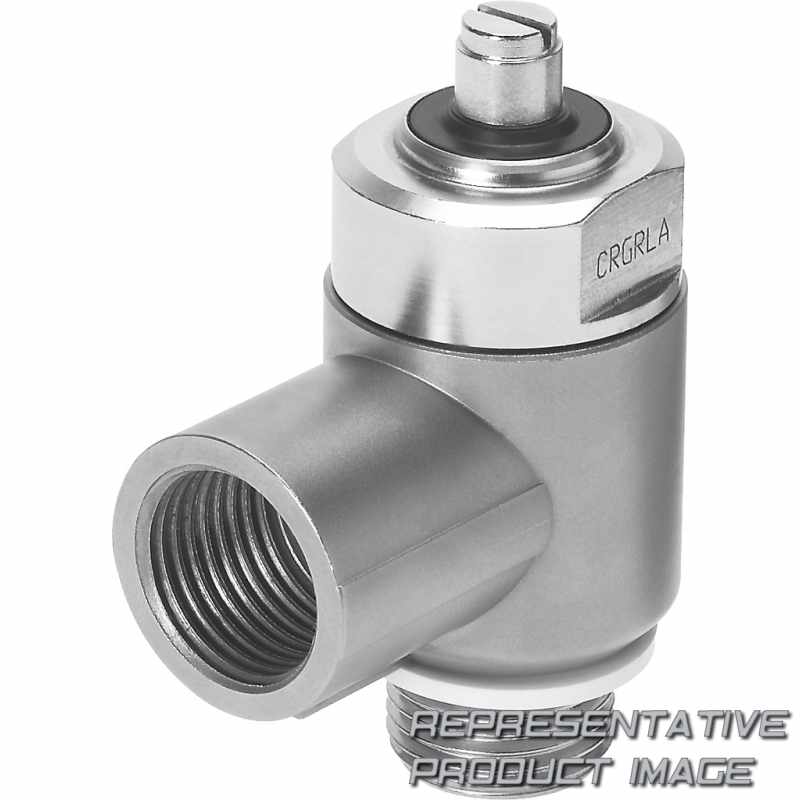

FESTO 161405 one-way flow control valve

CRGRLA-1/4-B

£88.17
2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (CRGRLA) One-way flow control valve, corrosion resistant
Pneumatic connection (1/4) Male thread G1/4
Pneumatic connection 1 Connection size as for port 1 or 2
Adjusting component Standard
Flow rate characteristic None
Generation (B) Series B
Material swivel fitting High-alloy stainless steel
Material hollow bolt High-alloy steel
Note on materials RoHS-compliant
Permissible actuation moment, regulating screw 1,5 Nm
Nominal size 6 mm
Suitable for use with food See supplementary material information
Cleanroom class Element installed statically, no meaningful evaluation possible according to ISO 14644-1
LABS (PWIS) conformity VDMA24364-B2-L
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi) 1.265 l/min
Symbol 00991452
Explosion protection The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Ambient temperature -20 °C ... 80 °C
Standard nominal flow rate in blocked direction 450 l/min ... 820 l/min
Type of mounting Screw-in
Type of actuation Manual
Pneumatic connection, port 1 G1/4
Material adjusting screw High-alloy stainless steel
Material seals FPM PVC
Product weight 71,6 g
Max. tightening torque 11 Nm
Media temperature -10 °C ... 60 °C
Storage temperature -10 °C ... 40 °C
Suitability for the production of Li-ion batteries Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi) 1.030 l/min ... 1.345 l/min
Rotatability 360°/no continuous swivelling permissible
Mounting position optional
Maritime classification See certificate
Operating pressure 4,35 psi ... 145 psi
Standard nominal flow rate in flow control direction 610 l/min
Adjustment component Slotted head screw
Pneumatic connection, port 2 G1/4
Valve function One-way flow control function
£88.17
Stock 2 pcs.
Part number 161405
Manufacturer FESTO
Quantity Unit Price
1+ £88.17
