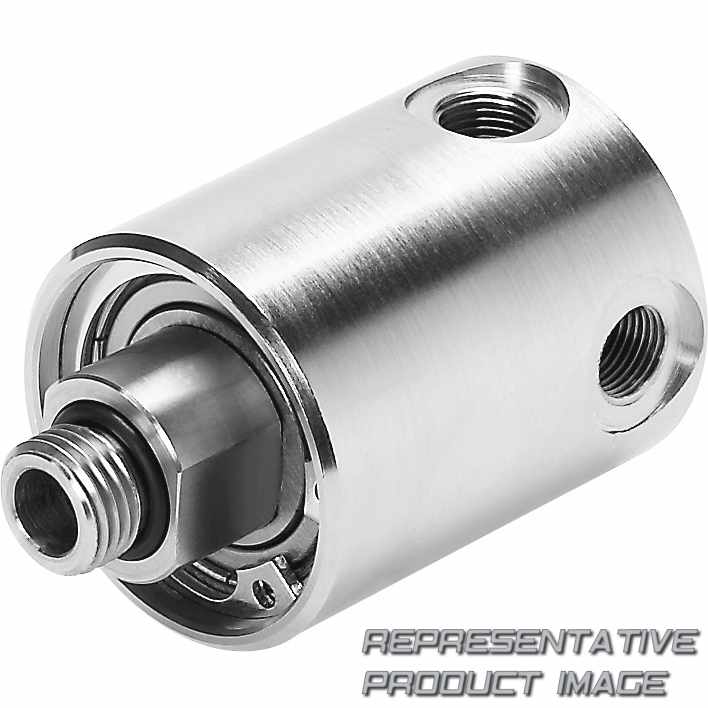

FESTO 539290 rotary distributor

Name: 539290 FESTO
Brand: FESTO
SKU: 675161-en-gbp
Price: 198.33 GBP
Availability: InStock

GF-1/8-M5

£198.33 ~~£228.02~~ -13%

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (GF)	Rotary distributor
Pneumatic connection (1/8)	Female thread G1/8

Pneumatic connection 2 (M5)	Male thread M5

Note on materials		RoHS-compliant
Pneumatic connection, port 1		G1/8
Nominal torque		1,22 Nm
Ambient temperature		-10 °C ... 80 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Standard flow rate 1-2.X open (6->0)		2.250 l/min
Operating pressure complete temperature range		-13,775 psi ... 145 psi
Nominal size		4,1 mm

Pneumatic connection, port 2		M5
Tolerance for nominal tightening torque		± 20%
Max. tightening torque		1,95 Nm
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Note on operating and pilot medium		Use 5 µm filter when operating with water Lubricated operation possible
Max. rotational speed		3.000 rpm
Standard flow rate 1-2.1 (6->0)		490 l/min
Mounting position		optional
