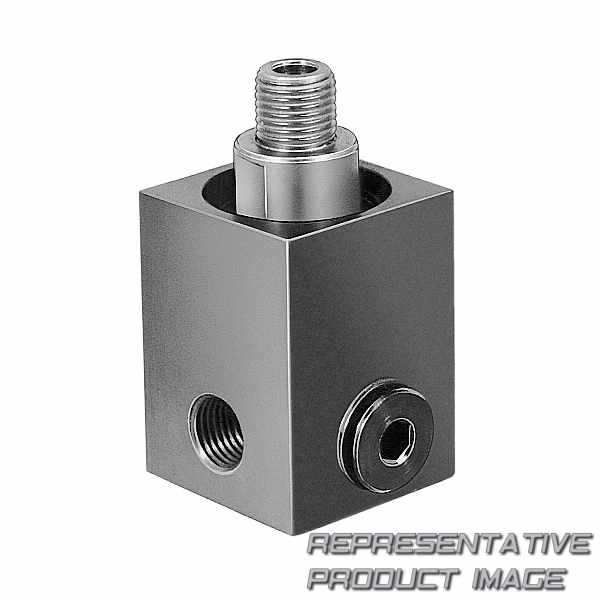

FESTO 2094 rotary distributor

Name: 2094 FESTO
Brand: FESTO
SKU: 682640-en-gbp
Price: 168.61 GBP
Availability: InStock

GF-1/4

£168.61

9 pcs. with 1 to 3 days delivery to United States

Specifications

Series (GF)	Rotary distributor
Pneumatic connection (1/4)	Female thread G1/4

Pneumatic connection 2	None

Note on materials		RoHS-compliant
Pneumatic connection, port 1		Male thread G1/4
Media temperature		-10 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Operating pressure complete temperature range		-0,95 bar ... 10 bar
Nominal size		11,5 mm

Pneumatic connection, port 2		Female thread G1/4
Ambient temperature		-10 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Max. rotational speed		300 rpm
Mounting position		optional
