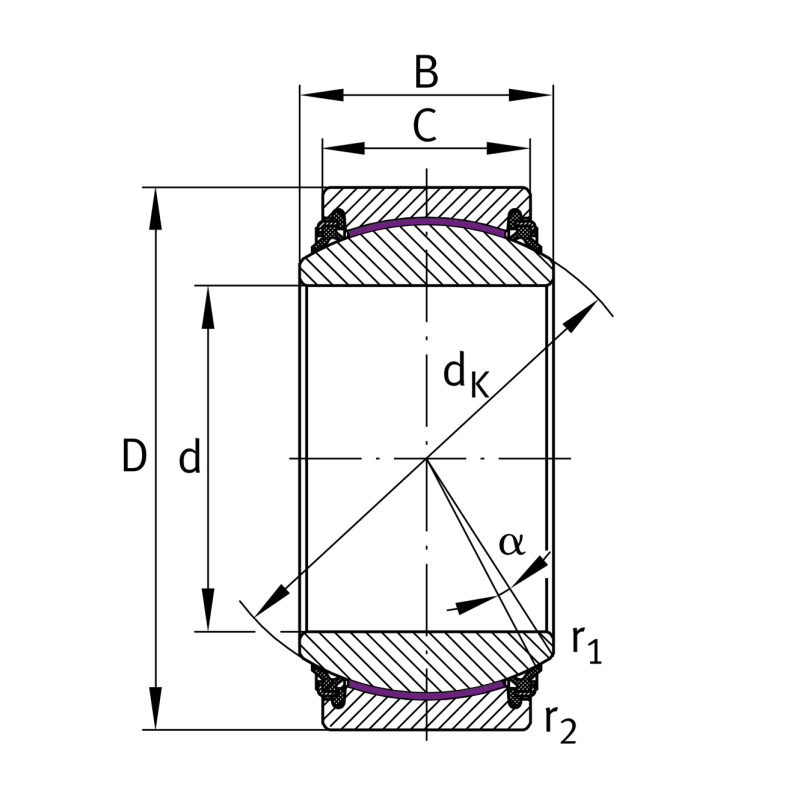

| Width inner ring, lower tolerance | BUT | -0.12 | mm |
| Bore diameter bearing, lower tolerance | dUT | -0.01 | mm |
| Tilt angle | α | 7 | ° |
| Outside diameter, lower tolerance | Do UT | -0.01 | mm |
| Radial Clearance | Gr | 0 - 0,06 | |
| Ball diameter | dK | 53 | mm |

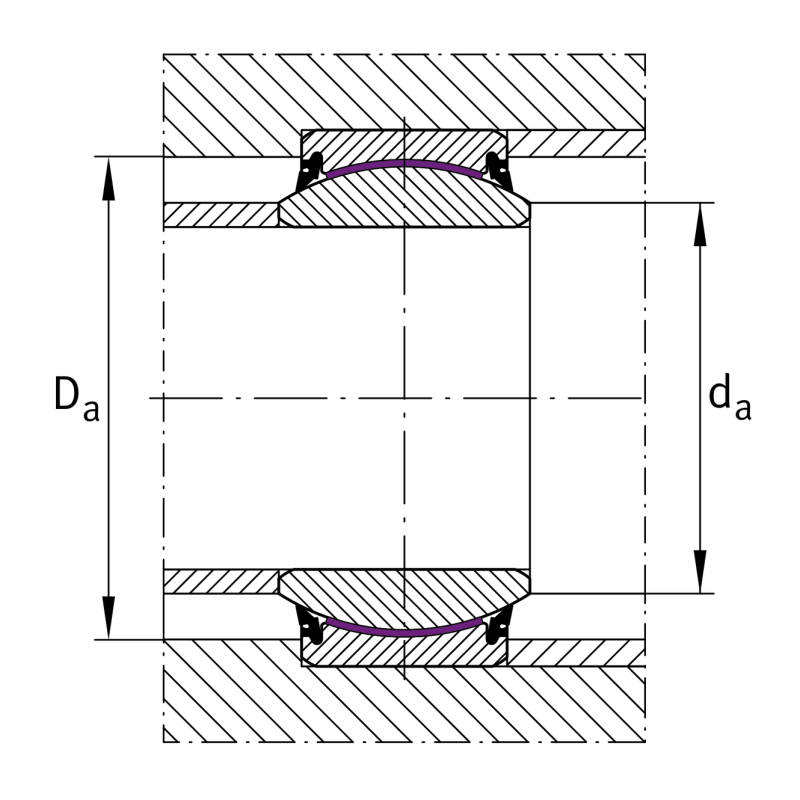

| Connection measure Inner ring | da max | 45 | mm |
| Edge Spacing | r1smin | 1 | mm |
| Basic static load rating, radial | C0r | 466,000 | |
| Width Outer ring | C | 22 | mm |
| Bore diameter bearing | d | 40 | mm |
| Basic dynamic load rating, radial | Cr | 280,000 | |
| Width inner ring | B | 28 | mm |
| Outside diameter bearing | D | 62 | mm |
| Manufacturer | Part Number |
|---|---|
| SKF | GE40 TXE-2LS (SKF) |
