FESTO 186055 service unit combination

Name: 186055 FESTO
Brand: FESTO
SKU: 682249-en-gbp
Price: 841.61 GBP
Availability: SoldOut

FRC-1/2-D-MAXI-KB

£841.61

Limited stock only available on quotation

Specifications

Size (MAXI)	Grid dimension 66 mm (without connecting plates)
Service unit combination (KB)	Filter regulator, branching module with pressure switch and lu- bricator
Condensate drain	Manually rotating

Material bowl		PC
Pneumatic connection, port 2		G1/2
Type of mounting		In-line installation With accessories Either:
Ambient temperature		-10 °C ... 60 °C
Air purity class at output		Compressed air to ISO 8573-1:2010 [7:4:-] Inert gases
Operating medium		Compressed air to ISO 8573-1:2010 [-:-:-] Inert gases
Max. pressure hysteresis		0,1 bar
Operating pressure		1 bar ... 16 bar

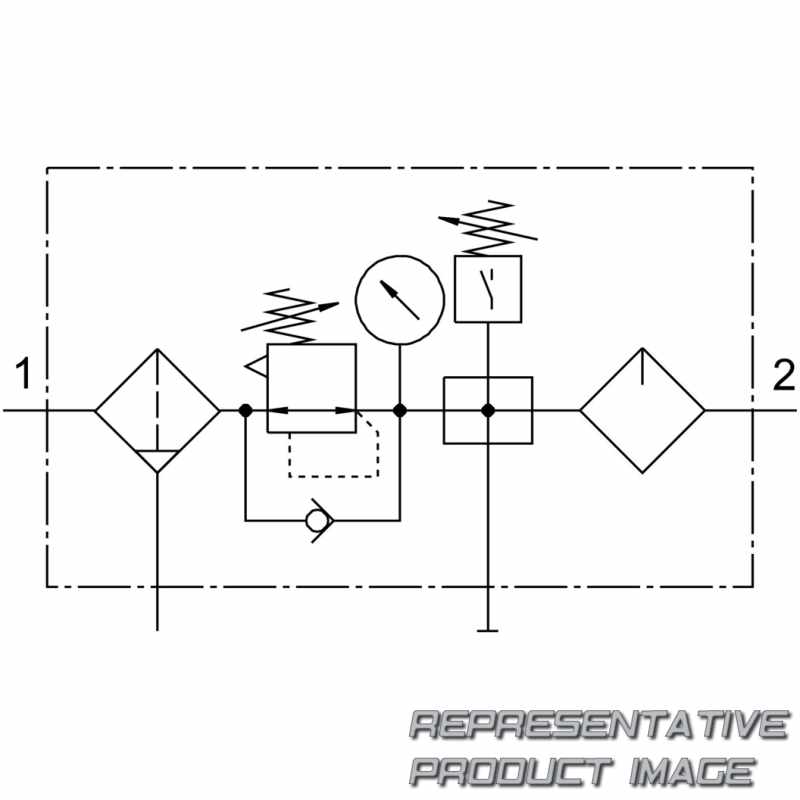

Symbol		00991769
Max. condensate volume		80 ml
Condensate drain		Manually rotating
Mounting position		Vertical +/-5°
Series		D

Material housing		Die-cast zinc
Pneumatic connection, port 1		G1/2
Product weight		3.500 g
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Standard nominal flow rate		7.500 l/min
Pressure regulation range		0,5 bar ... 12 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		With pressure gauge
Bowl guard		Metal bowl guard
Design		Branching module Pressure switch Filter regulator with pressure gauge Proportional standard mist lubricator
Grade of filtration		40 µm
Actuator lock		Rotary knob with detent
Size		Maxi
