FESTO 185845 service unit combination

Name: 185845 FESTO
Brand: FESTO
SKU: 685474-en-gbp
Price: 664.33 GBP
Availability: InStock

FRC-3/8-D-MIDI-KF

£664.33

1 pcs. with 1 to 3 days delivery to United States

Specifications

Size (MIDI)	Grid dimension 55 mm (without connecting plates)
Service unit combination (KF)	On/off valve manually operated, fi lter regulator, lubricator, on/ off valve electrically actuated, 24 V DC, soft-start valve pneu- matically actuated, branching module with pressure switch
Condensate drain	Manually rotating

Material bowl		PC
Pneumatic connection, port 2		G3/8
Type of mounting		In-line installation With accessories Either:
Ambient temperature		-10 °C ... 60 °C
Air purity class at output		Compressed air to ISO 8573-1:2010 [7:4:-] Inert gases
Operating medium		Compressed air to ISO 8573-1:2010 [-:-:-] Inert gases
Max. pressure hysteresis		0,3 bar
Operating pressure		3 bar ... 16 bar

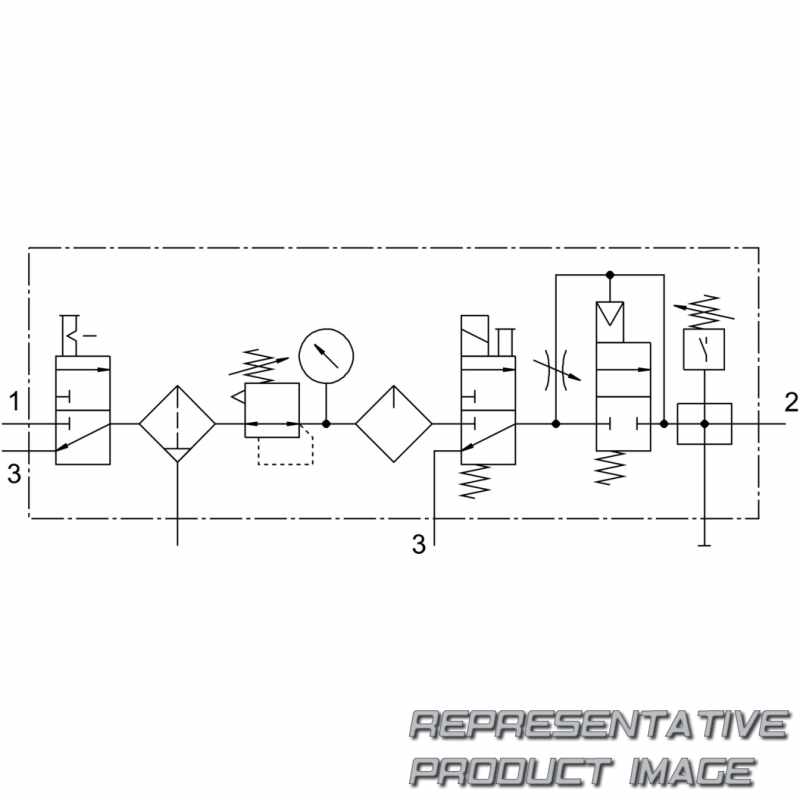

Symbol		00991563
Max. condensate volume		43 ml
Condensate drain		Manually rotating
Mounting position		Vertical +/-5°
Series		D

Material housing		Die-cast zinc
Pneumatic connection, port 1		G3/8
Product weight		4.000 g
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Standard nominal flow rate		1.150 l/min
Pressure regulation range		2,5 bar ... 12 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		With pressure gauge
Bowl guard		Metal bowl guard
Design		Branching module Pressure switch On/off valve Filter regulator with pressure gauge Proportional standard mist lubricator Safety start-up valve
Grade of filtration		40 µm
Actuator lock		Rotary knob with detent
Size		Midi
