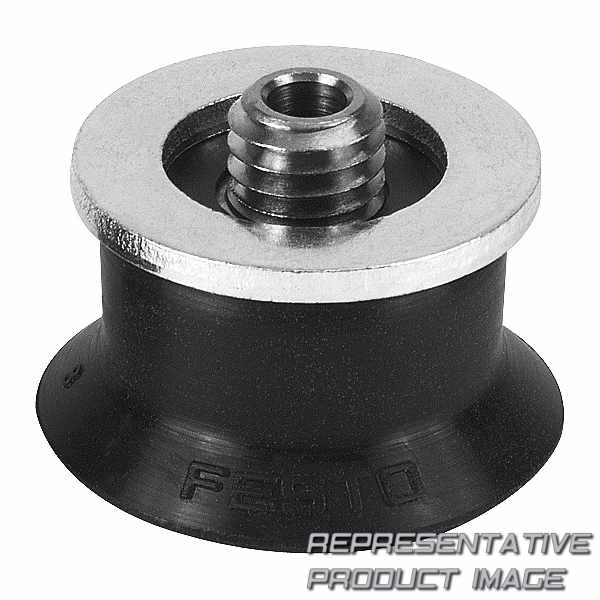

FESTO 189342 suction cup complete

Name: 189342 FESTO
Brand: FESTO
SKU: 685024-en-gbp
Price: 14.69 GBP
Availability: InStock

ESS-30-EN

£14.69

2 pcs. with 1 to 3 days delivery to United States

Specifications

Min. workpiece radius		50 mm
Suction cup diameter		30 mm
Position of connection		Top
Symbol		00991485
Suction cup shape		Round extra deep
Nominal operating pressure		-0,7 bar
Corrosion resistance class CRC		1 - Low corrosion stress
Ambient temperature		-10 °C ... 70 °C
Lateral force at nominal operating pressure		24,5 N
Type of mounting		Via vacuum port
Colour		Black
Material screw-in stud		Nickel-plated brass Galvanised and chrome-plated steel
Material suction cup		NBR

Nominal size		3 mm
Suction cup volume		2,12 cm³
Mounting position		optional
Correlation to suction-cup holder		Size 4
Operating pressure		0 bar ... 0,95 bar
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suitable for use with food		See supplementary material information
Holding force at nominal operating pressure		37,2 N
Product weight		9,2 g
Vacuum connection		M6
Shore hardness		60 +/- 5
Note on materials		RoHS-compliant
