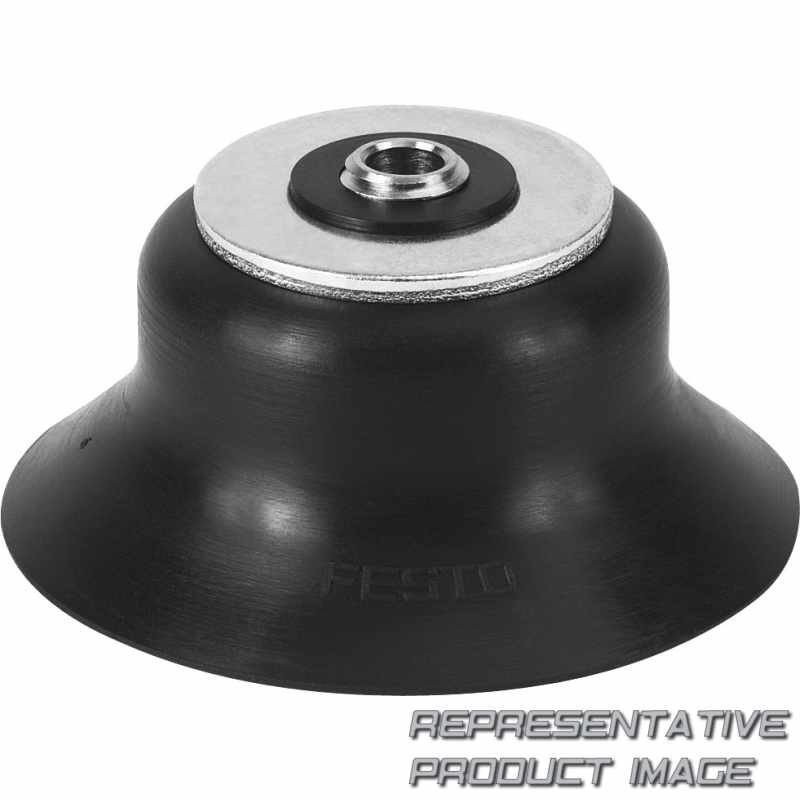

FESTO 189346 suction cup complete

Name: 189346 FESTO
Brand: FESTO
SKU: 674679-en-gbp
Price: 19.37 GBP
Availability: InStock

ESS-40-EN

£19.37

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material suction cup		NBR
Material screw-in stud		Nickel-plated wrought aluminium alloy Nickel-plated brass Galvanised and chrome-plated steel
Colour		Black
Type of mounting		Via vacuum port
Lateral force at nominal operating pressure		53 N
Ambient temperature		-10 °C ... 70 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Nominal operating pressure		-0,7 bar
Suction cup shape		Round extra deep
Symbol		00991485
Position of connection		Top
Suction cup diameter		40 mm
Min. workpiece radius		80 mm

Note on materials		RoHS-compliant
Shore hardness		60 +/- 5
Vacuum connection		M6
Product weight		16,9 g
Holding force at nominal operating pressure		67,6 N
Suitable for use with food		See supplementary material information
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		0 bar ... 0,95 bar
Correlation to suction-cup holder		Size 4
Mounting position		optional
Suction cup volume		4,04 cm³
Nominal size		3 mm
