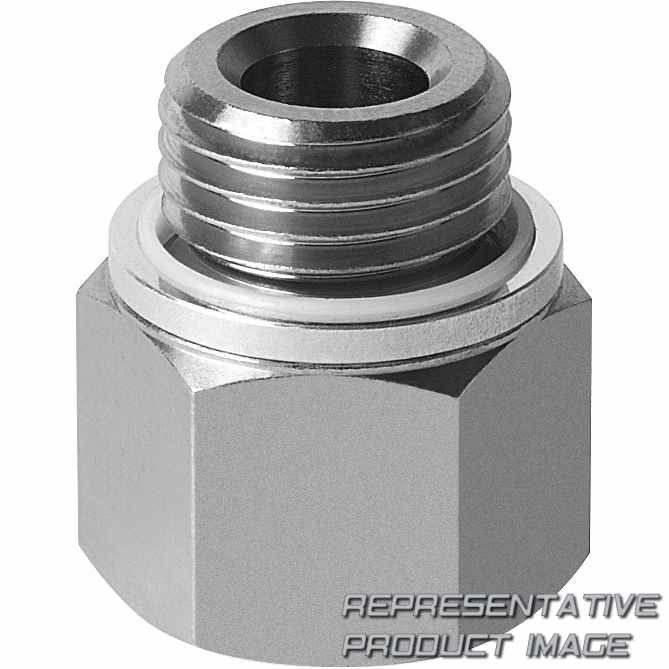

FESTO 189257 suction cup complete holder

Name: 189257 FESTO
Brand: FESTO
SKU: 663513-en-gbp
Price: 13.78 GBP
Availability: InStock

ESH-HE-5-G1/4

£13.78 ~~£15.03~~ -8%

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (ESH)	Suction cup complete holder
Retainer version (HE)	Male screw-in thread, connection on top

Suction cup connection (5)	M10
Vacuum connection (G1/4)	Threaded connection G1/4

Material retaining bracket		Tempered steel
Note on materials		RoHS-compliant
Suction cup mounting		M10
Product weight		24 g
Corrosion resistance class CRC		1 - Low corrosion stress
Correlation to suction-cup holder		Size 5
Mounting position		Vertical
Nominal size		7 mm

Material seals		Wrought aluminium alloy NBR POM Steel
Vacuum connection		G1/4
Type of mounting		Via male thread Via vacuum port
Ambient temperature		-10 °C ... 60 °C
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Design		Vacuum port on top
Volume		1,227 cm³
