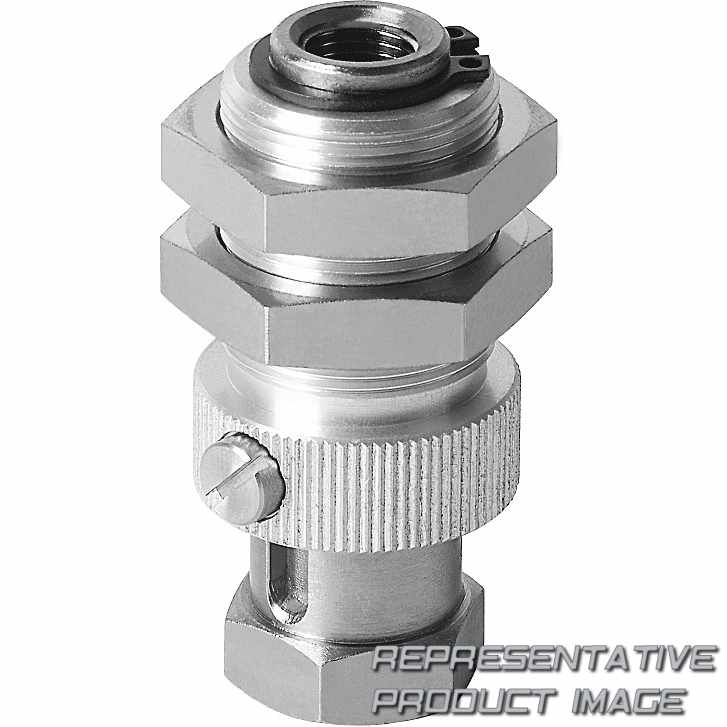

FESTO 189221 suction cup complete holder

Name: 189221 FESTO
Brand: FESTO
SKU: 679074-en-gbp
Price: 92.46 GBP
Availability: InStock

ESH-HC-5-G

£92.46

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (ESH)	Suction cup complete holder
Retainer version (HC)	Male thread, 2 nuts, connection on top, height compen- sation

Suction cup connection (5)	M10
Vacuum connection (G)	Threaded connection

Material retaining bracket		Aluminium Nickel-plated brass POM Tempered steel High-alloy steel
Vacuum connection		G1/8
Type of mounting		Via lock nut
Ambient temperature		-10 °C ... 60 °C
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Design		Vacuum port on top With height compensator
Volume		3,327 cm³

Note on materials		RoHS-compliant
Suction cup mounting		M10
Product weight		112 g
Corrosion resistance class CRC		1 - Low corrosion stress
Correlation to suction-cup holder		Size 5
Mounting position		Vertical
Height compensator for suction-cup holder		10 mm
