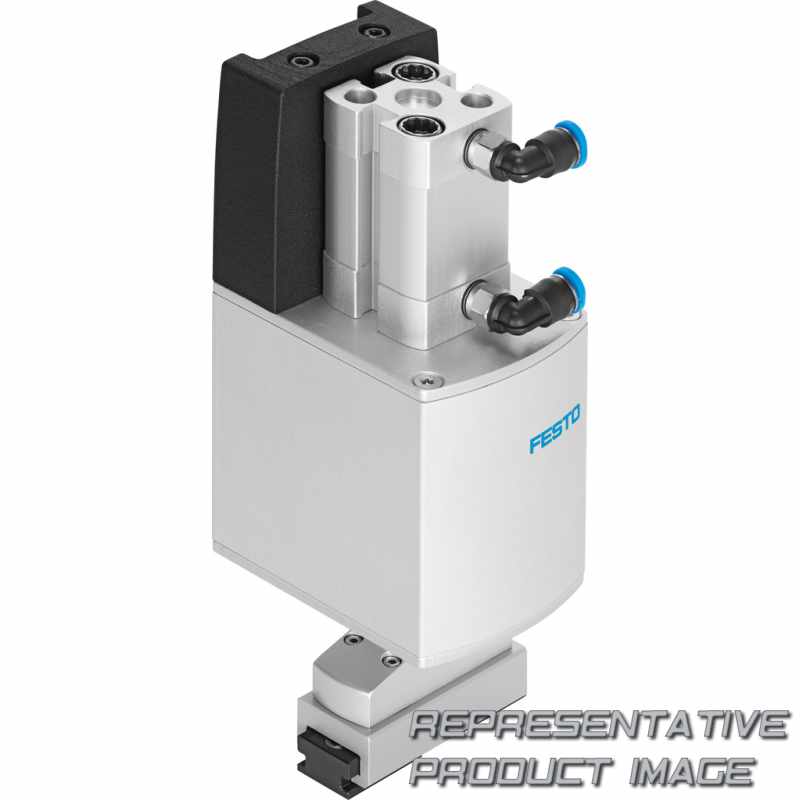

FESTO 4790698 rotary gripper module

Name: 4790698 FESTO
Brand: FESTO
SKU: 682523-en-gbp
Price: 3763.07 GBP
Availability: InStock

EHMD-40-RE-GP

£3,763.07

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (EHMD)	Rotary gripper module
Size (40)	40

Rotary module drive system (RE)	Electric
Gripper drive system (GP)	Pneumatic

Material housing		Anodised wrought aluminium alloy
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Type of mounting		Via dovetail slot
Electrical connection 1, connection type		Plugs
Max. torque at gripper Mz static		0,7 Nm
Max. torque at gripper Mx static		0,7 Nm
Gripping force per gripper jaw		5 N ... 35 N
Ambient temperature		0 °C ... 40 °C
Relative air humidity		0 - 85%
CE marking (see declaration of conformity)		To UK instructions for EMC
KC mark		KC-EMV
Nominal voltage DC		24 V
Insulation protection class		B
Max. drive output speed		240 rpm
Rotor position sensor, encoder measuring principle		Optical
Rotor position sensor		Incremental encoder
Type of motor		Stepper motor
Position detection		Rotation: motor encoder Gripping: slot for proximity switch
Mounting position		optional
Stroke per gripper jaws		5 mm
Size		40

Material cover		PA
Pneumatic connection		QS-4
Electrical connection 1, connector system		Connection pattern F1
Product weight		577 g
Max. torque at gripper My static		1,5 Nm
Max. output torque		0,3 Nm
Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi)		25 N
Degree of protection		IP20
Storage temperature		-20 °C ... 70 °C
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Approval		RCM trademark
Nominal motor current		0,9 A
Duty cycle		100%
Operating pressure		1,5 bar ... 8 bar
Rotor position encoder interface		RS422 TTL AB channels + zero index
Referencing		Rotation: encoder index
Gripper function		Parallel
Design		Electric rotary drive Pneumatic gripper
Number of gripper jaws		2
Rotation angle		Infinite
