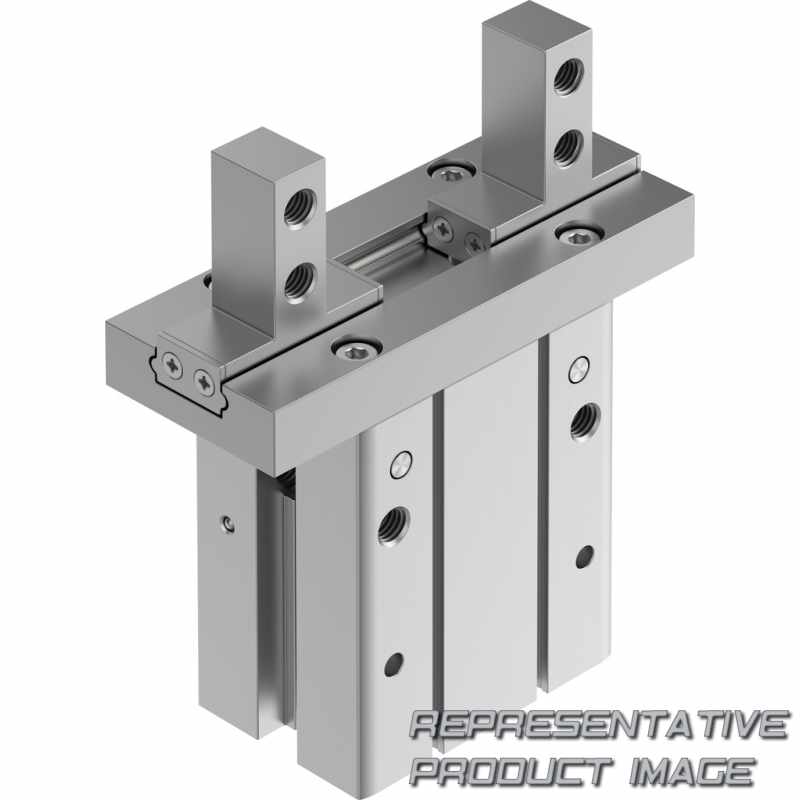

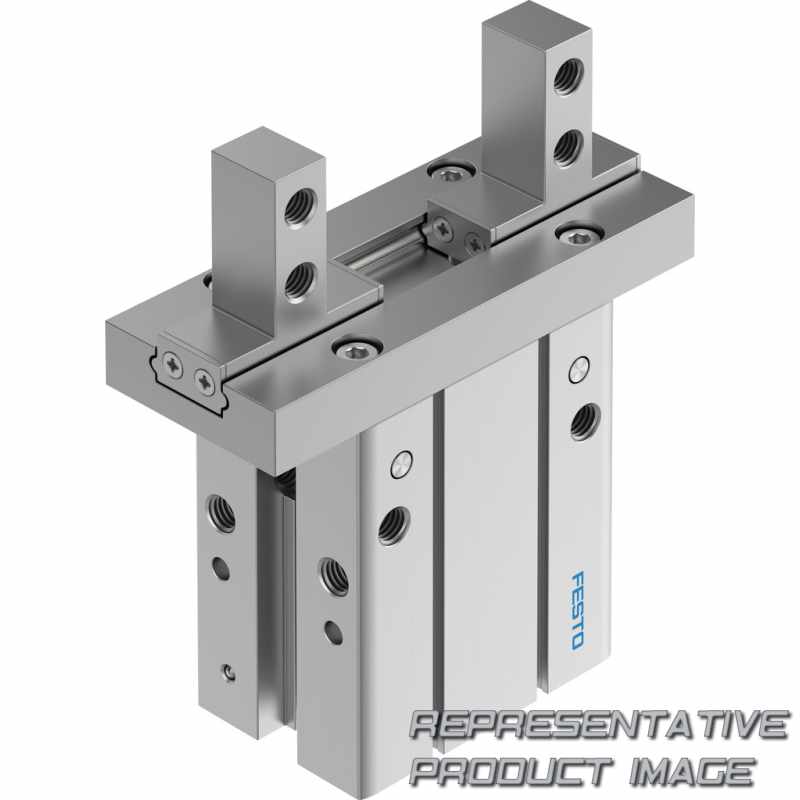

FESTO 8116898 parallel gripper

Name: 8116898 FESTO
Brand: FESTO
SKU: 683891-en-gbp
Price: 696.96 GBP
Availability: SoldOut

DHPC-40-A-B-1

£696.96

Limited stock only available on quotation

Specifications

Gripping force backup	None
Pneumatic connection (B)	Bottom
Dust protection	None
Type of mounting gripper fi nger (1)	Mounting holes at the side

Material gripper jaws		High-alloy stainless steel
Note on materials		RoHS-compliant
Type of mounting		Direct mounting via through-hole Direct mounting via thread On mounting frame Via through-hole and dowel pin Via female thread and dowel pin Either:
Max. torque at gripper Mz static		2,3 Nm
Max. torque at gripper Mx static		2,3 Nm
Mass moment of inertia		15,49 kgcm²
Gripper force per gripper jaw, opening, 0.6 MPa (6 bar, 87 psi)		388,6 N
LABS (PWIS) conformity		VDMA24364-B2-L
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Max. mass per external gripper finger		1.100 g
Min. opening time at 0.6 MPa (6 bar, 87 psi)		158 ms
Operating pressure		14,5 psi ... 116 psi
Total gripper force, opening, 0.6 MPa (6 bar, 87 psi)		777,2 N
Position detection		Via proximity switch
Design		Connection direction downwards Lever Side mounting method for gripper fingers Force pilot operated motion sequence
Mode of operation		Double-acting
Number of gripper jaws		2
Rotationally symmetrical		≤ 0,2 mm
Max. angular gripper jaw backlash ax, ay		0 deg
Stroke per gripper jaws		15 mm

Material housing		Anodised aluminium
Pneumatic connection		M5
Product weight		1.408 g
Max. torque at gripper My static		4,5 Nm
Max. force on gripper jaw Fz static		245 N
Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi)		358,6 N
Ambient temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		0 - No corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Min. closing time at 0.6 MPa (6 bar, 87 psi)		153 ms
Max. operating frequency of gripper		1 Hz
Total gripper force, closing, 0.6 MPa (6 bar, 87 psi)		717,2 N

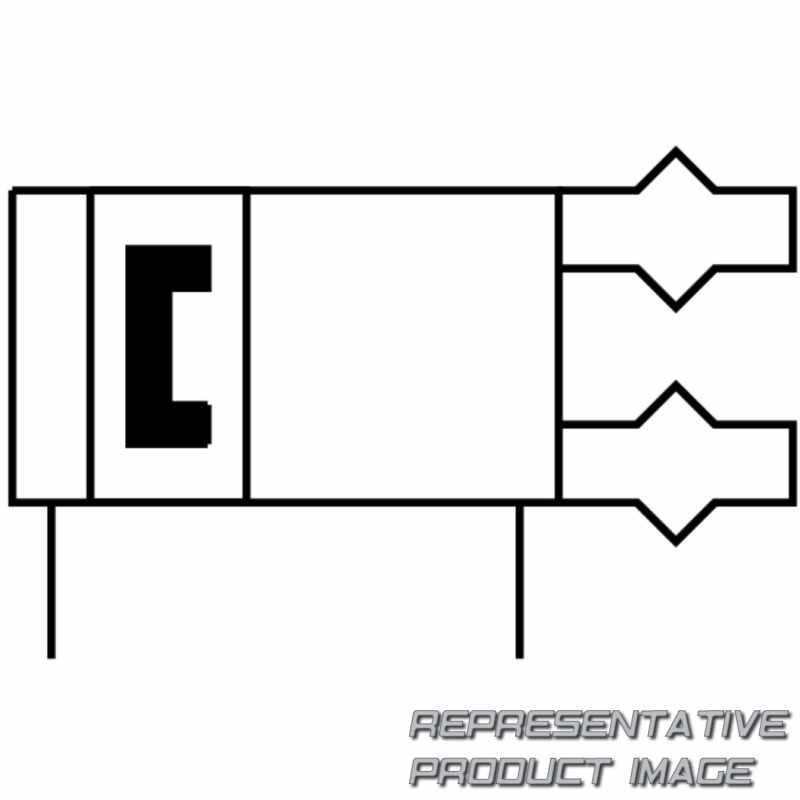

Symbol		00991894
Guide		Ball guide
Gripper function		Parallel
Mounting position		optional
Repetition accuracy, gripper		≤ 0,02 mm
Max. gripper jaw backlash Sz		0 mm
Max. replacement accuracy		0,2 mm
Size		40
