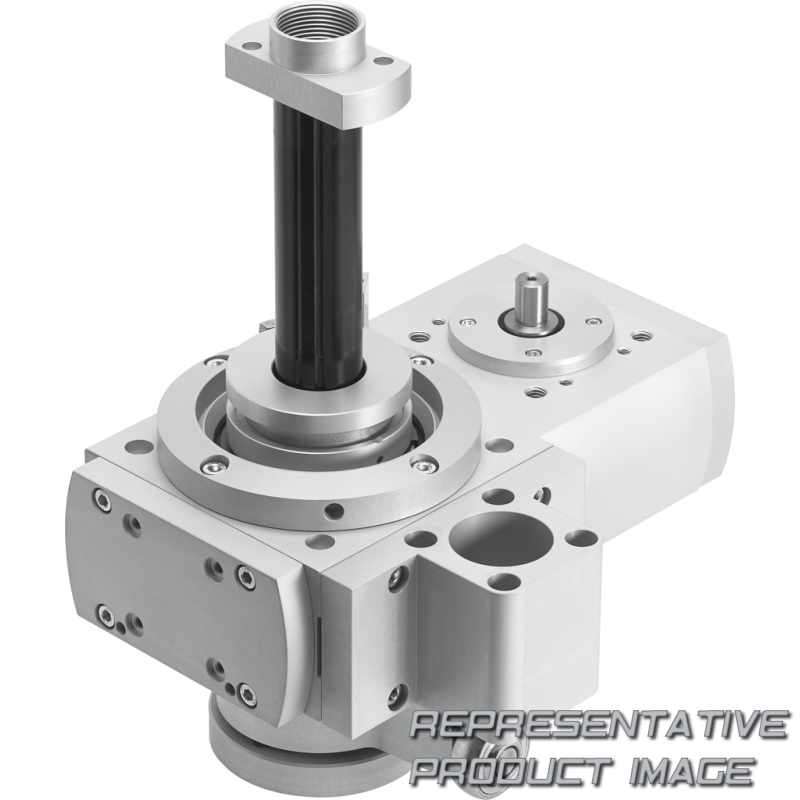

FESTO 1098558 rotary lifting module

Name: 1098558 FESTO
Brand: FESTO
SKU: 672400-en-gbp
Price: 4580.32 GBP
Availability: SoldOut

EHMB-32-100

£4,580.32

Limited stock only available on quotation

Specifications

Series (EHMB)	Rotary/lifting module
Size (32)	32

Stroke [mm] (100)	100

Material toothed belt		Polychloroprene with glass fibre
Material cover		Wrought aluminium alloy Anodised
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Frictional torque independent of load		< 0,5 Nm
Max. drive torque		6,7 Nm
Max. drive input speed		900 rpm
Gear unit ratio		3:1
Type of gear unit		Toothed belt gear unit
Toothed-belt pitch		5 mm
Size		32
Drive pinion diameter		12 mm

Material housing		Wrought aluminium alloy Anodised
Material drive shaft		High-alloy stainless steel
Product weight		6.112 g
Max. feed force Fx		750 N
Ambient temperature		-10 °C ... 60 °C
Max. drive output speed		300 rpm
Design		Electromechanical rotary/lifting module With toothed belt
Mounting position		optional
Rotation angle		Infinite
Working stroke		0 mm ... 100 mm
